ESE Lightning Arrester for Building Arrester ESE Lighting Rod ESE Air Terminal
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price Lighting Arrester Copper Lightening Conductor Detakom Ese Lightning Arrester With CounterNegotiableMOQ: 1 -
Network Cat6 Ethernet Signal SPD 48V 1000M POE RJ45 Surge Protector DeviceNegotiableMOQ: 1
-
Type 2 DK-20 2P 25kA Lightning Surge Protection Power Surge Arrester 220v/385v Surge Protection DeviceNegotiableMOQ: 1
-
Voltage Surge Arrester Device Surge Protective Device AC Photovoltaic Lightning Protector Low-voltage ArresterNegotiableMOQ: 1
-
DK-JS6 Waterproof IP67 Surge Counter Digit Outdoor 6 Digitals Lightning Strike CounterNegotiableMOQ: 1
Installation Instructions
Installation Guide
Installing DK8-BX10 ESE lightning rod shell comply with national standard of P.R China(GB50057-94)-Code for design protection of structures against lightning.The actual construction shall comply with National Standard of P.R China(GB 50169-92)Code for construction and acceptance of grounding connection electric equipment installation engineering. Do not install or test the lightning rod in a thunderstorm weather!
a.Please notify us the technical parameters of your lightning rod mast when ordering, so that the factory can select the right interconnection splice for you to install components successfully.
b.The thickness of lightning rod’s sleeve shall not less than 4mm, which can be used as a down-conductor. There shall be two points symmetric connecting the earth electrode.
c.When the structure’s lightning protection system has more than 1 down-conductor, breaking of contact with insulation protection for each down-conductor is recommended. And the breaking of contact shall be set at 1.5～1.8m high from ground of the conductor.

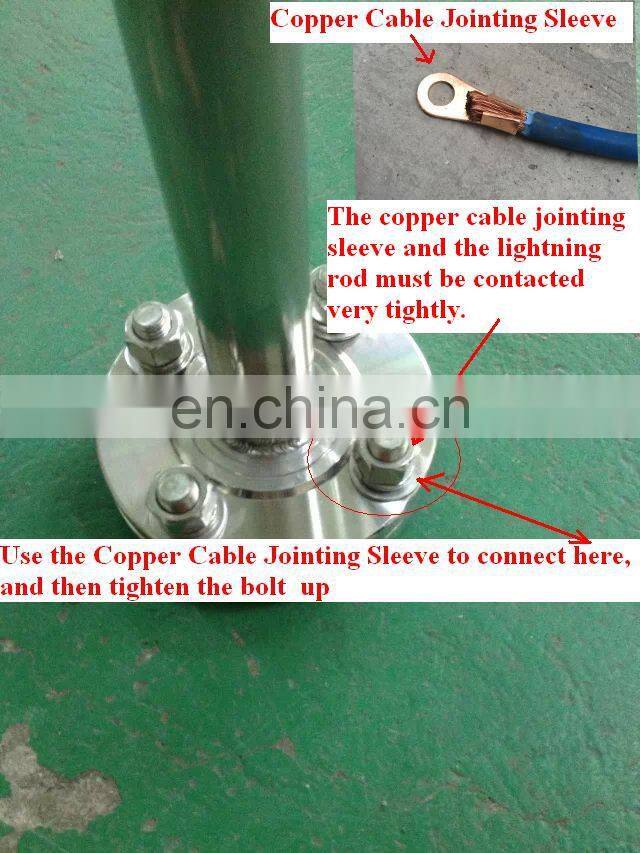

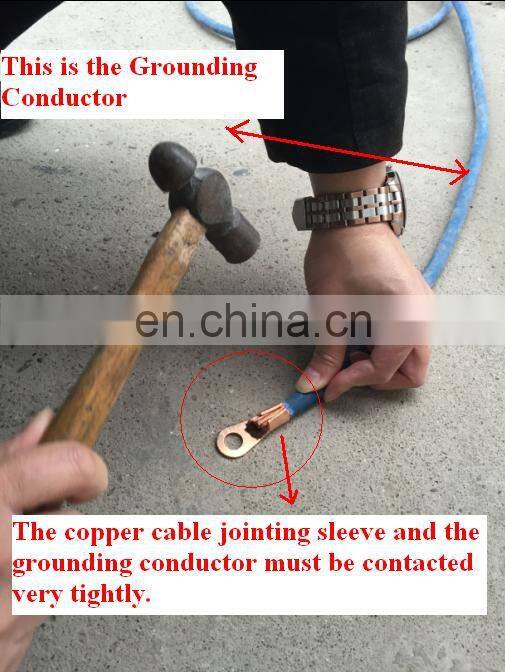

d.The joint between lightning rod and down-conductor shall be welded.

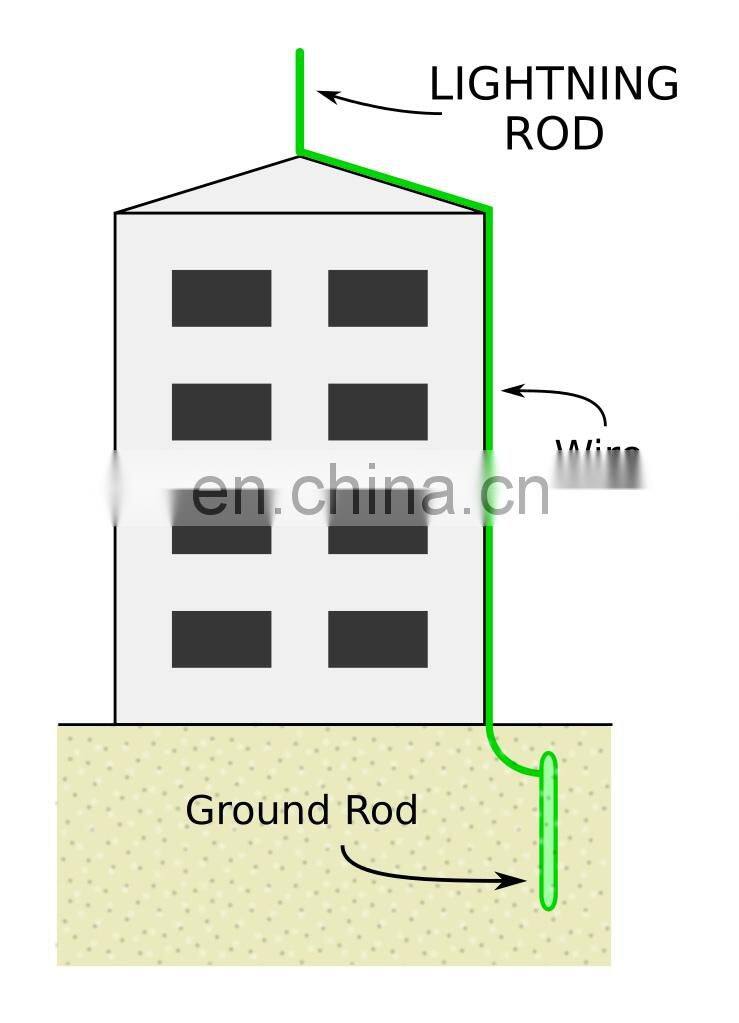

e.The construction order for the earth-termination system of lightning rod shall be from top to bottom. The common earthing system shall be installed first, and then come to the down-conductor, and the lightning rod is the last step.
f.Do not touch the main capture head and initiative discharge fang when installing!
g.The product design service life is 20 years.
Product Description
Introduction

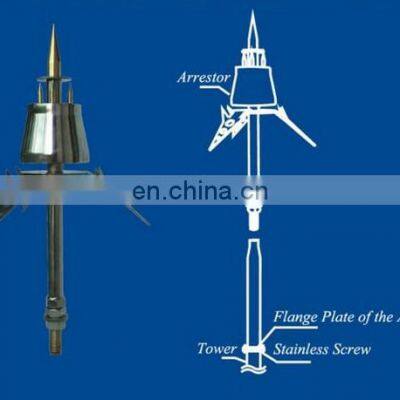

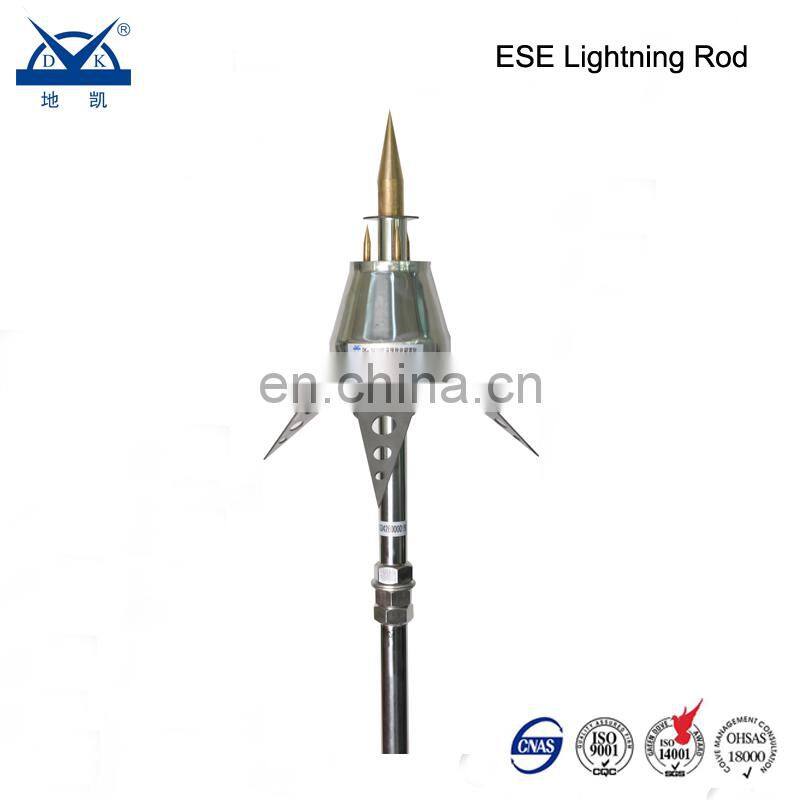

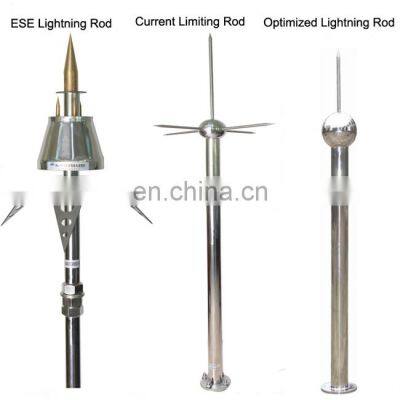

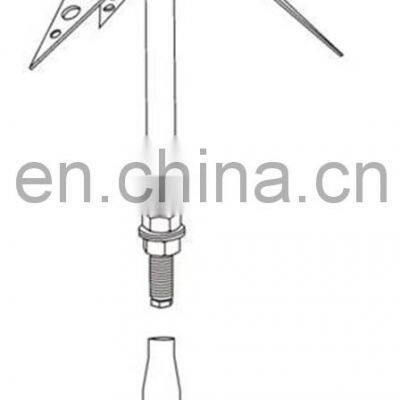

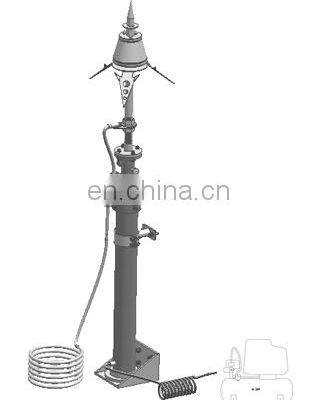

DK8-BX10 ESE(Early Stream Emission) Lightning Rod is composed of the following sections:
a. Main receiving lightning point:It is made up of copper alloy. It connects from downlead terminal to receiving lightning point forming a uninterrupted path to convey the lightning current to the ground.It is fixed in a lightning rod(tower)pole more than 2 meters high.
b. Discharge strike spark board;generate spark.
c. Active discharge point:collect the electric energy.
d. Waterproof stainless steel box:store the electrostatic field energy.
e. Side point of receiving lightning: it is made up of stainless steel. It can convery surrounding lightning current to the ground directly.
f. Stainless steel sleeve.
g. Install fasteners.
h. Down lead connection point.
Specification
item | value |
Place of Origin | China |
Brand Name | DK |
Material | Stainless Steel |
Keyword | Thunder Lightning Arrester |
Product name | ESE Lighting Rod |
CERTIFICATE | ISO9001/ CE |
Feature | Suspension Arrester |
Height(m) | 1.3m |
Function | ESE Air Terninal |
Weight | 12kg |
Payment Terms | T/T |
MOQ | 1 Set |
Company Profile
LABORATORY AND TESTING
◆Strict screening and assessment of raw material suppliers, screening and inspection before storage
◆Automatic machine + manual double inspection before products are shipped, to ensure product consistency
Packing & Delivery
FAQ
Q1:who are we?
A1:We are based in Guangxi, China, start from 1989,sell to Oceania(25.00%),Western Europe(10.00%),EasternAsia(10.00%),Mid East(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),NorthAmerica(5.00%).
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
There are total about 101-200 people in our office.
Q2:Which certificate do you have for your equipment?
A2:Wehave established a complete quality management, supply chain and after-sales service system. Continuously introduce 6S international advanced concepts in management, and have successively passed ISO9001,CNAS National Laboratory, CQC certification,CE certification, Rohs certification.
Q3:how can we guarantee quality?
A3:Strict screening and assessment of raw material suppliers, screening and inspection before storage Always a pre-production sample before mass production; Automatic machine +manual double inspection before products are shipped, to ensure product consistency.
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
A5: For new customers, there is a small discount, but when the value of the order is increased, we will provide a larger discount.For previous customers, we are happy to provide a discount for your loyalty.
Q6:what can you buy from us?
Q6:what can you buy from us?
A6:Surge Protector,Lightning Rod,PV Supporting Equipments,power cord,signal protection
Q7:why should you buy from us not from us not from other suppliers?
A7:Guangxi Dikai Sci & Tech Co., Ltd.has been specialized in producing lightning protective products, researching development of lightning protective technology, consulting lightning protection service, and engineering lightning protection cases for 30 years.
Q8.what services can we provide?
A8:Accepted Delivery Terms:FOB,CIF,EXW,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Western Union,Cash; Language Spoken:English,Chinese,Spanish.
Q9.Can I only buy some spare parts from you?
A9:Of course, we can sell everything from spare parts to finished products.
Q10.Can you can design the equipment according to our size?
A10:Of course, we can customize any product according to customer requirements, and we can all provide design solutions and solutions.
Should you have any questions, please do not hesitate to contact us.
