Specifications
Coax surge protectors protect valuable communications equipment in both wired and wireless networks.Due to its low cost and superior RF performance, this unit is ideal for IEEE 802.11b and 802.11g Wireless LAN applications, as well as ISM, MMDS, Cellular, and PCS applications. Since this protector will pass DC, it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs.

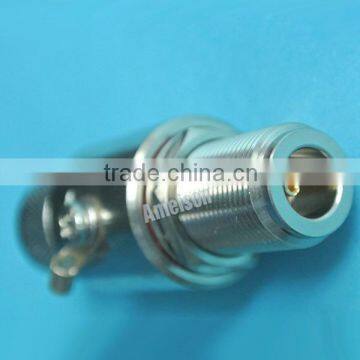

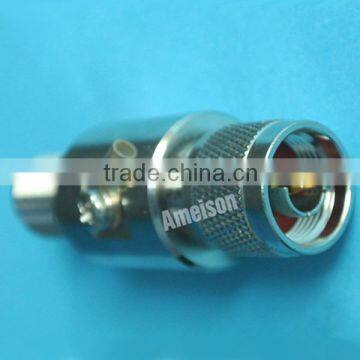

2.4G Lightning Arrester(lightning protector)
Model:AMXB-2400
Product name:N discharge tube surge arrester
Technical indicators Specification
Features:
Competitively priced
High quality construction
No gas tube element to replace
Multi-Strike capability
Bi-Directional protection
Applications:
IEEE 802.11b, 802.11g and 802.11n Wireless LAN applications
2.4 GHz MMDS Band
IEEE 802.16 and 802.20
Impedance(Ω) |
50 |
|
Contact resistance( MΩ) |
Inner conductor(MΩ) |
≤0.4 |
Outer conductor(MΩ) |
≤0.2 |
|
Insulation Resistance (MΩ) |
≥1x104 |
|
Pressure AC(V min) |
4000V 1min No breakdown and no arcing phenomenon |
|
Frequency Range(MHz) |
DC~2500 |
|
V.S.W.R(MHz) |
≤1.20 |
|
Insertion Loss(dB) |
≤0.2 |
|
Rated Power(W) |
200 |
|
Initial discharge voltage(V) |
230 |
|
Peak discharge voltage(V(1×40μS)) |
1000 |
|
Peak discharge current(KA) |
20 |
|
Weight(g) |
125 |
|
