Voltage Surge Arrester Device Surge Protective Device AC Photovoltaic Lightning Protector Low-voltage Arrester
Products Description
DK-60 power supply series modular surge protective device(SPD) is designed according to IECIEC61643 standard. It is accordance with the criterion of Low-voltage Surge Protective Devices-Part 1: Surge Protective Devices Performance Requirements and Test Method of Low-voltage Power Distribution System. With good sealing, it is designed as module and 35mm DIN-Rail Mounting. With working indication window, temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can
release automatically to avoid fire danger when it breaks down. With remote alarm connector, it is convenient for remote monitoring. The main module and the base are replaceable. The lightning protection modes is L-PE, N-PE (4P) or L-N-PE (3+1).
release automatically to avoid fire danger when it breaks down. With remote alarm connector, it is convenient for remote monitoring. The main module and the base are replaceable. The lightning protection modes is L-PE, N-PE (4P) or L-N-PE (3+1).
Applicable Power Supply System | TT, TN, IT | ||||||
Maximum Continuous Operating Voltage Uc | AC 385V/275V | ||||||
Nominal Discharge Current (8/20µs) | 30kA | ||||||
Maximum Discharge Current (8/20µs) | 60kA | ||||||
Voltage Protection Level Up | ≤1.8kV | ||||||
Leakage Current | ≤20uA | ||||||
Respond Time tA | ≤25ns | ||||||
Indication Method | Indication Window, Turn Red When Malfunction | ||||||
Remote Alarm Function | Optional | ||||||
Maximum Connection Wire Range | BVR 35mm2 | ||||||
Method of Installation | 35mm Din Rail Mounted | ||||||
Material of Shell | PC | ||||||
Flame Retardant Rating of Outer Shell | UL94-V0 | ||||||
Protection Level of Outer Shell | IP20 | ||||||
Working Temperature | –25~＋70℃ | ||||||
Relative Humidity | ≤95% | ||||||
Item No. are available
Item Series | Protection Mode | Installation Location | Dimension(mm) | Item No |
DK-60 | L-PE,N-PE(4P) L-N-PE(3+1) | Low-voltage Three Phase Power Distribution Cabinet | DK-60 4P DK-60 3+1 | |
L-N-PE(1+1P) | DK-20(1+1) | |||
L-PE,N-PE(2P) | Low-voltage Single Phase Power Distribution Cabinet | 54*90*66mm | DK-60 2P | |
L-N-PE(3+1P) | DK-20(3+1) |

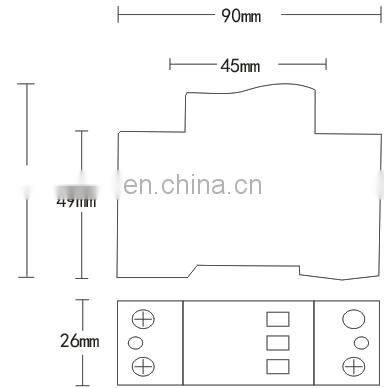

External View

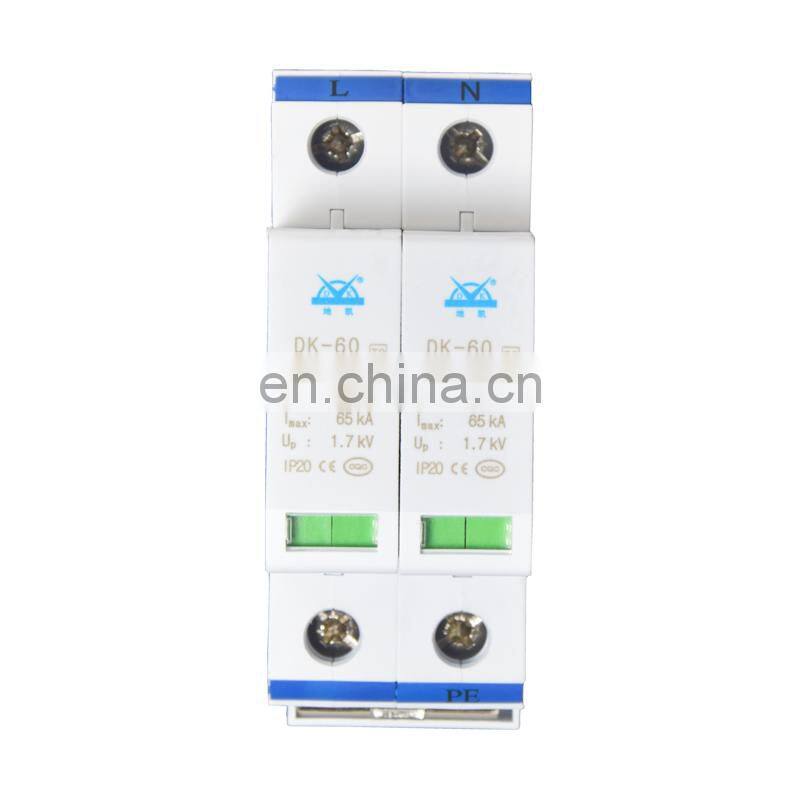

DK-60 2P

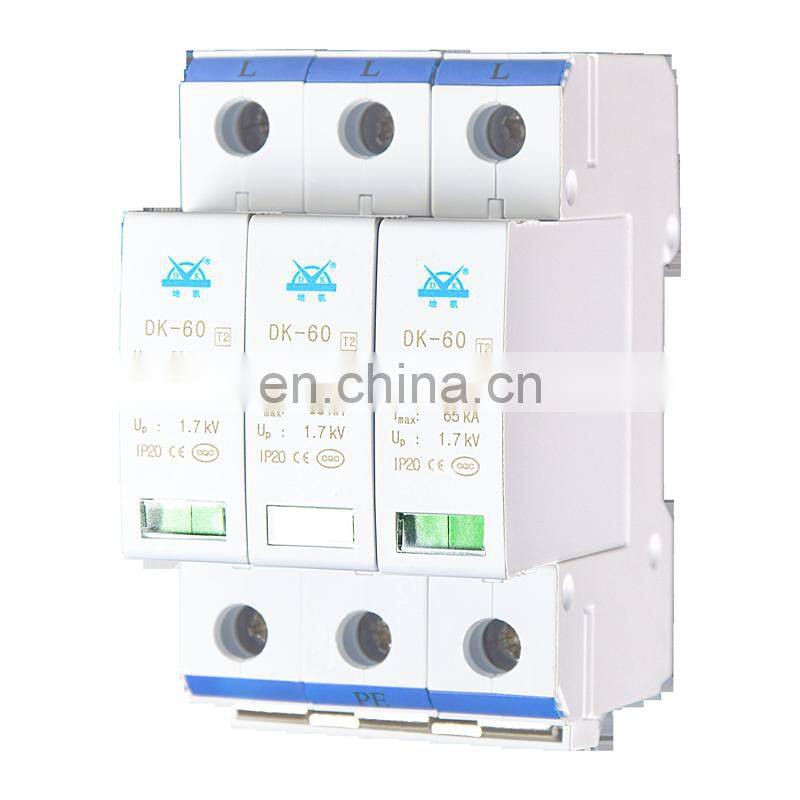

DK-60 3P

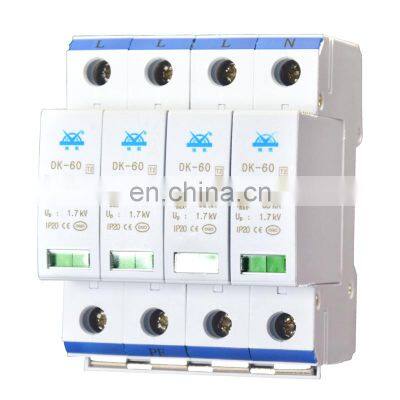

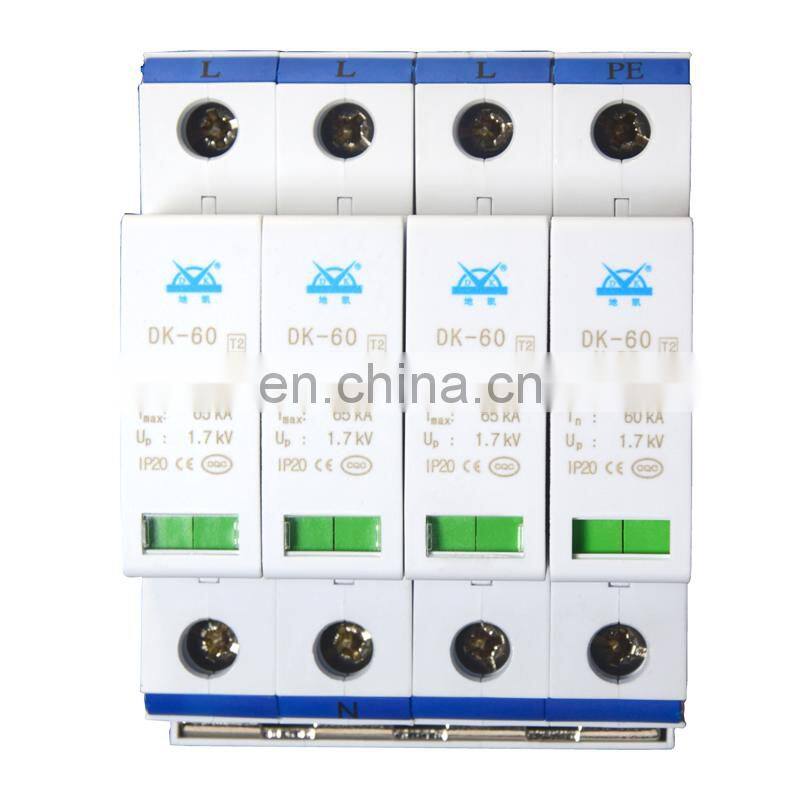

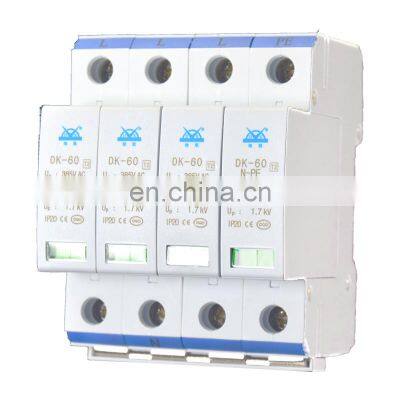

DK-60 4P
Application Scope
It is suitable for the low voltage power distribution cabinet/box of buildings, and the equipments connected between three(single) phase AC power supply and system in parallel.
