Double shaft mixer
simple introduction of horizontal double-shaft mixer;
this machine is used to stir the mixture of raw materials.it is the preparatory work for moulding machie,its purpose is to evenly stir the mixture and make it more densely.This dual-shaft mixer is mainly used for various powdery materials, such as clay, shale, cola gangue and fly ash, etc, which can well stir materials. It is the important equipment in brick making productio
Technical Features of double shaft mixer:
This dual-shaft mixer is composed of shell, screw shaft assembly, drive unit, piping assembly, cover and chain guard, etc. Specific features as follows:
1.As the main support of dual-stage mixer, the shell body is welded with sheet materials and profile steel and assembled with other parts. This shell completely seal up without ash leakage.
2.Screw shaft assembly is key component of this mixer, which is made up of left-and-right rotating screw shaft,bearing block, bearing holder, bearing cap, gear, chain wheel, oil cup and other parts.
3.Piping assembly for adding water is formed by take-over, tie-in and muzzle. With simple structure, the stainless steel muzzle is easy to change and antiseptic. Through handle the manual control valve on the pipe can adjust moisture content of wet ash.
main technical parameters of double shaft mixer;
| parameter/type | SJ450 | SJ500 | SJ550 | SJ600 | |
| stirs thick liquid leaf diameter(mm) | 450 | 500 | 550 | 600 | |
| production capacity(m3/h) | 14-20 | 20-25 | 25-30 | 45-60 | |
| roating speed of mainshaft (r/min) | 49 | 49 | 46 | 60 | |
| decelerator models | JZQ500-IV-2Z | JZQ500-IV-2Z | JZQ650-III-2Z | JZQ650-III-2Z | |
| motor | type | Y160L-4 | Y180W-4 | Y180L-4 | Y225M-4 |
| power(kw) | 15 | 18.5 | 22 | 45 | |

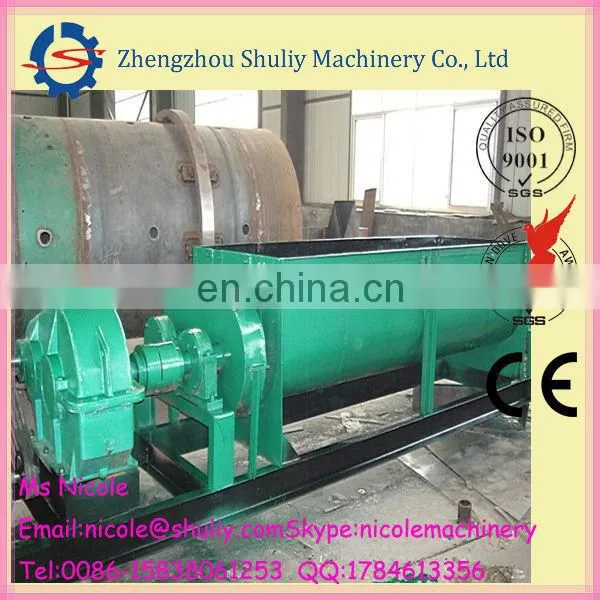

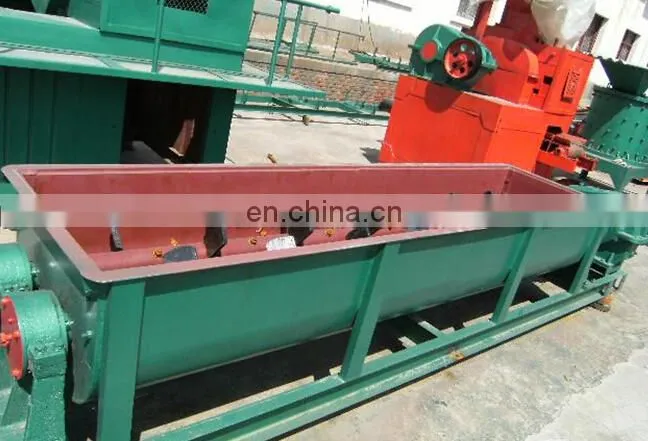

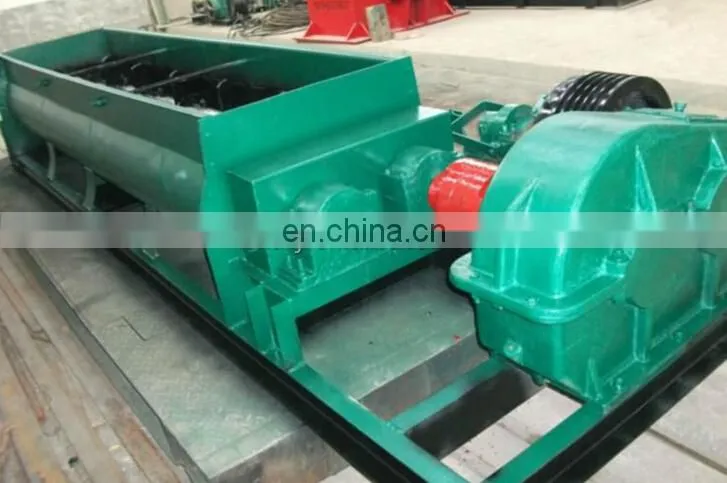

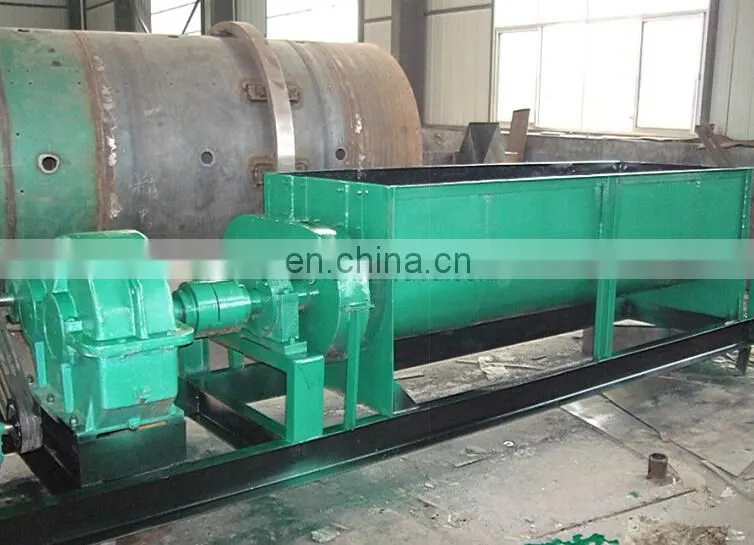

Machine for show
