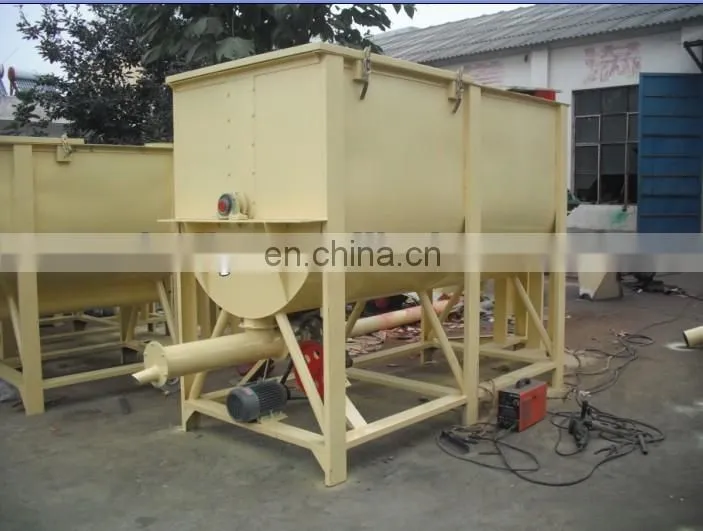

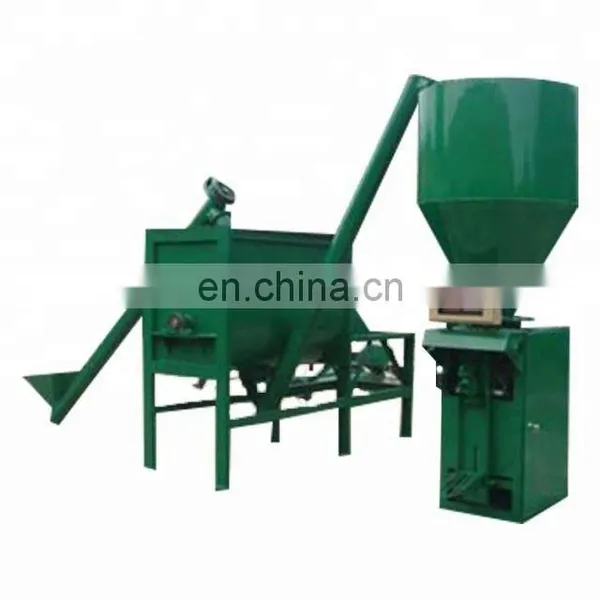

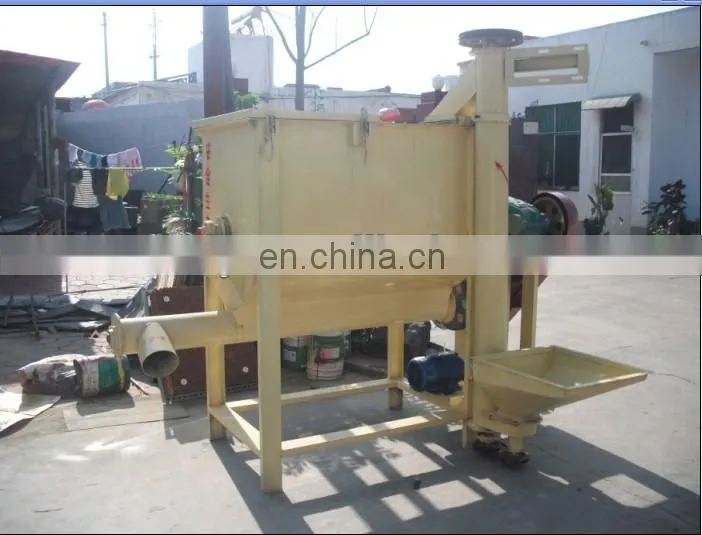

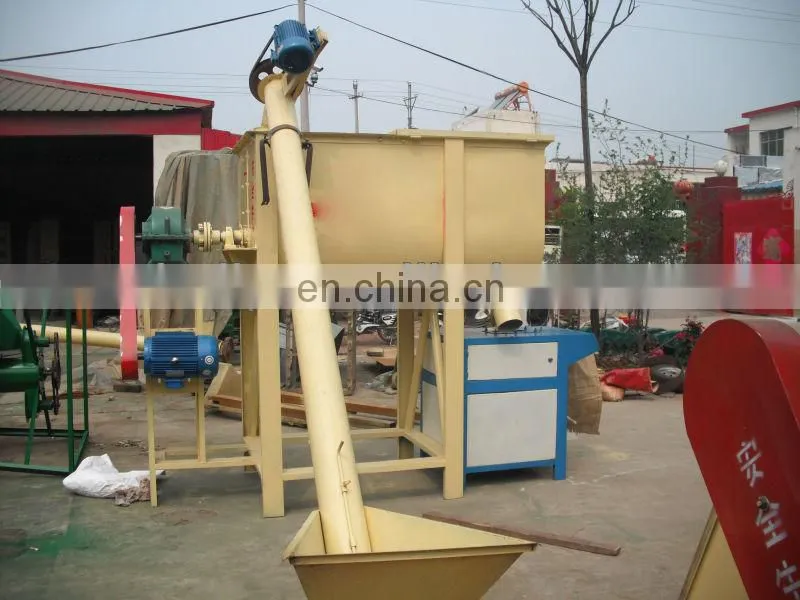

Chemistry ribbon mixer machine
Main Application of ribbon mixer machine:
WLDh- Horizontal Ribbon Mixer is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.
Working principle of ribbon mixer machine:

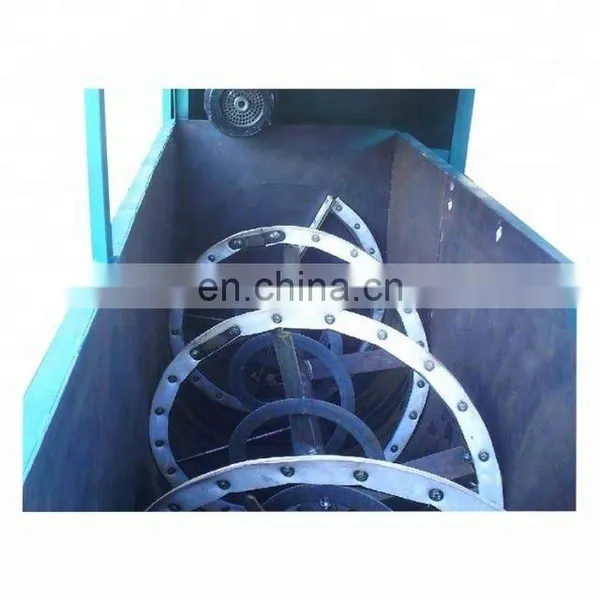

WLDH series mixer is mainly comprised of mixing barrel , spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Technical Parameters of ribbon mixer machine:
| Model | Barrel Volume (L) |
Loading Volume (L) |
Mixing Time (min) |
Stir Motor (kw) |
Weight (kg) |
WLDH-100 |
100 |
30-60 |
8-20 |
1.5-4 |
320 |
WLDH-300 |
300 |
100-180 |
8-20 |
3-5.5 |
510 |
WLDH-500 |
500 |
200-300 |
8-20 |
4-11 |
920 |
WLDH-1000 |
1000 |
400-600 |
8-20 |
7.5-15 |
1450 |
WLDH-1500 |
1500 |
600-900 |
8-20 |
11-18.5 |
1950 |
WLDH-2000 |
2000 |
800-1200 |
8-20 |
18.5-30 |
3160 |
WLDH-3000 |
3000 |
1200-1800 |
8-20 |
18.5-30 |
3300 |
WLDH-4000 |
4000 |
1600-2400 |
8-20 |
22-37 |
3620 |
WLDH-6000 |
6000 |
2400-3600 |
8-20 |
37-55 |
5400 |
WLDH-8000 |
8000 |
3200-4800 |
8-20 |
37-55 |
6880 |
WLDH-10000 |
10000 |
4000-6000 |
8-20 |
45-75 |
7900 |
