Product Description

Rubber Powder Production Line

Introduction of Rubber Powder Production Line

At present, there are a large number of waste tires discarded every year around the world, which has huge influence on environment.Through crushing and grinding these waste tires, it can be realized to the recycling and making use of waste rubber, and develop the potential resource which bring benefits for people.The Rubber Powder Production Line, we have different solutions for different tyre size, here we share Rubber Powder Making Line about 1200mm tyre, and it has high output, for 26 mesh rubber powder, the capacity can reach 36T/day.

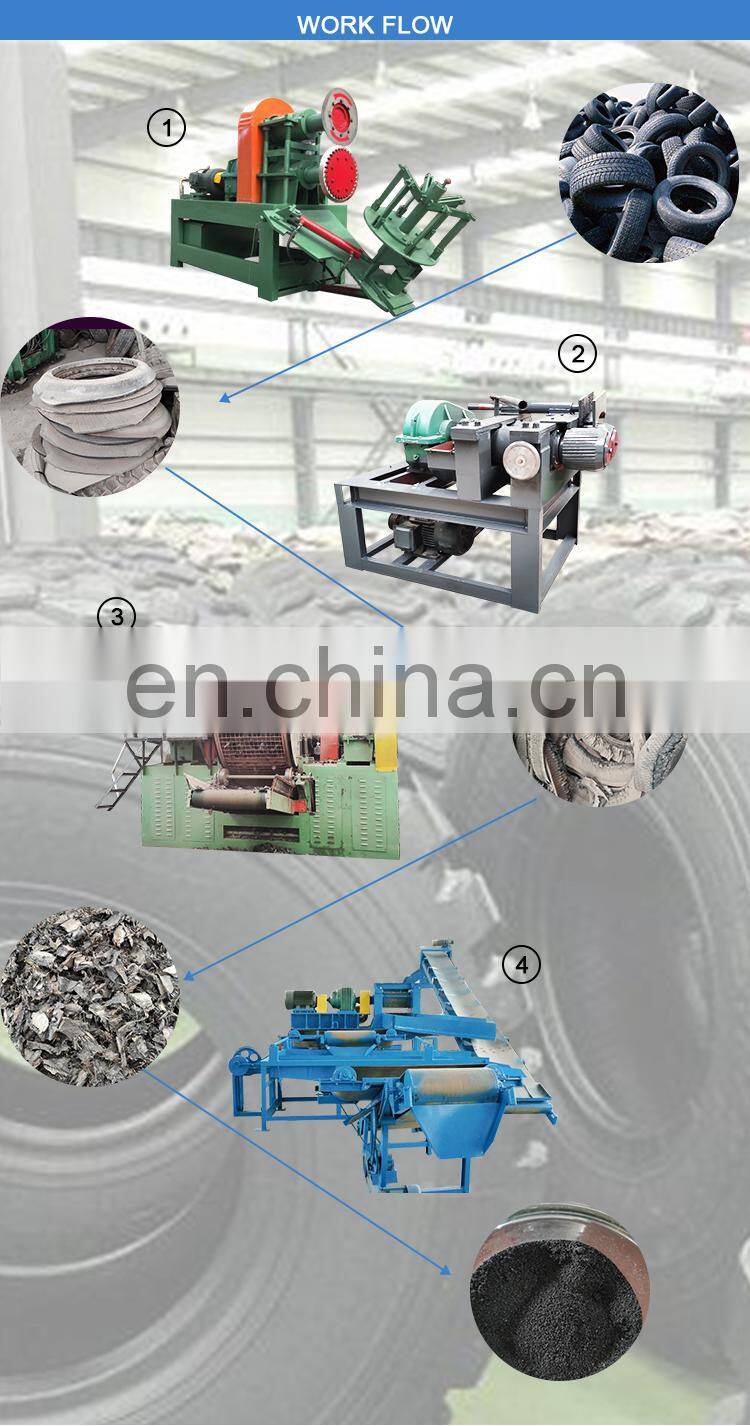

Work Flow of Rubber Powder Production Line

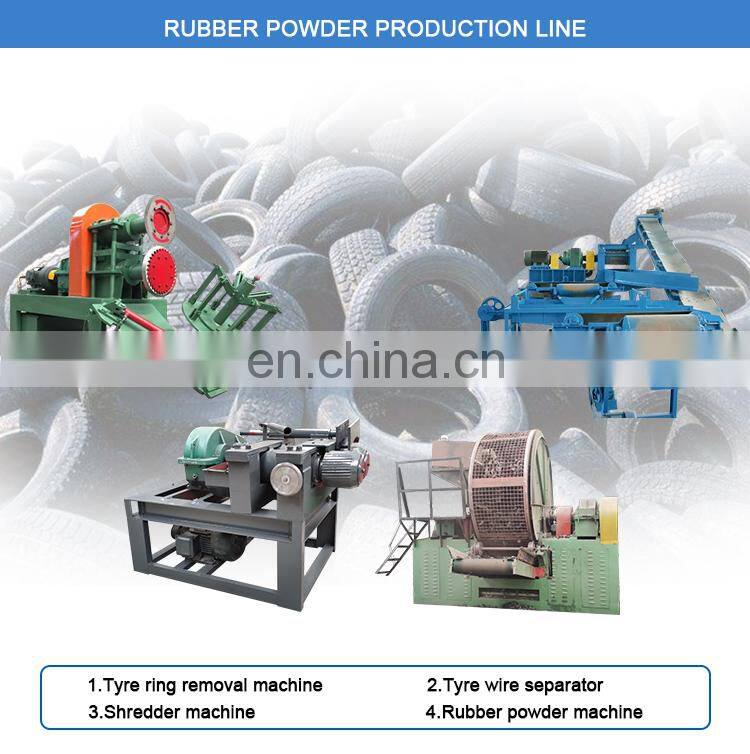

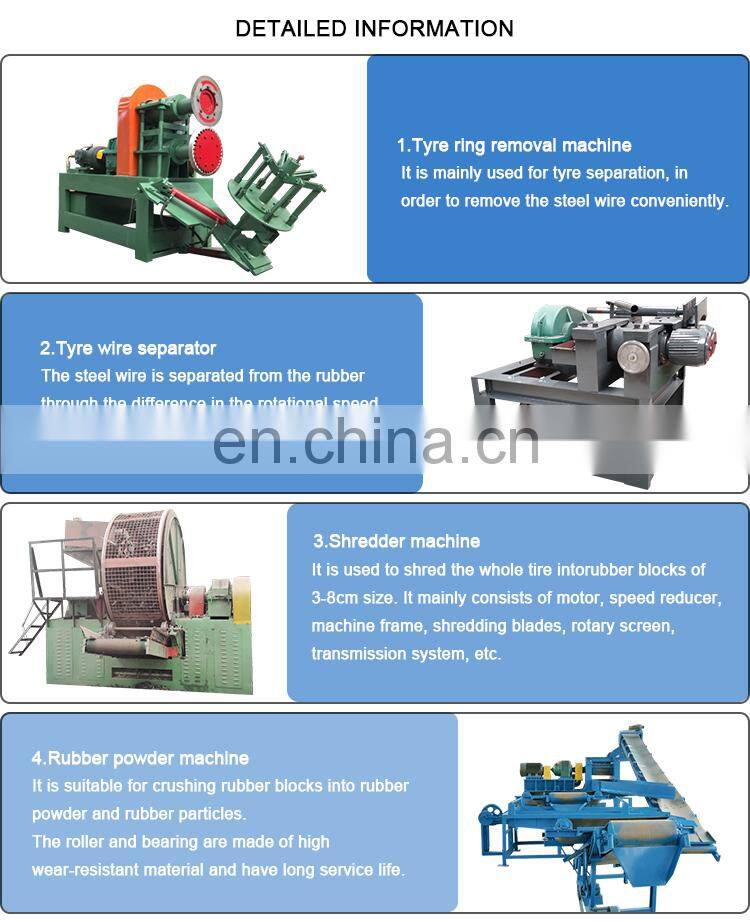

This kind of Rubber Powder Production Line mainly includes Tire ring removal machine, Steel wire separator, Shredder machine and Rubber grinding machine.

Characteristics of Rubber Powder Production Line

1.Environmentally friend: prevent slippery, achieve shock absorption, wear-resistant, sound insulation, heat insulation, water resistant with none toxic and long service life;

2.Compact structure and save labors: the rubber powder production line only need 3-4 persons, greatly improve the working efficiency;

3.Strong Flexibility: our machine can adapt different sizes of waste tires, and we can design suitable production line according to customers’ requirements;

4.High level quality: after processing, steel is completely separated and fiber can be separated up to 99% or above.The finish product is high and competitive in the market.

The Parameter of Rubber Powder Grinder Machine

Model	SL350	SL400	SL450	SL560	SL560D
Length of roll diameter(mm)	300*500	400*600	450*760	560800 510800	560*800
Liner velocity of front roller(m/min)	26.2	34.5	38.0	38.6	42.5
Roller speed ratio	1:2.5	1:2.5	1:2.5	1:2.5	1:2.5
The biggest roller spacing(mm)	8	8	8	8	8
Motor power(kw)	30	45	55	75	132

Application of Rubber Powder Production Line

1.The raw material could be waste tire of bicycles, tractors and cars, sole, gasket, sealing sheet, conveyor belt etc.

2.The finished product(tire powder or granule) is widely used in:

Playground: runway, playground, swimming ground and garden path, bowling alley, sidewalk, kindergarten playground and casino, tennis and basketball court.

Automobile industry: floor mats for belts and trains, brake disc ribbons, floors for cars and trucks, brake bushings, seals, bumpers, shock absorbers, automotive body seals and stainless steel materials, anti-splashing and soil, daily marine raw materials, tires and their tire inner pads.

Packaging & Shipping

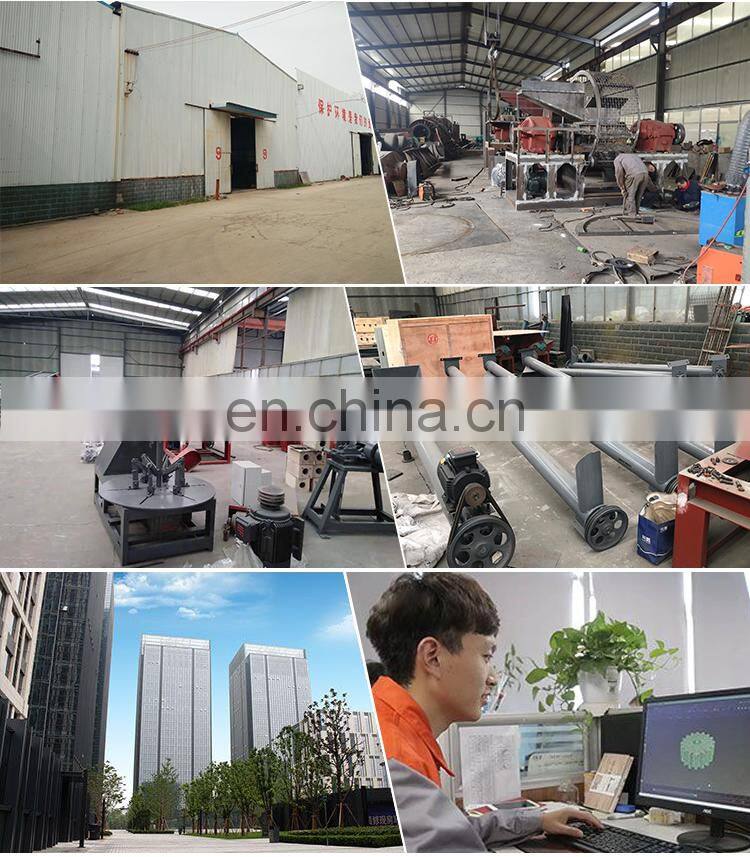

Company Information

Zhengzhou Shuliy Machinery Co., Ltd was found in 2000. Our company specializes mainly produce Recycling and environmentally friendly processing machines. We not only provide customers with cost-effective products, but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.

Buyer Feedback

FAQ

Q1: Are you manufacturer or trade company?

A1:We are a professional manufacturer for producing machinery over 10 years.

Q2: How is the quality of your product?

A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.

Q3: How about the price?

A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.

Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
