Zhengzhou Supplier Peat Moss Drum Dryer for Flower Medium

Peat, also known as grass peat, peat soil, black soil, peat, it is all coal with the lowest degree of coalification, also the most primitive state of coal. Peat is formed in peat swamps, and than formed by the pressure of overlying sediments and further Under bacteriolysis conditions, the compaction and dehydration become more firm. Formed coal is sterile, non-toxic, non-polluting, good ventilation performance, light weight, water retention, fertilizer retention, beneficial to microbial activity, enhanced biological performance, abundant nutrition. It is not only a cultivation matrix but also a good soil conditioner and contains high organic matter, humic acid and nutrients. The organic matter in peat is mainly composed of cellulose, hemicellulose, lignin, humic acid, and asphalt materials. Peat has a wide range of uses, it can be used in agriculture, such as soil-based cultivation of organic fertilizers and seedlings and flower cultivation, and in industries such as power generation fuels and chemical raw materials. Because peat is composed of various organic compounds, protein feeds, biological growth agents and phytostimulating hormones. All above mentioned can be extracted from peat, and different types of adsorbents and pharmaceutical preparations can also be produced.

Peat roller dryer, also known as paddle-rotary drum dryer, rabble-type rotary drum dryer, rotary rake dryer, rotating paddle drum dryer, the machine is to retain the ordinary roller. Based on the advantages of the dryer, it can not be adapted more than 50% moisture, weak adhesion, drying of adhesive materials, and the disadvantage of low evaporation per unit area and high fuel consumption due to the phenomenon of "black hole" in the center of the drum. Increasing stirring high-speed rotating blades, increasing the crushing and dispersing function of the material, fill the center of the drum "black hole", the material surface area fully expanded, and fully contact with the hot air to evaporate the material moisture, because the material particles are minimized, heat transfer evaporation water velocity raised dramatically. After many of production practice result proveded, that the peat drum dryer than ordinary drum dryer, water evaporation capacity per unit area of 25-60kg water / m2 · h, is 1-2 times the ordinary drum dryer, the same size drying Machine capacity increased by more than 50%, fuel energy consumption was reduced by more than 30%, equipment occupied an area of more than 40%, and moisture content of the dried material was more uniform and efficiency increased by more than 40%. It is suitable for peat, sludge, bean dregs, starch slag, sauce residue, spray corn husk, cassava slag, brewer's grains, distillers' grain, straw, grass, organic fertilizer, chicken cow dung and other moisture about 50-85% high humidity material drying. The company can optimize the drying process technology design according to the characteristics of each biomass material, output size, application requirements, cost control, degree of automation, on-site conditions.

1. It can realize intelligent control, one-button operation, automatic control of operating parameters, the dryer always running in the best status, to ensure that the drying out of the material moisture is uniform and stable.
2. The built-in stirring paddle device stirs and crushes the material completely. The heat exchange between the material and the hot gas material is sufficient. The unit production capacity of the equipment increased more than 50%, and the energy consumption of the fuel reduced more than 30%.
3. With four-wheel drive, the transmission is more stable, safe and reliable.
4. Comparing with the drum dryer, it reduced the floor area by about 40%, civil engineering investment decreased by about 40%, equipment investment decreased by 20%.
5. The internal structure of the dryer adopted a variety of high-efficiency combination modes of lift plate to effectively regulate the drying process and heat distribution, and the heat utilization rate is high. The discharge temperature of exhaust gas is lower than 50°C.
6. The use of frequency conversion to regulate the flow parameters such as material flow, hot air supply and drum rotation speed can easily control the final moisture index and equipment productivity according to the needs of users.
7. Modular dust collection, dust purification heat recovery configuration, safety and environmental protection
8. Supporting a variety of energy-saving new hot air furnace, high-efficiency, energy-saving, controllable heating, simple operation, energy consumption reduced by 30%, power consumption reduced by 20%, and operating costs get lower.

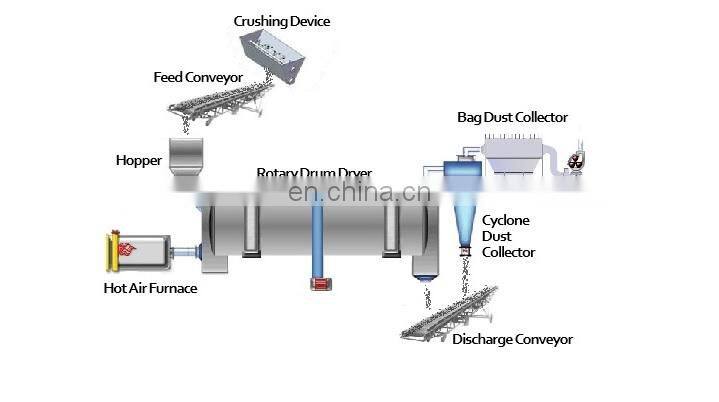

Below is Drying Process

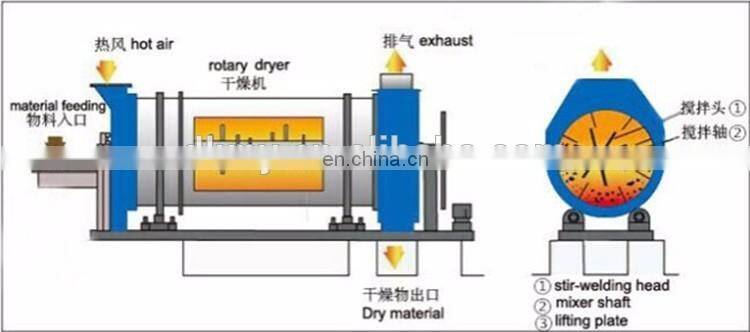

The flowchart of material: Moisture content is about 50-65% and peat is fed by a screw conveyor into a rotary drum dryer to achieve downstream drying. The materials are continuously picked up and scattered under the copying board, and the materials are scattered and spirally advanced. The inner of dryer has stirring blade device will make the material fully stirred, break up and beat, and the material and the hot gas are fully in heat exchange. The moisture quickly evaporates and vaporizes. The material that achieves the drying effect quickly moves out of the drum under the action of hot air. The wet material that does not reach the drying effect that cannot travel fast due to its own weight, and the material inside of the drum is fully dried to achieve a drying effect, and the drying process is completed and discharged from the screw conveyor. Inside the drum has a shock cleaning device to prevent material sticking to the wall.
The flowchart of gas: the air is heated by the hot air furnace of draught fan and enter the hot air furnace to burn and get heated, the temperature reaches 600-850°C. After the dryer, the induced draft fan draws the material in the dryer to dry, evaporate water, pass the three-layer heat exchange, and the wind temperature reduced to 55-60°C and discharged from the dryer. The dust containing wet dust passes the cyclone dust collector and the wet dust collector gets to the emission standards.

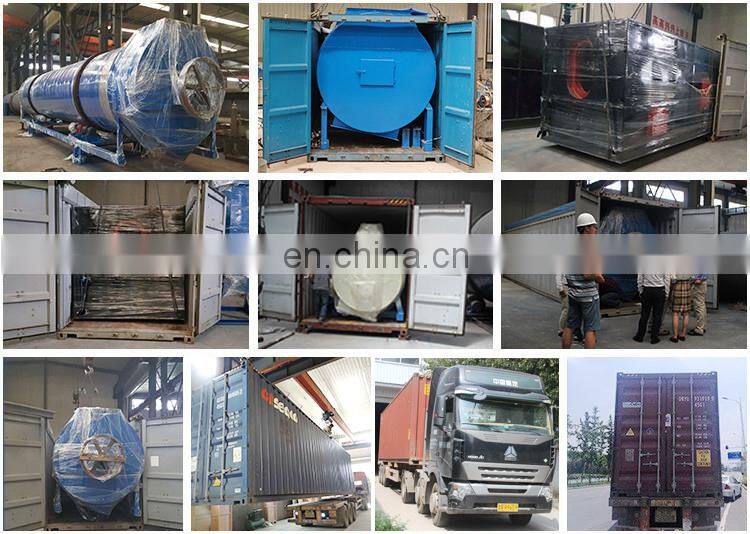

Your device will be packed well in container and suit for long ocean shipping.

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

Dingli Main Products

Biomass Pellet Production Line

Wood Sawdust Dryer

Cassava Residue Dryer

Brewer Grain Dryer

Slime Coal Dryer

Chicken Manure Dryer

Coconut Fiber Dryer

Coconut Coir Dryer

Beer Yeast Dryer

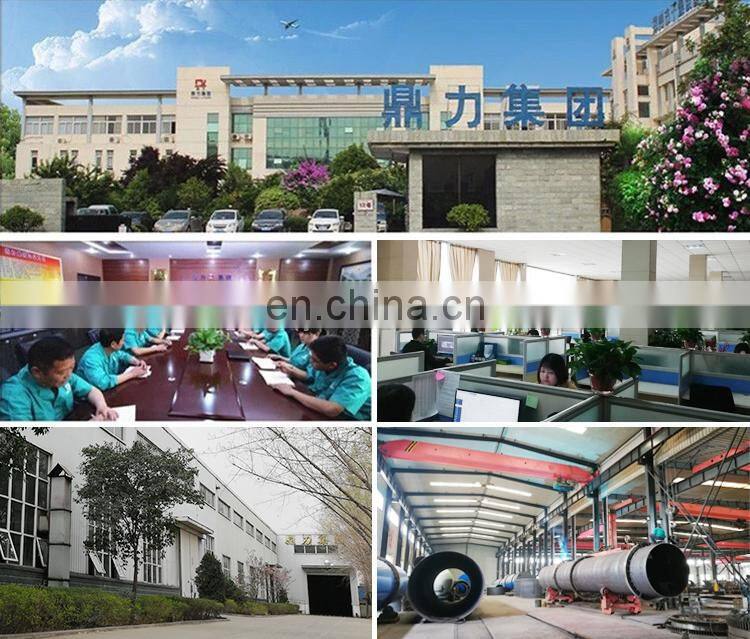

Below are Dingli Group Factory & Sales Team:

Below are Dingli Group Honors & Certificates & Patents:

Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
