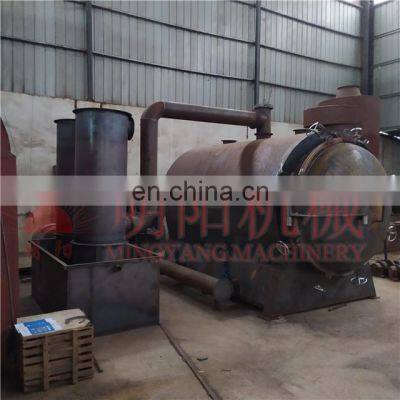

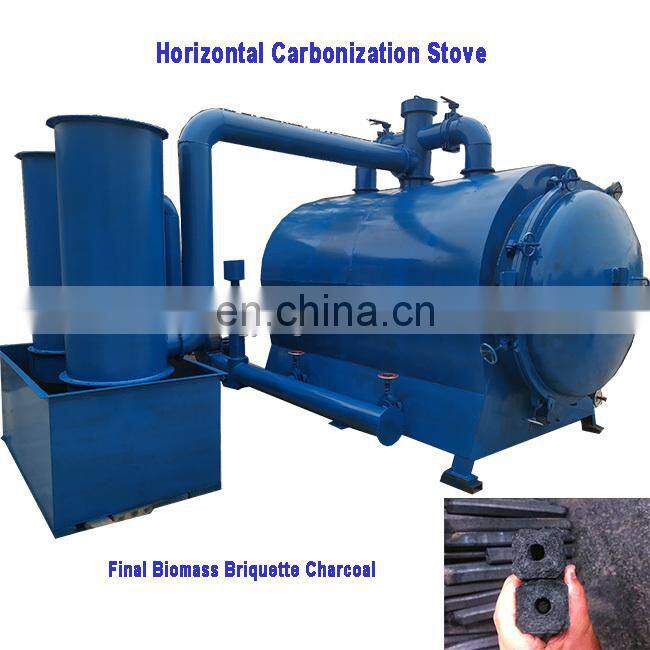

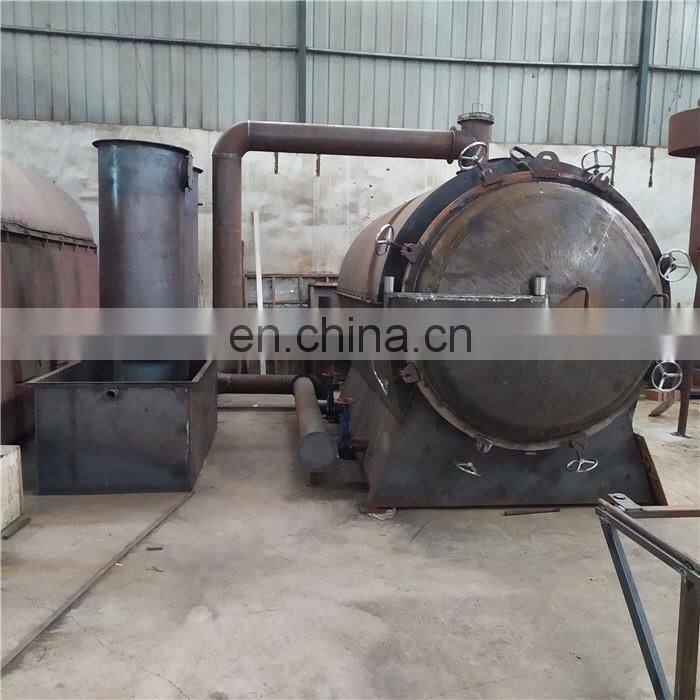

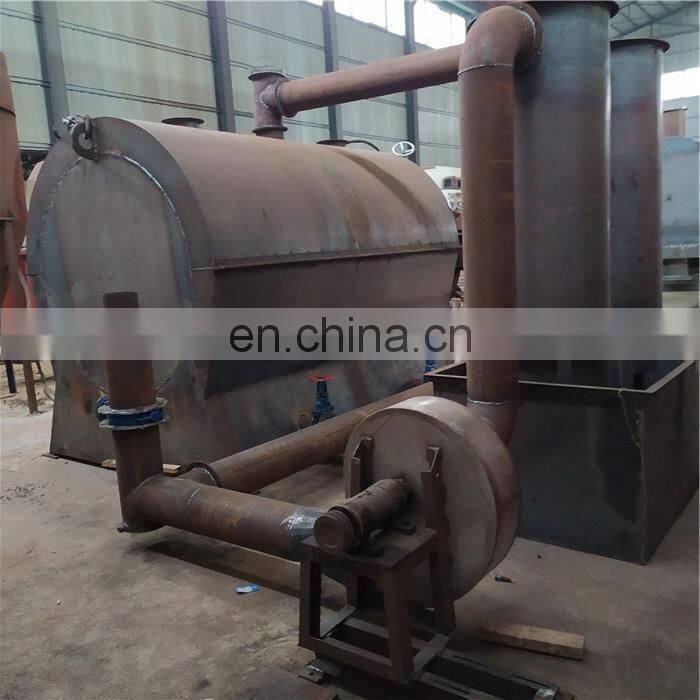

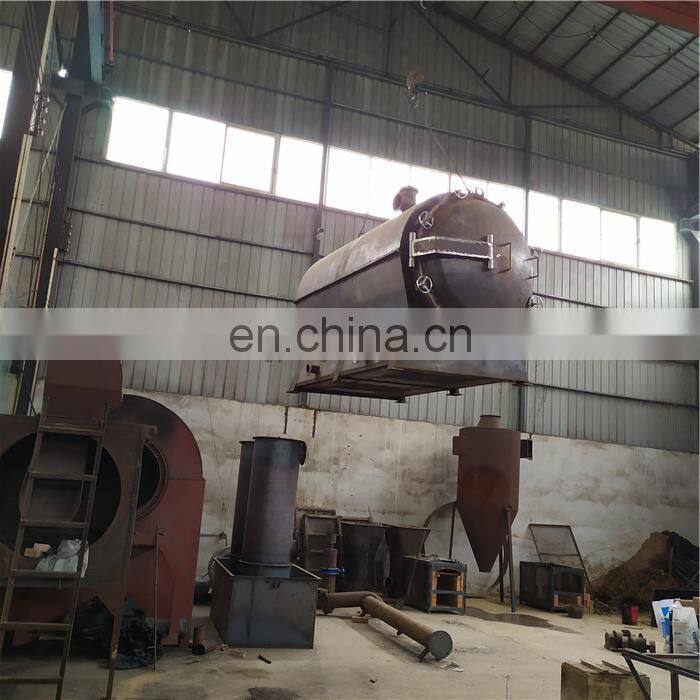

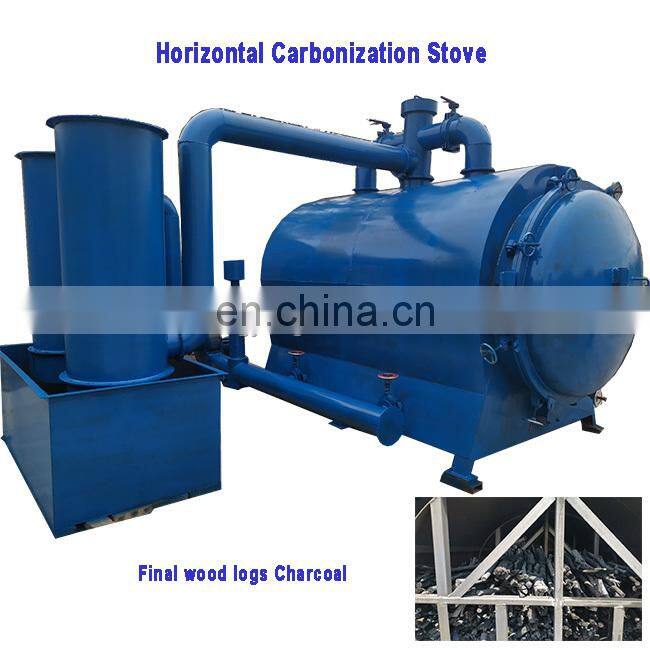

Wood charcoal making machine coconut shell bamboo charcoal furnace charcoal kiln manufacturers
Product Application of charcoal kiln manufacturers
Our charcoal kiln manufacturers adopts the method of dry distillation and high temperaure nature pyrolysis carbonizing process. This charcoal kiln manufacturers is our new invention, using the structure of unique burning chamber, to fully reuse the smoke produced during the process of carbonization. And 80% of the redundant smoke also can be used in drying and carbonization which saves energy and increases the enterprise revenue. And the operation is very convenient: Heating the inside materials until it produces fuel gas ,tar and final charcoal; 6-8 hours for regular carbonization process and then 4-6hours for cooling, then the charcoal product can be take out by the moving trolley, less labor required. This process is very safe against the hot working surroundings, high production efficiency, can save a lot of energy and labor cost, good environmental protection smokeless.It is an ideal choice for wood charcoal mass production.
Main Technical Parameter of charcoal kiln manufacturers
|
||||||||
Model |
Capacity |
Inner volume |
Temperature |
Machine includes |
||||
WHL-1.5 |
700-1000kg/24h |
5m3 |
400-600degree |
1horizontal stove, ,2 purification tanks, one stainless draught fan with inverter controlling |
||||
WHL-1.8 |
1500-2000kg/24h |
15m3 |
400-600 degree |
1horizontal stove, ,2 purification tanks, one stainless draught fan with inverter controlling |
||||
Production process of Mingyang charcoal kiln manufacturers
Firstly, we open the sealing door. Then we can put the raw materials( such as the wood logs, wood briquettes, wood chips, coconut shell or macadamia-nut shell). If the raw materials are the granular size ( such as coconut shell or macadamia-nut shell). We should put the cylinder venting in the trolley firstly. Because there should be enough space inside to guarantee the carbonizing completely.
Then we push the loaded trolley into the charcoal kiln manufacturers.
After doing these preparing work, we begin to heat in the base of the stove by fuel materials. With the temperature of rising, some smoke will come out from the exhaust port
When the temperature of inner furnace reaches to high degree ( different raw materials has different temperature). When the smoke color becomes light yellow, we should connect fume extraction tube at once, let the smoke return back to the stove. Also stop heating by the fuel at the same time. The materials ( wood logs or the shell) are during the progress of carbonizing.When the temperature reach to 450 degree, should stop heating and finished carbonized.Then disconnect the jointing parts. Taking the trolley out from the furnace. We can get the final charcoal.
Main Features of charcoal kiln manufacturers
1. High carbonization rate up to 99% and high output ( 1-2ton per day)
2. energy-saving ( 1000kg charcoal just need 30kg firewood or 15kg liquid gas for heating)
3. smokeless , little pollution ( we have two important system to recycle and purify the smoking and gas flow, and the 95% smoking will be reused for heating the stove again, and the heating resource can use the liquid gas, so no pollution the introduction see the following information)
4. easy for loading and unloading ( we will send some steel basket for you to loading the wood and keep the good look of the charcoal

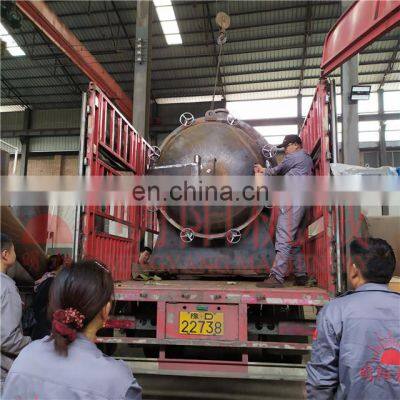

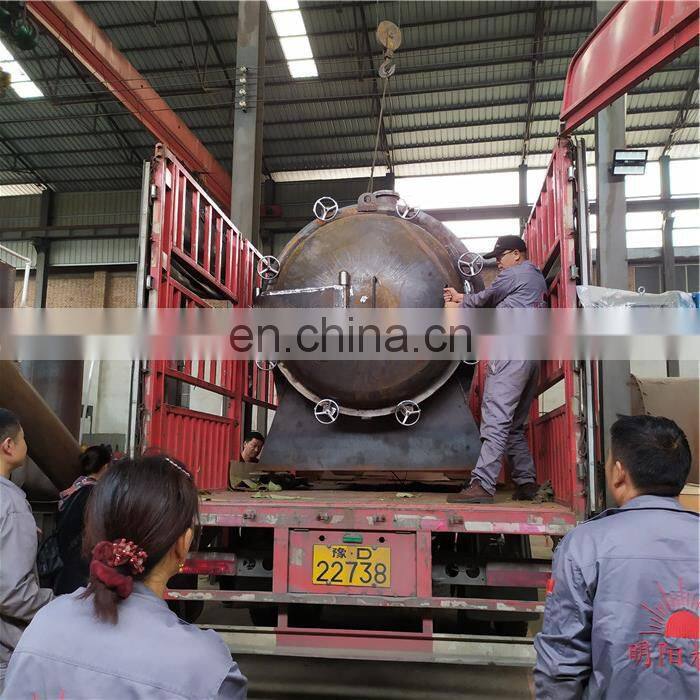

5. easy for transport, save much transport charge ( the inner stove can be stack together when loading, it will save almost 50% space, it will save much money)
6.suitable for all kinds of raw material ,especially for the coconut shell, palm shel, wood logs,wood branches,bamboo etc.
Machine Parts

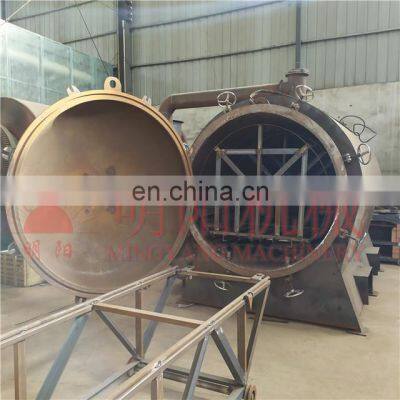

Name: Sealing door of charcoal kiln manufacturers
Brand: Mingyang
(1)Graphite inlayed to increase the tightness and high temperature resistance
(2)Keep temperature of the inner surface
(3)50mm) Mineral wool heat-keeping layer
(4)Coupling handle to open and close easily
(5)Bolts connection more stable and safe and good sealing performance.
Main machine parts

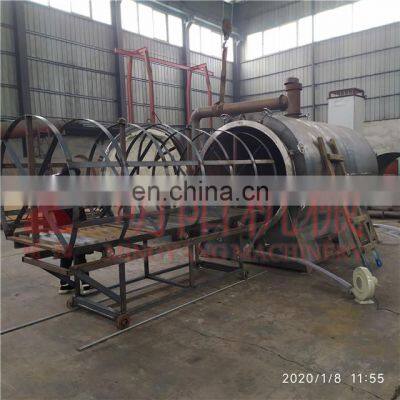

Name: loading trolly of charcoal kiln manufacturers
Brand: Mingyang
heat resistance thermal steel
holds the materials for carbonization, moving with rails more convenient and labor saving.
Machine Parts
Name:Inner furnace of charcoal kiln manufacturers
Brand: Mingyang
(1) Q245 R 12mm boiler steel plate
(2) More durable and long working time
Main Machine parts
Name: Draught fan of charcoal kiln manufacturers
Brand: Mingyang
(1) Stainless materials, anti-corrosion
(2) With inverter controller can adjust the air volume.
(3)Can used for different materials carbonization.
Machine Parts
Name:Purification of charcoal kiln manufacturers
Brand: Mingyang
(1) One for colling the smake, one for the wood tar and vinegar collection.
(2) Fliter the smoke and meet the environmental releasing regulation value
We are professional
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (charcoal kiln manufacturers, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
Environment protection methods of charcoal kiln manufacturers
Auxiliary equipment of the whole charcoal kiln manufacturers production line
Machine Name |
Wood hammer mill crusher machine |
Application |
Milling the big wooden materials into small pieces |
Power |
22kw-132kw |
Capacity |
500-5000kg/h |
Raw materials |
wood sheet, wood strips, wood branches,coconut shell,corncob etc biomass waste materials |
Final product |
3-5 mm biomass particles |
Machine Name |

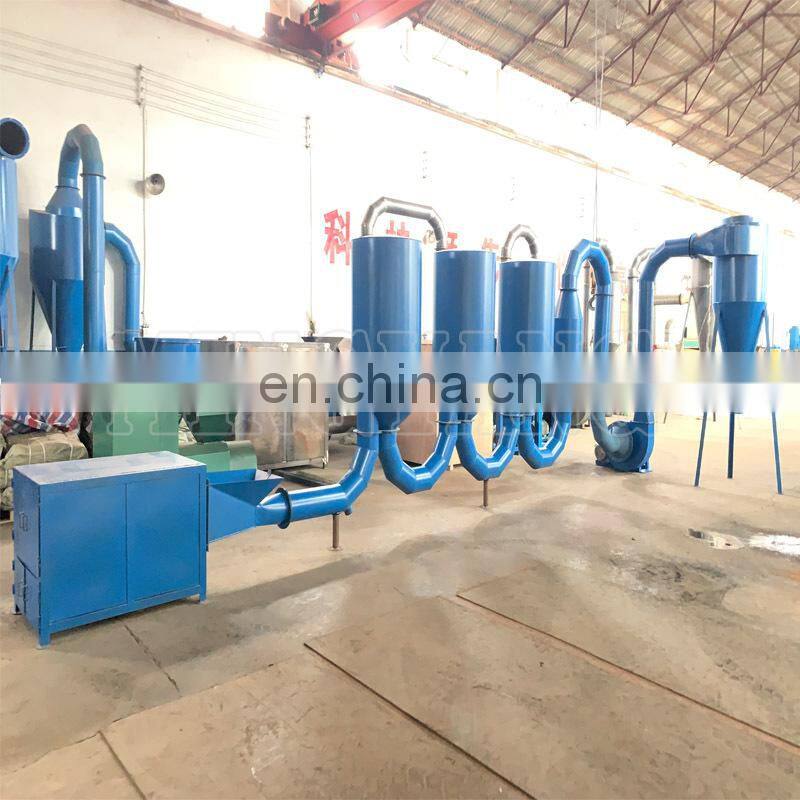

Wood Sawdust dryer pipe type |
Application |
Dry the biomass or other kind biomass |
Power |
4kw-13.25kw |
Capacity |
300-800kg/h |
Raw materials |
wood sawdust, peanut shell, etc biomass waste materials |
Final product |
about 10% moisture content materials |
Machine Name |

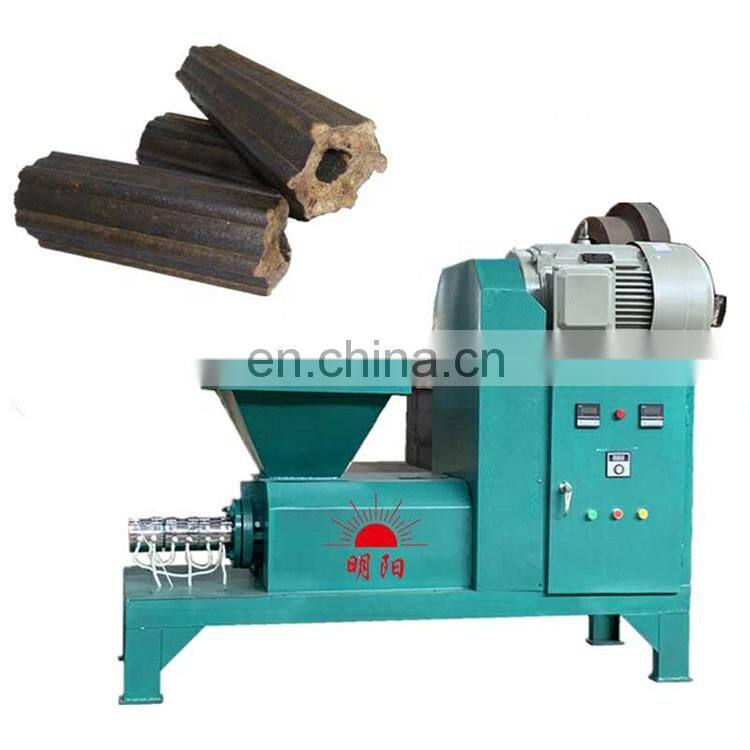

Biomass briquette machine |
Application |
forming biomass or other kind biomass into briquettes by high pressure and temperature |
Power |
18.5kw-22kw |
Capacity |
150-350kg/h |
Raw materials |
wood sawdust, peanut shell, rice husk etc biomass waste materials |
Final product |
Regular biomass briquettes for bio-fule or further charcoal making |
Machine Name |
Charcoal coal briquette machine |
Application |
forming charcoal coal powder into briquettes by high pressure |
Power |
11kw-22kw |
Capacity |
500-1500kg/h |
Raw materials |
Charcoal coal power or any other mineral powders |
Final product |
Regular briquettes for BBQ |
Pre-Sales Service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
After-Sales Service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
Welcome to contact us
If you are interested to our charcoal kiln manufacturers, firstly answer me these questions below:
2. How many raw material you have one day?
3. How many hours you want to working per day?
4. What's the output size you need?
5. The usage of the final product ?
6. Electrical supply in your place?
