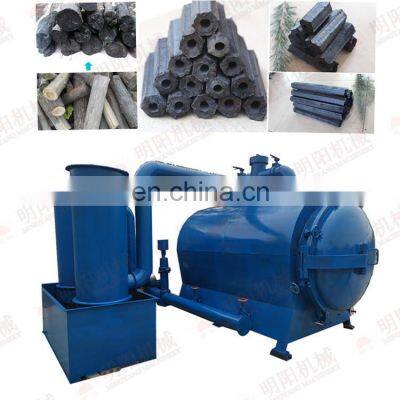

Energy Saving Horizontal Wood Lump Carbonizing Furnace Industrial Charcoal Kiln
Product Application of Industrial Charcoal Kiln
Our this Industrial Charcoal Kiln adopts the method of dry distillation and high temperature nature pyrolysis carbonizing process. This price of carbonization furnace is our new invention, using the structure of unique burning chamber, to fully reuse the smoke produced during the process of carbonization. And 80% of the redundant smoke also can be used in drying and carbonization which saves energy and increases the enterprise revenue. And the operation is very convenient: Heating the inside materials until it produces fuel gas ,tar and final charcoal; 6-8 hours for regular carbonization process and then 8-10 hours for cooling, then the charcoal product can be take out by the moving trolley, less labor required. It is widely used to carbonize raw wood, wood lumbers,branches,birch tree wood,oak tree, all kinds fruit tree woods, coconut shell, biomass stalks, jute sticks, palm leaves,empty fruit bunches, waste peanut shell rice husk briquettes, etc, wooden materials with carbon fibers.
Main Technical Parameter of Industrial Charcoal Kiln
|
||||||||
Model |
Charcoal Output |
Inner volume |
Temperature |
Machine Main Parts |
||||
WHL-300 |
700-1000kg/20h |
5.3m3 |
400-600degree |
1 set horizontal stove host, 2 pieces purification tanks, 1 piece trolley cart， 1 stainless draught fan with inverter controlling |
||||
WHL-450 |
1500-2000kg/20h |
7.9m3 |
400-600 degree |
1 set horizontal stove host, 2 pieces purification tanks, 1 piece trolley cart， 1 stainless draught fan with inverter controlling |
||||
Production process of Mingyang Industrial Charcoal Kiln
Firstly, we open the sealing door. Then we can put the raw materials( such as the wood logs, wood briquettes, wood chips, coconut shell or macadamia-nut shell). If the raw materials are the granular size ( such as coconut shell or macadamia-nut shell). We should put the cylinder venting in the trolley firstly. Because there should be enough space inside to guarantee the carbonizing completely.
Then we push the loaded trolley into the furnace.
After doing these preparing work, we begin to heat in the base of the stove by fuel materials. With the temperature of rising, some smoke will come out from the exhaust port
When the temperature of inner furnace reaches to high degree ( different raw materials has different temperature). When the smoke color becomes light yellow, we should connect fume extraction tube at once, let the smoke return back to the stove. Also stop heating by the fuel at the same time. The materials ( wood logs or the shell) are under the progress of carbonizing.
When the temperature reach to 450 degree, should stop heating, disconnect the jointing parts. Taking the trolley out from the furnace. We can get the final charcoal out from the furnace.
Furnace Igniting
Wood Gas Re-Burning
Final Charcoal Output
Main Features of Industrial Charcoal Kiln
Machine Parts
Name: Sealing door of Industrial Charcoal Kiln
Brand: Mingyang
(1)Graphite inlayed to increase the tightness and high temperature resistance
(2)Keep temperature of the inner surface
(3)50mm) Mineral wool heat-keeping layer
(4)Coupling handle to open and close easily
(5)Bolts connection more stable and safe and good sealing performance.
Main machine parts
Name: loading trolly of Industrial Charcoal Kiln
Brand: Mingyang
heat resistance thermal steel
holds the materials for carbonization, moving with rails more convenient and labor saving.
Machine Parts
Name:Inner furnace of Industrial Charcoal Kiln
Brand: Mingyang
(1) Q245 R 12mm boiler steel plate
(2) More durable and long working time
Main Machine parts
Name: Draught fan of Industrial Charcoal Kiln
Brand: Mingyang
(1) Stainless materials, anti-corrosion
(2) With inverter controller can adjust the air volume.
(3)Can used for different materials carbonization.
Machine Parts
Name:Purification of Industrial Charcoal Kiln
Brand: Mingyang
(1) One for colling the smake, one for the wood tar and vinegar collection.
(2) Fliter the smoke and meet the environmental releasing regulation value
Company Profile
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (Industrial Charcoal Kiln, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 32 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
Environment protection methods of Industrial Charcoal Kiln
Auxiliary equipment of the whole Hardwood White Charcoal Kiln Production Line
Machine Name |
Wood hammer mill crusher machine |
Application |
Milling the big wooden materials into small pieces |
Power |
22kw-132kw |
Capacity |
500-5000kg/h |
Raw materials |
wood sheet, wood strips, wood branches,coconut shell,corncob etc biomass waste materials |
Final product |
3-5 mm biomass particles |
Machine Name |
Wood Sawdust dryer pipe type |
Application |
Dry the biomass or other kind biomass |
Power |
4kw-13.25kw |
Capacity |
300-800kg/h |
Raw materials |
wood sawdust, peanut shell, etc biomass waste materials |
Final product |
about 10% moisture content materials |
Machine Name |
Biomass briquette machine |
Application |
forming biomass or other kind biomass into briquettes by high pressure and temperature |
Power |
18.5kw-22kw |
Capacity |
150-350kg/h |
Raw materials |
wood sawdust, peanut shell, rice husk etc biomass waste materials |
Final product |
Regular biomass briquettes for bio-fule or further charcoal making |
Machine Name |
Charcoal coal briquette machine |
Application |
forming charcoal coal powder into briquettes by high pressure |
Power |
11kw-22kw |
Capacity |
500-1500kg/h |
Raw materials |
Charcoal coal power or any other mineral powders |
Final product |
Regular briquettes for BBQ |
Pre-Sales Service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
After-Sales Service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
Welcome to contact us
If you are interested to our Industrial Charcoal Kiln, firstly answer me these questions below:
2. How many raw material you have one day?
3. How many hours you want to working per day?
4. What's the output size you need?
5. The usage of the final product ?
6. Electrical supply in your place?
