Bagasse Charcoal Making Machine Charcoal Extrusion Machine High Temperature Biomass Machine
1.Introduction of briquette machine
1. Briquette stick making machine takes wood, sawdust, rice husk, coconut shell, peanut shell, plant stalk, and other wood materials as feeding materials ( no any additives) to make stick shape briquettes under the condition of high pressure and temperature;
2. The outlet wood briquettes has the features of high density, small volume, which can take place of fuel wood and coal;
3. The common diameter wood briquettes is 50-80mm, and the shape can be square, hexagonal shape and round with a hole in the center.

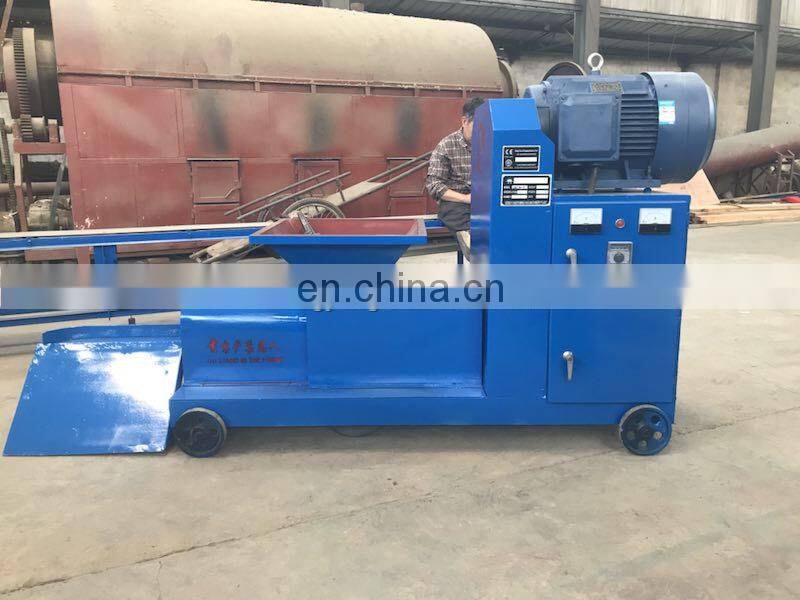

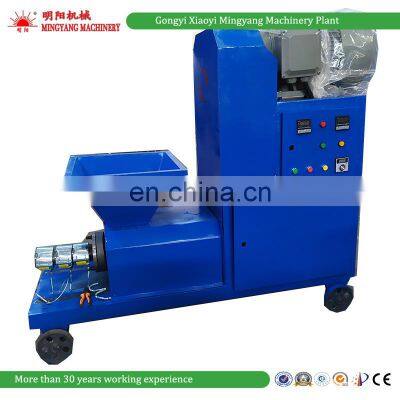

2.Detailed images of briquette machine
Materials requirements of briquette machine:
1. The feeding materials of wood briquette machine can be waste wood branch, sawdust, coconut shell, peanut shell, rice husk and other agriculture materials;
2. The inlet size of raw materials should be 3-5mm. If the raw materials are bigger than 5mm, should crush the raw material firstly;
3. The inlet moisture of raw materials should be 8-12%, otherwise, the outlet wood briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.

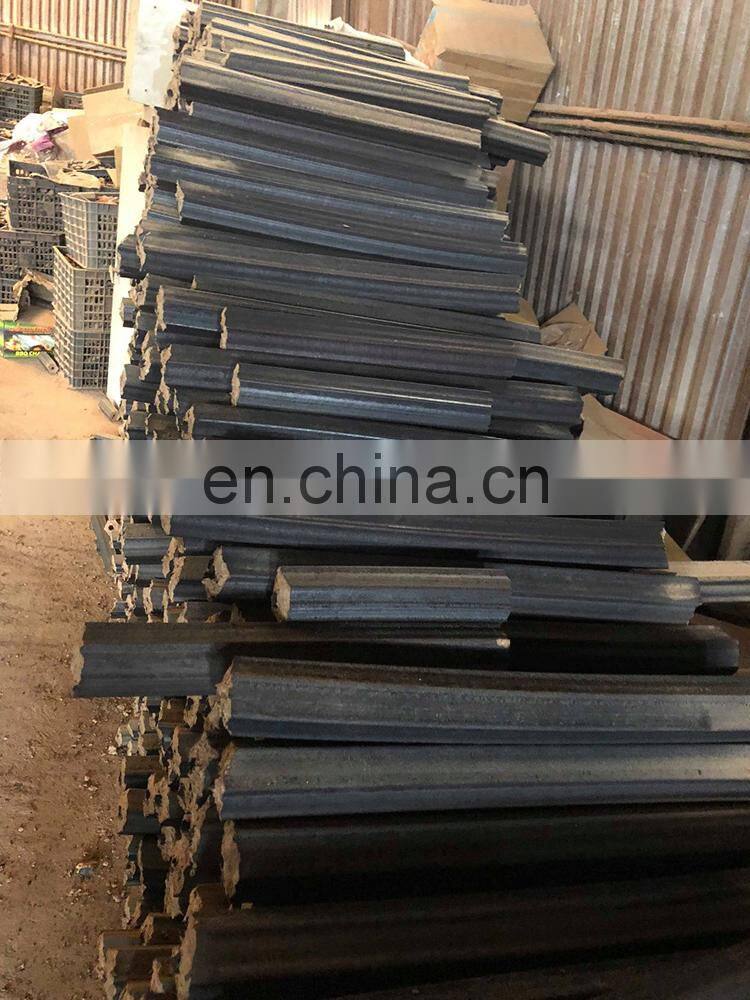

Briquettes from the wood briquette machine
1.The size: diameter of outlet briquettes can be 50-80mm;
2.The shape: the outlet briquettes of woodbriquette machine can be round, square, hexigonal stick shape;
3. The features: the outlet briquettes are with high density, good appearance, small in size, etc.
Parameters of briquette machine:
| Model | Power | Material moisture | Capacity | Briquette diameter | Appearance size(mm) |
| ZBJ50-9 | 15kw | 8-12% | 150-200kg/h | 50mm | 2200*600*1300 |
| ZBJ50-C | 22kw | 8-12% | 350-420kg/h | 50mm | 2700*700*1550 |
| ZBJ60-9 | 18.5kw | 8-12% | 200-240kg/h | 60mm | 2400*700*1350 |
| ZBJ70-9 | 18.5kw | 8-12% | 280-350kg/h | 70mm | 2400*700*1400 |
| ZBJ80-9 | 18.5kw | 8-12% | 320-380kg/h | 80mm | 2400*750*1400 |
3.Detailed parts of wood briquette machine
1.Forming of tube, special casting steel, inner barrel boron treatment,continuously use for more than 5 months;
2.Heating rings ,with a large factory of welding rod joint development of this special mechanism of carbon electrode welding process simple ,hardness up to more than 75 degrees ,and solved the crack resistance,don’t need preheat and weld directly;
3.Propeller ,advanced design,high speed of producing rod ,high density,high resistance to wear,one welding time can work continuously for more than 60 hours.

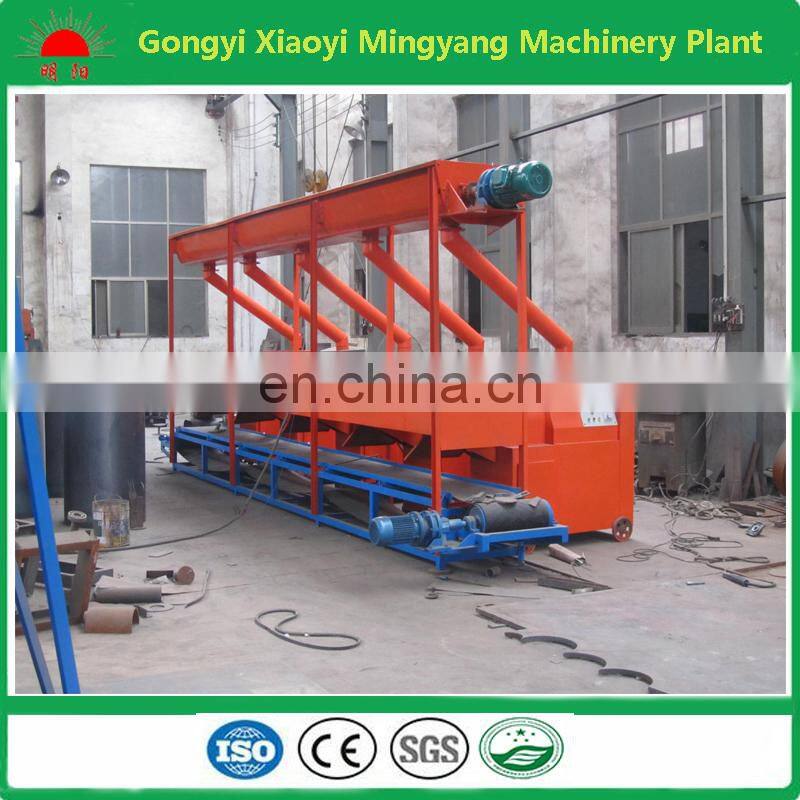

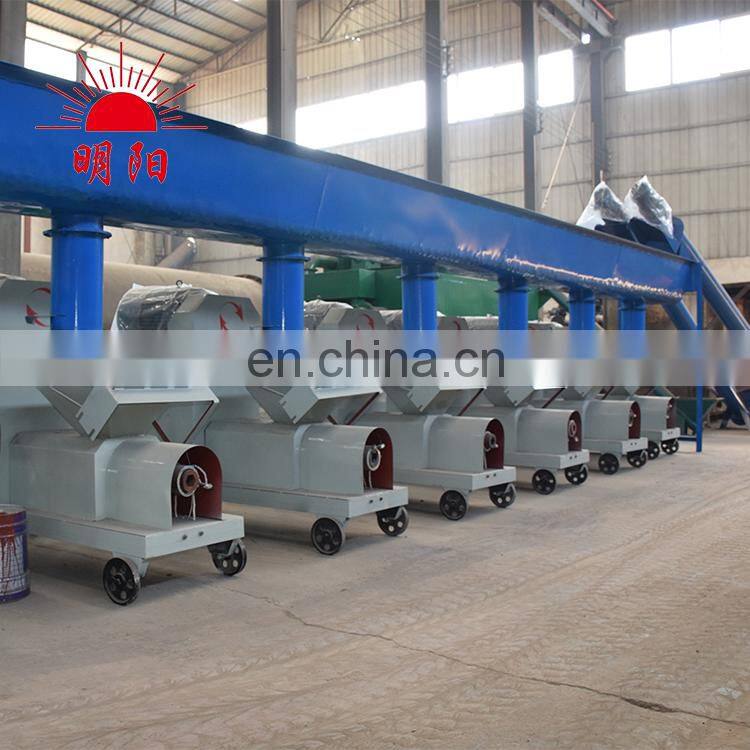

4.System remove system can collector smoke which generated during the briquetting machine working and distributor can separate raw material to different machines.
Company infromation
Gongyi xiaoyi Mingyang Machinery Plant is located in Zhengzhou City,which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipment and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries. We have lots of experience to export and cooperate with all over the world, and we also sincerely welcome you to come to our factory to visit and watch our products and factory.Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 30 years.
