Home > Products > Building Wire > RVV electrical wire cable 2.5mm cable wire 2 cores 0.5 mm flexible pvc electric wire

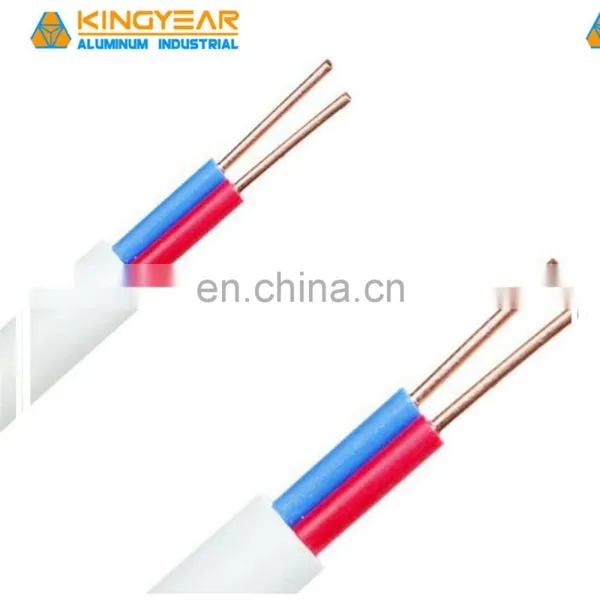

RVV electrical wire cable 2.5mm cable wire 2 cores 0.5 mm flexible pvc electric wire
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- THHN electrical wire nylon wire electrical cable wire 1.5mm 2.5mm 4mm 6mm 10mm
- PVC insulated flexible wire f rvv electric cable electrical wire 3x 1.5 flexible
- RVV 2*1.0mm2 electrical wiring insulated cable wire electric copper wire 3mm
- Electric wire 10 mm 2core flat 15mm electric cable wire
- Copper two core electricity wire 4mm electrical wire 6mm
- Single core pvc coated copper electric cable wire 6mm electric fireproof electrical wire
Product Description
RVV electrical wire cable 2.5mm cable wire 2 cores 0.5 mm flexible pvc electric wire
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electrical wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable
Applications:
Electrical wires is suitable for use in power installations, fixed wiring and flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Advantages
1. Excellent electric and mechanical characteristics
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
3. Simple in structure,Convenient to use
4. Reduce costs
Electrical wires is suitable for use in power installations, fixed wiring and flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Advantages
1. Excellent electric and mechanical characteristics
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
3. Simple in structure,Convenient to use
4. Reduce costs
Electrical wires types | ||
Model | Name | |
BV | Copper Core PVC Insulation Wire | |
BLV | Aluminum Core PVC Insulation Wire | |
BVR | Copper Core PVC Insulation Flexible Wire | |
BVV | Copper Core PVC Insulation PVC Sheath Round Wire | |
BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire | |
BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire | |
BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Technical data of Electrical wire, any customized is available. | ||||||||||||||||
Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||||||||
Cu | Al | Cu | Al | |||||||||||||
0.5 | 1/0.8 | 0.6 | 2.4 | 36.0 | 0.015 | 8.41 | ||||||||||
0.75 | 1/0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 | ||||||||||
1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 14.5 | ||||||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||||||||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - | ||||||||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 | ||||||||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 | ||||||||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 | ||||||||
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 | ||||||||
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 | ||||||||
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 | ||||||||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 | ||||||||
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 | ||||||||
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 | ||||||||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 | ||||||||
120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 | ||||||||
150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 | ||||||||
185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
RELATED PRODUCT
Similar Products(Different structure; Different size)
Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops and 1 office building of international trade.
TESTING MACHINE SHOWN:
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of RVV electrical wire cable 2.5mm cable wire 2 cores 0.5 mm flexible pvc electric wire
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
