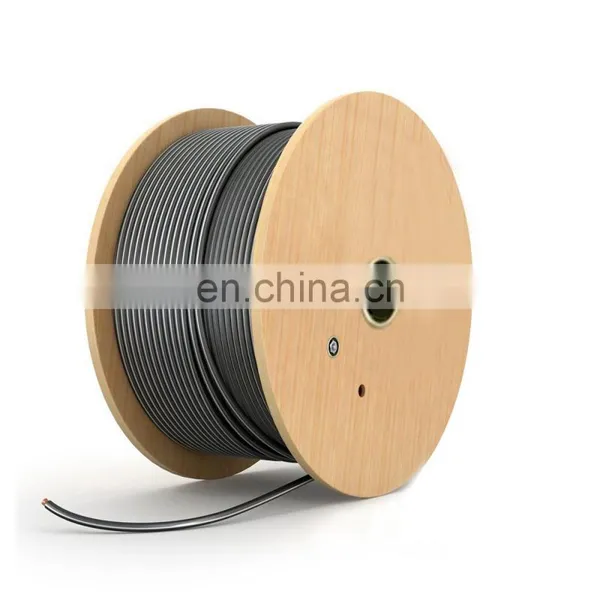

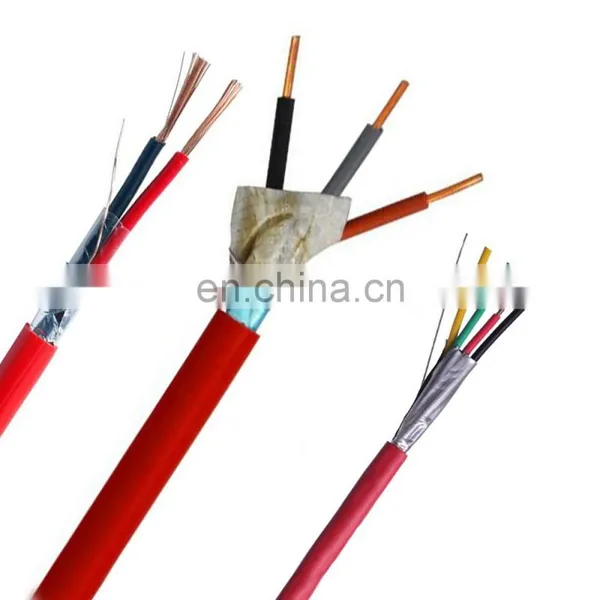

Extra-Flexible Copper Control Cable For Security System Pvc Control Cable Fire Alarm Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Engine Control Cable Kvv Copper Core Control Cable With High QualityNegotiableMOQ: 1 -
High Quality Professional Control Cable 2awg Tinned Copper Flexible CableNegotiableMOQ: 1
-
300 300v PVC Insulated AVVR CableNegotiableMOQ: 1
-
3*2.5mm 2*0.75mm 2*1mm 300/500v Insulated Control Cable High Quality Muti Core Control CableNegotiableMOQ: 1
-
H05VV-F 3*1.5MM H1Z2Z2-K WDZN-BYJ(F) Flexible Cable Y/G H03VV-F H07VV-F Heavy Duty Flexible CordsNegotiableMOQ: 1
Extra-Flexible Copper Control Cable For Security System Pvc Control Cable Fire Alarm Cable
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable
Applications:
The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.
Extra-Flexible Copper Control Cable For Security System Pvc Control Cable Fire Alarm Cable Characteristic
1.The maximum permissible continuous operating temperature is 70℃
2.The lowest installation temperature of the cable is 0℃.
3.Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.
2.The lowest installation temperature of the cable is 0℃.
3.Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.
The technical data of Extra-Flexible Copper Control Cable For Security System Pvc Control Cable Fire Alarm Cable as below, any customized is available.
Type |
Description |
Main Application |
KYJV |
Copper conductor XLPE insulated and PVC sheathed control cable |
Laying indoors,in trenches, in ducts and directly in ground |
KYJVR |
Copper conductor XLPE insulated and PVC sheathed |
|
flexible control cable |
||
KYJVP |
Copper conductor XLPE insulated and PVC sheathed control cable |
Laying indoors,in trenches, in ducts directly in ground and other places that interference-resistance is requested. |
with copper tape lapping screen |
||
KYJVP2 |
Copper conductor XLPE insulated and PVC sheathed flexible control |
|
cable with braiding screen |
||
KYJVRP |
Copper conductor XLPE insulated and PVC sheathed control cable |
|
with copper tape longitudinal screen |
||
KYJVRP2 |
Copper conductor XLPE insulated and PVC sheathed flexible control |
|
cable with copper tape lapping screen |
||
KYJV22 |
Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour |
For flxed installation,laying indoors, in trenches and ducts,directly in ground where heavier mechanical force withstood |
KYJV32 |
Copper conductor XLPE insulated and PVC sheathed control cable |
For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force |
with steel wire armour |
||
KYJVP2-22 |
Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen |
For fixed installation,laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood. |
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
Regards the Pvc Control Cable Fire Alarm Cable, some hot selling products as below:
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of Pvc Control Cable Fire Alarm Cable. 1 office building of international trade.
TESTING MACHINE SHOWN:
Extra-Flexible Copper Control Cable For Security System Pvc Control Cable Fire Alarm Cable testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE OF Pvc Control Cable Fire Alarm Cable.
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of Pvc Control Cable Fire Alarm Cable.
Some of our products packaging records shown:
They are about Pvc Control Cable Fire Alarm Cable.
FAQ
Q:I didn't find the extra-flexible copper control cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc. CONTACT US
