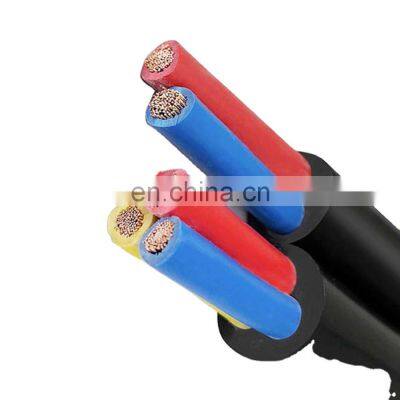

2 Core 4mm2 Hot Sale Bvvb Copper Flexible Flat Cable & Wire Xlpe Copper Flexible Control Cable

Name: 2 Core 4mm2 Hot Sale Bvvb Copper Flexible Flat Cable & Wire Xlpe Copper Flexible Control Cable
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

2 core 4mm2 hot sale bvvb copper flexible flat cable & wire xlpe copper flexible control cable

WHY CHOOSE US

PRODUCT DESCRIPTION

KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable

Applications:

The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.

2 core 4mm2 hot sale bvvb copper flexible flat cable & wire xlpe copper flexible control cable characteristics

1.The maximum permissible continuous operating temperature is 70℃
2.The lowest installation temperature of the cable is 0℃.
3.Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.

The technical data of 2 core 4mm2 hot sale bvvb copper flexible flat cable & wire xlpe copper flexible control cable as below, any customized is available.

Type	Description	Main Application
KYJV	Copper conductor XLPE insulated and PVC sheathed control cable	Laying indoors,in trenches, in ducts and directly in ground
KYJVR	Copper conductor XLPE insulated and PVC sheathed
KYJVR			flexible control cable
KYJVP	Copper conductor XLPE insulated and PVC sheathed control cable	Laying indoors,in trenches, in ducts directly in ground and other places that interference-resistance is requested.
KYJVP			with copper tape lapping screen
KYJVP2	Copper conductor XLPE insulated and PVC sheathed flexible control
KYJVP2			cable with braiding screen
KYJVRP	Copper conductor XLPE insulated and PVC sheathed control cable
KYJVRP			with copper tape longitudinal screen
KYJVRP2	Copper conductor XLPE insulated and PVC sheathed flexible control
KYJVRP2			cable with copper tape lapping screen
KYJV22	Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour	For flxed installation,laying indoors, in trenches and ducts,directly in ground where heavier mechanical force withstood



KYJV32	Copper conductor XLPE insulated and PVC sheathed control cable	For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force
KYJV32			with steel wire armour
KYJVP2-22	Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen	For fixed installation,laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood.

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of electrical cables and wires manufacture. 1 office building of international trade.

TESTING MACHINE SHOWN: Xlpe copper flexible control cable testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE OF xlpe copper flexible control cable.

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of xlpe copper flexible control cable.

Some of our products packaging records shown:

They are about xlpe copper flexible control cable.

FAQ

Q:I didn't find the xlpe copper flexible control cable which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc. CONTACT US
