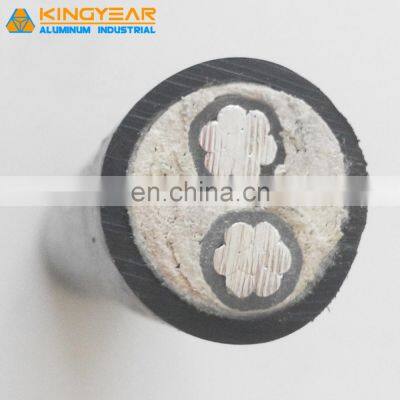

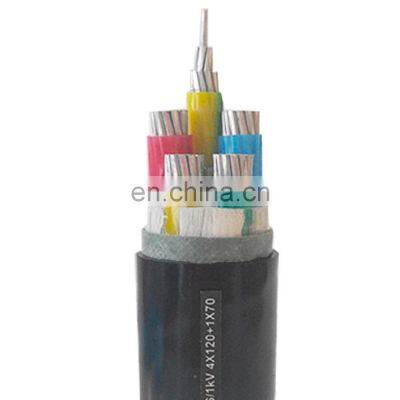

Low Voltage Aluminum Cable 0.6/1kv Amoured Power Cable Size and Current Rating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11kv 15kv 33kv Underground Armoured Power CablesNegotiableMOQ: 1 -
MV 105 Cable 1250 Kcmil Al 34.5kV Trxlpe 100% Insulation Concentric Neutral Power URD CableNegotiableMOQ: 1
-
2/0AWG Aluminum/Copper Conductor 15kV URD 133% TR-XLPE/PVC Insulated Medium Voltage Primary URD CableNegotiableMOQ: 1
-
240mm2 Power Cable Medium Voltage Used 12/20kv 20kv Aluminum Power CableNegotiableMOQ: 1
-
Core Power Cable High Voltage Copper 240mm2 XLPE Insulated 110kv Single Core or Multi Core Multi Sizes Construction KINGYEARNegotiableMOQ: 1
low voltage aluminum cable 0.6/1kv amoured power cable size and current rating
WHY CHOOSE US
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable
Regards the 0.6/1kv 15 kv 35 kv 185mm2 16mm2 4*cu xlpe/pvc/pe insulated coaxial cable
Applications:
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
Technology property of 0.6/1kv 15 kv 35 kv 185mm2 16mm2 4*cu xlpe/pvc/pe insulated coaxial cable:
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
Technology property of 0.6/1kv 15 kv 35 kv 185mm2 16mm2 4*cu xlpe/pvc/pe insulated coaxial cable:
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
The detail technical data of low voltage aluminum cable 0.6/1kv amoured power cable size and current rating as below for reference,any customized is available. |
||||||||||||||||||
Rated Voltage, No. of Core and Range of Sectional Area |
||||||||||||||||||
Rated voltage (kv) Sectional area (mm2) No. of core |
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||||||||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||||||||
1 Core |
1.5-800 |
25-800 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
||||||||||
2 Core |
1.5-185 |
25-185 |
||||||||||||||||
3 Core |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
||||||||||
4 Core |
2.5-400 |
25-400 |
||||||||||||||||
5 Core |
2.5-400 |
25-400 |
||||||||||||||||
DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values. |
||||||||||
Nominal section area (mm2) |
Copper core |
Aluminum core |
Nominal section area (mm2) |
Copper core |
Aluminum core |
|||||
1.5 |
12.1 |
18.1 |
95 |
0.193 |
0.32 |
|||||
2.5 |
7.41 |
12.1 |
120 |
0.153 |
0.253 |
|||||
4 |
4.61 |
7.41 |
150 |
0.124 |
0.206 |
|||||
6 |
3.08 |
4.61 |
185 |
0.099 |
0.164 |
|||||
10 |
1.83 |
3.08 |
240 |
0.0754 |
0.125 |
|||||
16 |
1.15 |
1.91 |
300 |
0.0601 |
0.1 |
|||||
25 |
0.727 |
1.2 |
400 |
0.047 |
0.778 |
|||||
35 |
0.524 |
0.868 |
500 |
0.0366 |
0.0605 |
|||||
50 |
0.387 |
0.641 |
630 |
0.0283 |
0.0469 |
|||||
70 |
0.268 |
0.443 |
800 |
0.0221 |
0.0367 |
|||||
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of low voltage aluminum cable 0.6/1kv amoured power cable size and current rating . 1 office building of international trade.
TESTING MACHINE SHOWN:
low voltage aluminum cable 0.6/1kv amoured power cable size and current rating testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE of low voltage aluminum cable 0.6/1kv amoured power cable size and current rating
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of low voltage aluminum cable 0.6/1kv amoured power cable size and current rating as below,customized is accepted.
Some of our products packaging records shown:
They are about low voltage aluminum cable 0.6/1kv amoured power cable size and current rating
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
