2/0AWG Aluminum/Copper Conductor 15kV URD 133% TR-XLPE/PVC Insulated Medium Voltage Primary URD Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
240mm2 Power Cable Medium Voltage Used 12/20kv 20kv Aluminum Power CableNegotiableMOQ: 1 -
Core Power Cable High Voltage Copper 240mm2 XLPE Insulated 110kv Single Core or Multi Core Multi Sizes Construction KINGYEARNegotiableMOQ: 1
-
25mm 35mm 50mm 70mm CU Conductor Underground 4 Core Electricity Power CableNegotiableMOQ: 1
-
Kingyear Impedance Products RVV Cable Flexible Power Cable 3 Core 1.5mm H05vv-f 1.0x3c Royal Cord CableNegotiableMOQ: 1
-
Low Voltage Xlpe Insultade STA 4 Core Underground Power CableNegotiableMOQ: 1
2/0AWG Aluminum/Copper Conductor 15kV URD 133% TR-XLPE/PVC Insulated Medium Voltage Primary URD Cable
PRODUCT DESCRIPTION
1. Applications:
URD – TRXLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
2. SPECIFICATIONS
TRXLPE insulated URD cables meets or exceeds all applicable requirements of the following standards, and guaranteed all cables
manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
TRXLPE insulated URD cables meets or exceeds all applicable requirements of the following standards, and guaranteed all cables
manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

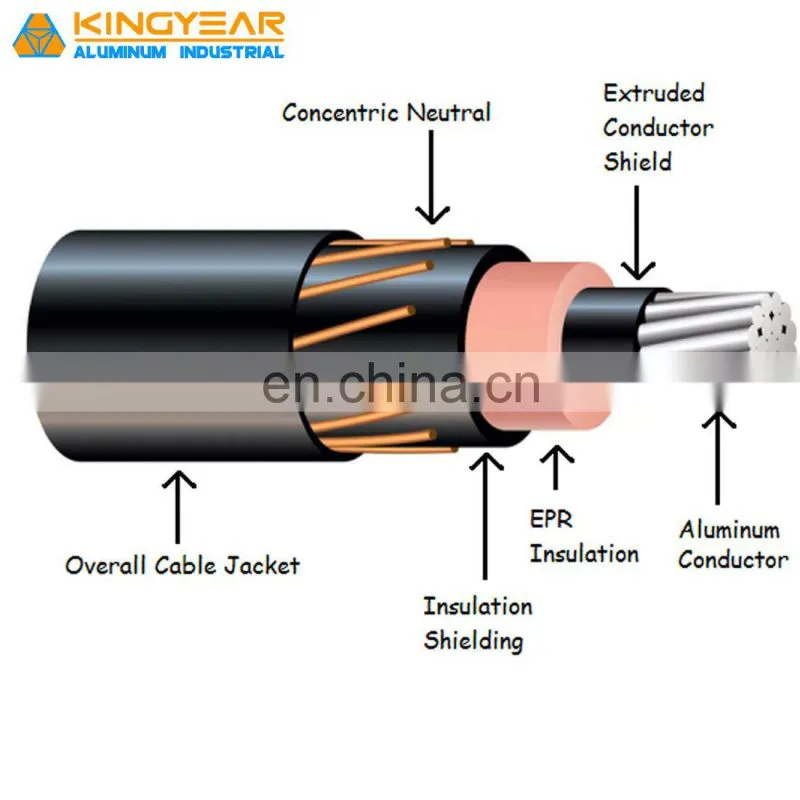

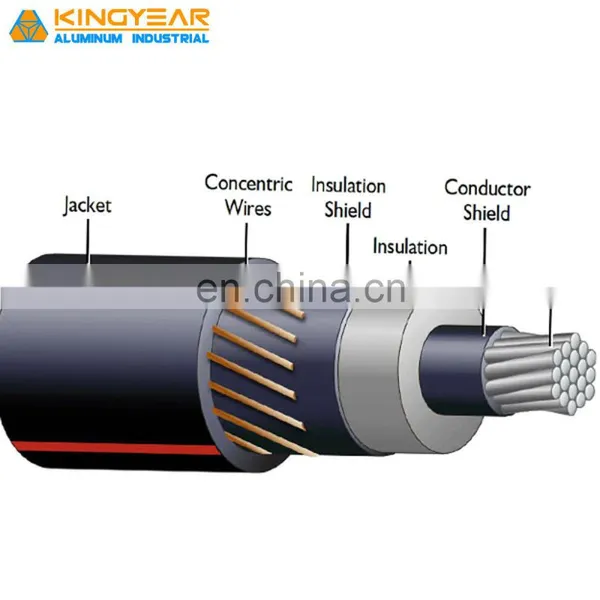

3. CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLP (Tree Retardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request
No. of core
|
Range of Section Area (mm²) at Rated Voltage Uo/U(Um) |
||||||||||||
0.6/1(1.2)kV |
1.8/3kV |
3.6/6(7.2)kV |
6/10(12)kV |
8.7/15(17.5)kV |
12/20(24)kV |
18/30(33)kV |
|||||||
1 Core |
1.5-800 |
25-800 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
||||||
2 Core |
1.5-185 |
25-185 |
- |
- |
- |
- |
- |
||||||
3 Core |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
||||||
4 Core |
2.5-400 |
25-400 |
- |
- |
- |
- |
- |
||||||
5 Core |
2.5-400 |
25-400 |
- |
- |
- |
- |
- |
||||||
Max. Conductor DC resistance 20ºC
(Ω/km)
|
||||||||||
Nominal section area (mm2) |
Copper core |
Aluminum core |
Nominal section area (mm2) |
Copper core |
Aluminum core |
|||||
1.5 |
12.1 |
18.1 |
95 |
0.193 |
0.32 |
|||||
2.5 |
7.41 |
12.1 |
120 |
0.153 |
0.253 |
|||||
4 |
4.61 |
7.41 |
150 |
0.124 |
0.206 |
|||||
6 |
3.08 |
4.61 |
185 |
0.099 |
0.164 |
|||||
10 |
1.83 |
3.08 |
240 |
0.0754 |
0.125 |
|||||
16 |
1.15 |
1.91 |
300 |
0.0601 |
0.1 |
|||||
25 |
0.727 |
1.2 |
400 |
0.047 |
0.778 |
|||||
35 |
0.524 |
0.868 |
500 |
0.0366 |
0.0605 |
|||||
50 |
0.387 |
0.641 |
630 |
0.0283 |
0.0469 |
|||||
70 |
0.268 |
0.443 |
800 |
0.0221 |
0.0367 |
|||||
PACKAGE
PACKAGING FLOW
Some of our products packaging records shown:
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
WHY CHOOSE US
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
TESTING MACHINE SHOWN:
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
