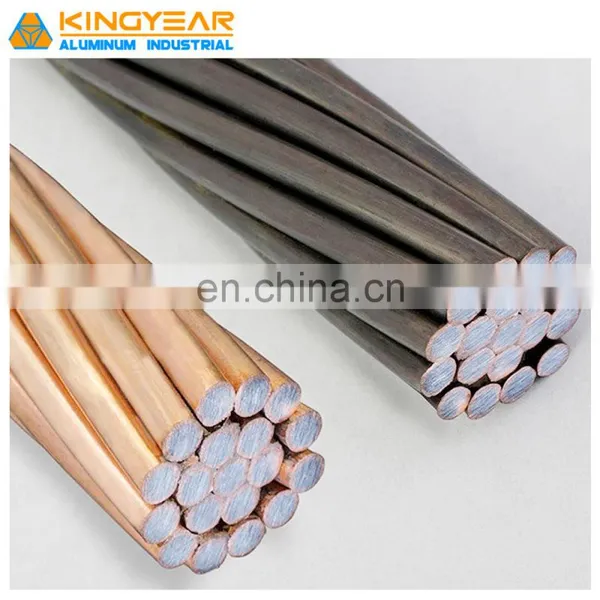

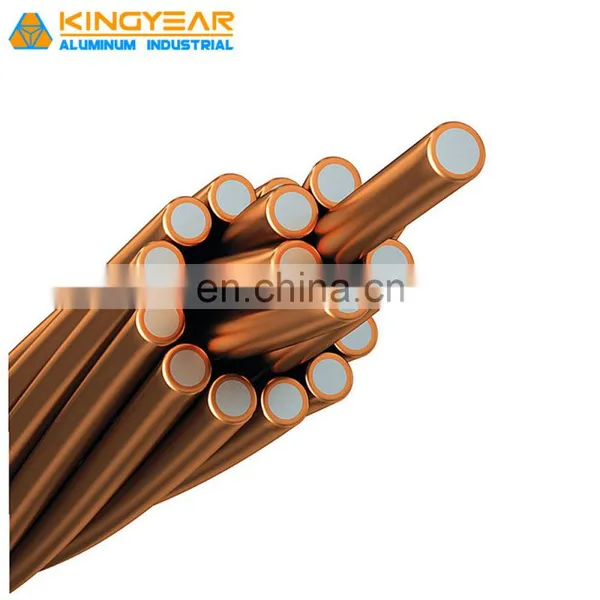

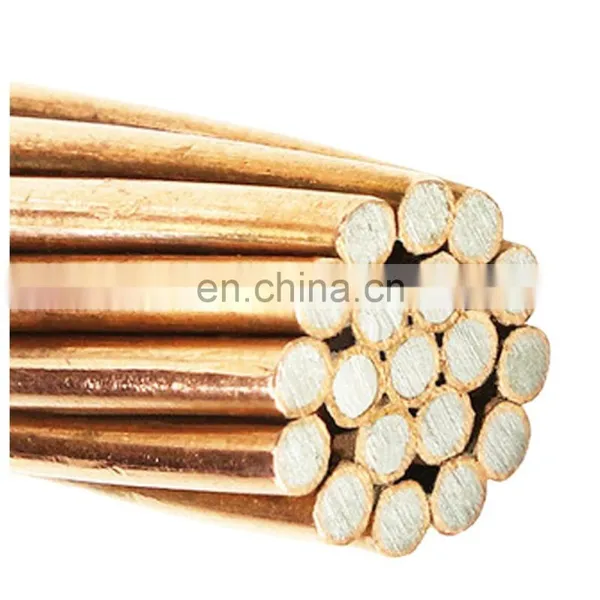

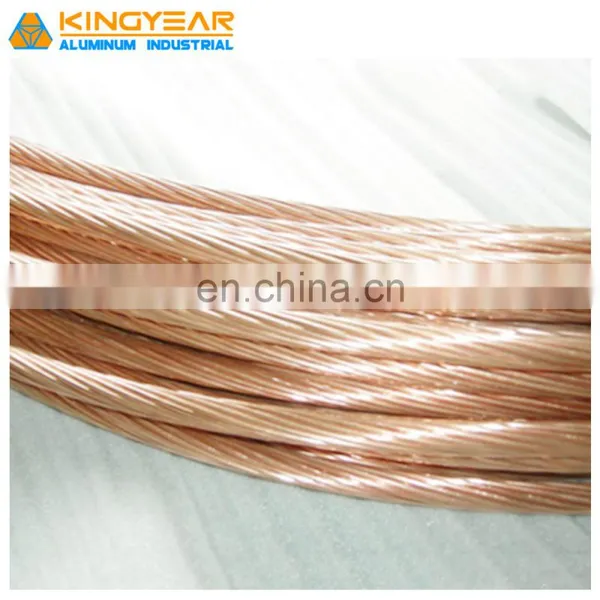

19 Strands 9AWG Hard-drawn Copper Clad Steel Copperweld Wire 40% Conductivity for Earthing System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Kingyear 477 Mcm 795 Mcm Harga Pabrik ACSR AAC Plant Quail Bare Conductor Electric Kabel Cable For SaleNegotiableMOQ: 1 -
Acsr Din 48204astm Stranded Cable Acsr 150/30NegotiableMOQ: 1
-
ACSR Curlew Conductor 1033.5kcmil/Mcm (54/3.51+7/3.51mm)NegotiableMOQ: 1
-
High Voltage ACSR Hyena Conductor Recycling of ACSR Cable Aluminum Conductor Steel HDA ConductorNegotiableMOQ: 1
-
Acsr 500 Mcm Cable Senegal Ukraine Uganda Acsr 160 Mm2 Iec 61089 Aaac Cable 795 Mcm Acsr DanNegotiableMOQ: 1
19 Strands 9AWG Hard-drawn Copper Clad Steel Copperweld Wire 40% Conductivity for Earthing System
PRODUCT DESCRIPTION
Application:
Copper Clad Steel (CCS) strand wire as the grounding conductor for primary surge arresters permits a continuous length of conductor to be installed from the arrester to the buried grounding electrode. This is a practice which is not usually recommended with
aluminum conductors. The steel core of the strand wire provides a rugged lead. It can withstand more mechanical abuse and is less susceptible to vibration-induced fatigue than solid copper or aluminum wire. When wire is used in place of copper, the grounding conductor is far less likely to be stolen. This feature is important not only from an economic standpoint, but also from the standpoint of safety and reliability. Often, the fact that a copper downlead has been removed is not evident until a surge current causes a failure in the system.
Copper Clad Steel (CCS) strand wire as the grounding conductor for primary surge arresters permits a continuous length of conductor to be installed from the arrester to the buried grounding electrode. This is a practice which is not usually recommended with
aluminum conductors. The steel core of the strand wire provides a rugged lead. It can withstand more mechanical abuse and is less susceptible to vibration-induced fatigue than solid copper or aluminum wire. When wire is used in place of copper, the grounding conductor is far less likely to be stolen. This feature is important not only from an economic standpoint, but also from the standpoint of safety and reliability. Often, the fact that a copper downlead has been removed is not evident until a surge current causes a failure in the system.
Executive Standard:
ASTM B228, ASTM B229, ASTM B910, ASTM B452 and ect. Construction:
* Concentric-lay stranded.
* Core wires or central wires are helically surrounded by outer layer wires, the direction is reversed compared with successive layers.
* Popular Copper Clad Steel Wire Strands 7, 19, 37
ASTM B228, ASTM B229, ASTM B910, ASTM B452 and ect. Construction:
* Concentric-lay stranded.
* Core wires or central wires are helically surrounded by outer layer wires, the direction is reversed compared with successive layers.
* Popular Copper Clad Steel Wire Strands 7, 19, 37
Specification for Copper Clad Steel Copperweld Wire Strand Conductor
Size Designation |
Conductor Dia. |
Rated Breaking Strength. Min. Lb. |
30% Density Mass |
40% Density Mass |
Resistance, max, Ω/1000ft |
||||||||
Inch |
AWG |
inch |
Grade 40 HS |
Grade 30 HS |
Grade 30 EHS |
Lb/1000ft |
Lb/1000ft |
Grade 40 |
Grade 30 |
||||
7/8 |
19 No.5 |
0.91 |
50240 |
55570 |
66910 |
1770 |
1788 |
0.04264 |
0.05685 |
||||
13/16 |
19 No.6 |
0.81 |
41600 |
45830 |
55530 |
1403 |
1418 |
0.05377 |
0.07168 |
||||
23/32 |
19 No.7 |
0.721 |
34390 |
37740 |
45850 |
1113 |
1125 |
0.0678 |
0.09039 |
||||
21/32 |
19 No.8 |
0.642 |
28380 |
31040 |
37690 |
882.7 |
892 |
0.0855 |
0.114 |
||||
9/16 |
19 No.9 |
0.572 |
23390 |
25500 |
30610 |
700 |
707.3 |
0.1078 |
0.1437 |
||||
5/8 |
7 No.4 |
0.613 |
22310 |
24780 |
29430 |
818.9 |
827.5 |
0.09143 |
0.1219 |
||||
9/16 |
7 No.5 |
0.546 |
18510 |
20470 |
24650 |
649.4 |
656.2 |
0.1153 |
0.1537 |
||||
1/2 |
7 No.6 |
0.486 |
15330 |
16890 |
20460 |
514.9 |
520.3 |
0.1454 |
0.1938 |
||||
7/16 |
7 No.7 |
0.433 |
12670 |
13910 |
16890 |
408.6 |
412.9 |
0.1833 |
0.2444 |
||||
3/8 |
7 No.8 |
0.385 |
10460 |
11440 |
13890 |
323.9 |
327.3 |
0.2312 |
0.3081 |
||||
11/32 |
7 No.9 |
0.343 |
8616 |
9393 |
11280 |
256.8 |
259.5 |
0.2915 |
0.3886 |
||||
5/16 |
7 No.10 |
0.306 |
7121 |
7758 |
9196 |
203.7 |
205.8 |
0.3676 |
0.49 |
||||
- |
3 No.5 |
0.392 |
8373 |
9262 |
11860 |
277.8 |
280.7 |
0.2685 |
0.3579 |
||||
- |
3 No.6 |
0.349 |
6934 |
7639 |
9754 |
220.3 |
222.6 |
0.3385 |
0.4513 |
||||
- |
3 No.7 |
0.311 |
5732 |
6291 |
7922 |
174.7 |
176.5 |
0.4269 |
0.5691 |
||||
- |
3 No.8 |
0.277 |
4730 |
5174 |
6282 |
138.5 |
140 |
0.5383 |
0.7176 |
||||
- |
3 No.9 |
0.247 |
3898 |
4250 |
5129 |
109.9 |
111 |
0.6788 |
0.9049 |
||||
- |
3 No.10 |
0.22 |
3221 |
3509 |
4160 |
87.1 |
88.02 |
0.8559 |
1.141 |
||||
- |
3 No.12 |
0.174 |
1715 |
- |
- |
54.8 |
55.38 |
1.361 |
- |
||||
PACKAGING&TRANSPORT
Packing Flow for Copper Clad Steel Copperweld Wire Strand Conductor
Different cable drum for Copper Clad Steel Copperweld Wire Strand Conductor
