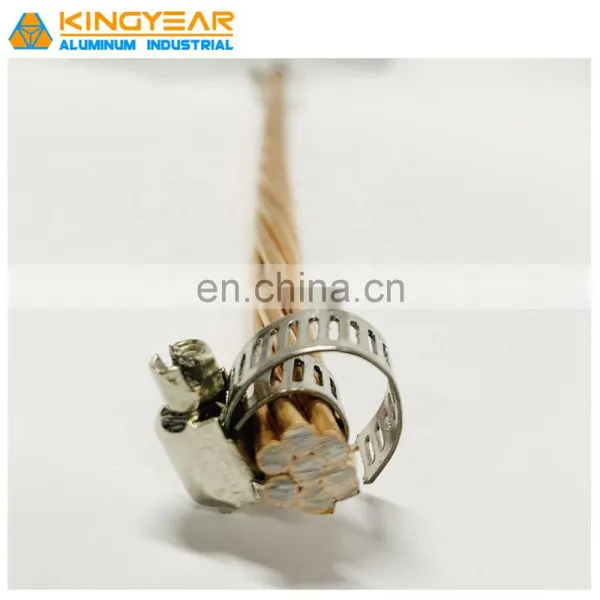

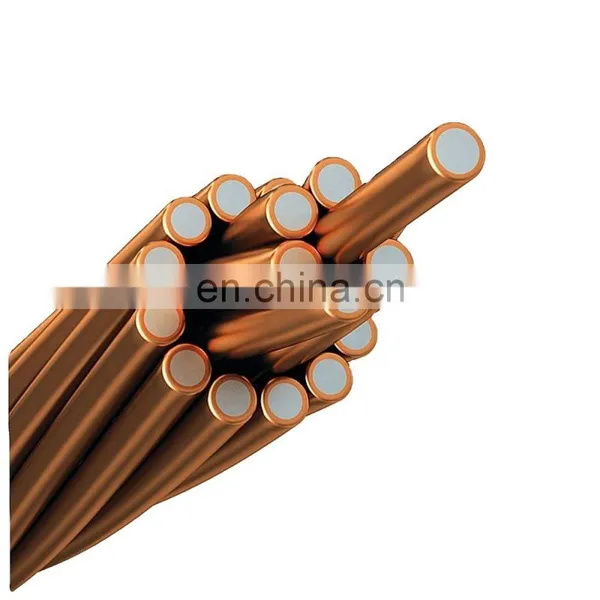

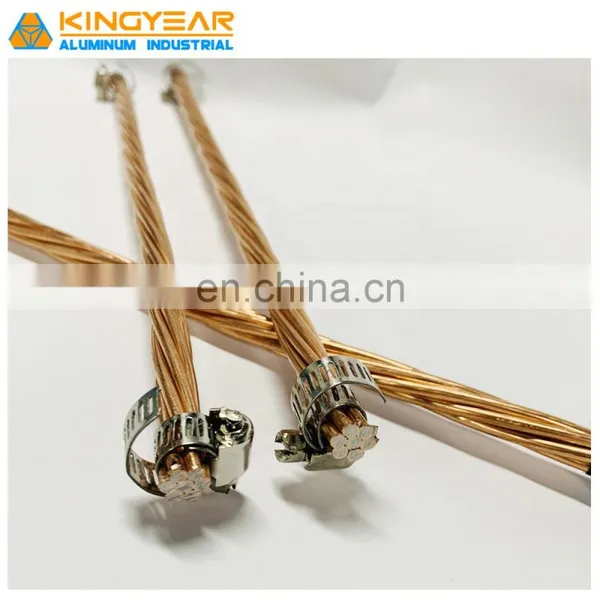

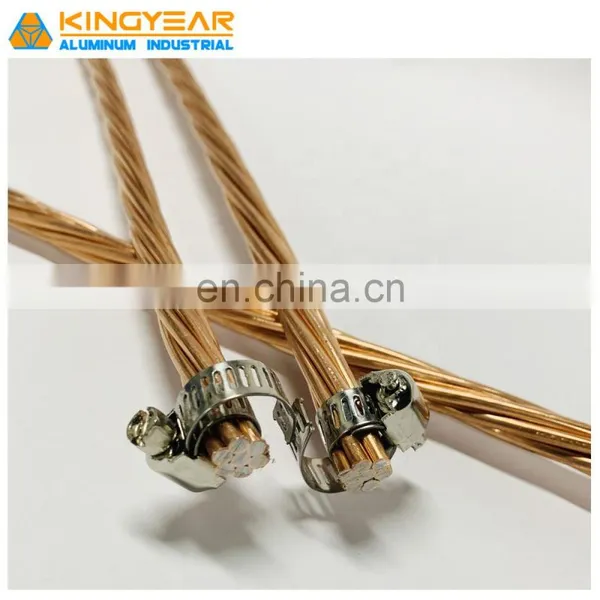

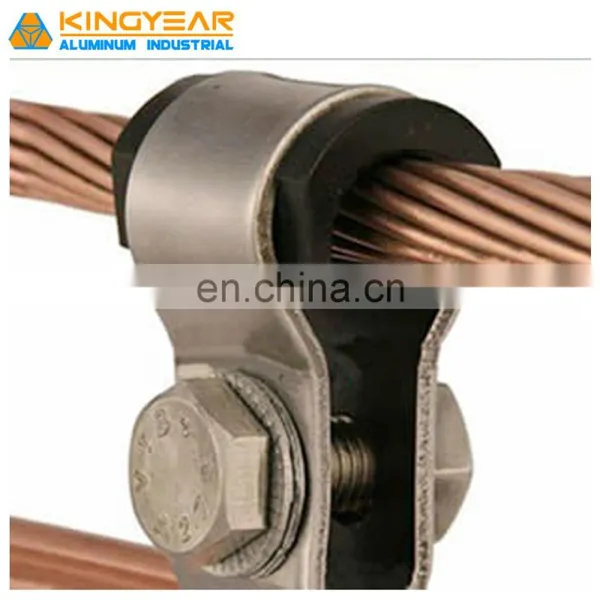

CCS Copper Clad Steel Wire Strand Conductor ASTM B228 for high frequency coaxial cables
PRODUCT DESCRIPTION
Applications It is used in frequency coaxial cable, messenger wire, telephone drop-wire and distribution wire; It is used as the lead-wire for electronics, carrying wire for railroad and wire for power transmission It is used in bind wire, jewellery chain, piano string cover and pipe insulation wire. Standard ASTM B227, BS 4087, ASTM B 452, ASTM B 869 Type 21A, 21HS, 30A, 30HS, 30EHS, 40A, 40HS, 40EHS Conductivity 21%IACS - 45%IACS Specification

No./size of strands

Structure
No./mm

Cross-section mm2

Rated strength kN

DC Resistance,Ω/km

Approx. weight kg/km
Grade 40 HS
Grade 30 HS
Grade 30 EHS
Grade 40
Grade 30
Grade 30
Grade 40
3 No. 5
3/4.62
50.32
37.30
41.20
52.80
0.881
1.174
413.41
417.73
3 No.6
3/4.11
39.80
30.90
34.00
43.40
1.111
1.481
327.84
331.26
3 No. 7
3/3.67
31.65
25.50
28.00
35.30
1.401
1.867
259.39
262.66
3 No. 8
3/3.26
25.10
21.10
23.00
27.95
1.766
2.354
206.11
208.34
3 No. 9
3/2.91
19.90
17.13
18.90
22.80
2.227
2.969
163.55
165.19
3 No.10
3/2.59
15.78
14.35
15.60
18.50
2.808
3.744
129.62
130.99
3 No. 12
3/2.05
9.90
7.65


4.465

81.551
82.414
7 No. 4
7/5.19
148.10
99.30
110.30
130.90
0.300
0.400
1218.7
1231.5
7 No.5
7/4.62
117.40
82.40
91.10
109.70
0.378
0.504
966.41
976.53
7 No.6
7/4.11
93.10
68.20
75.20
91.00
0.477
0.636
766.25
774.29
7 No. 7
7/3.67
73.87
56.40
61.90
75.20
0.601
0.802
608.06
614.46
7 No.8
7/3.26
58.56
46.60
50.90
61.80
0.759
1.011
482.02
487.07
7 No. 9
7/2.91
46.44
38.40
41.20
50.20
0.956
1.275
382.16
386.18
7 No. 10
7/2.59
36.83
30.90
34.00
40.90
1.206
1.60
303.14
306.26
19 No. 5
19/4.62
318.70
223.50
247.20
297.60
0.140
0.187
2634
2660.8
19 No. 6
19/4.11
252.70
185.10
203.90
247.00
0.176
0.176
2087.9
2110.2
19 No. 7
19/3.67
200.40
153.00
167.90
204.00
0.222
0.297
1656.3
1674.2
19 No. 8
19/3.26
158.90
126.30
138.10
167.70
0.281
0.374
1313.6
1327.2
19 No. 9
19/2.91
12610
104.10
113.50
136.20
0.354
0.471
1041.7
1052.6
PACKAGING&TRANSPORT

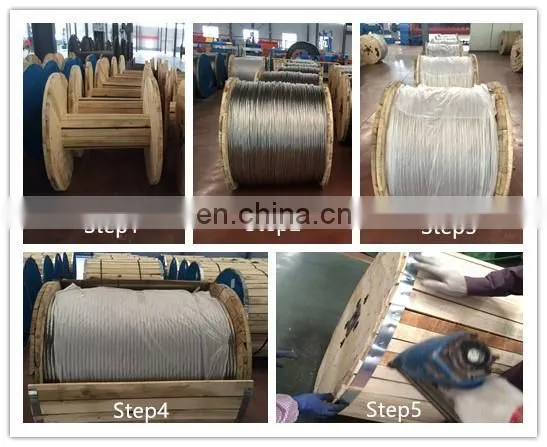

PACKAGING FLOW of CCS Copper Clad Steel Wire Strand Conductor ASTM B228 for high frequency coaxial cables

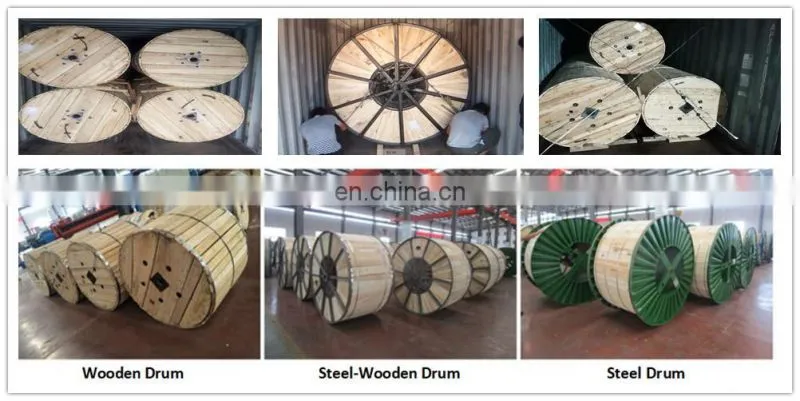

Different cable drum of CCS Copper Clad Steel Wire Strand Conductor ASTM B228 for high frequency coaxial cables
