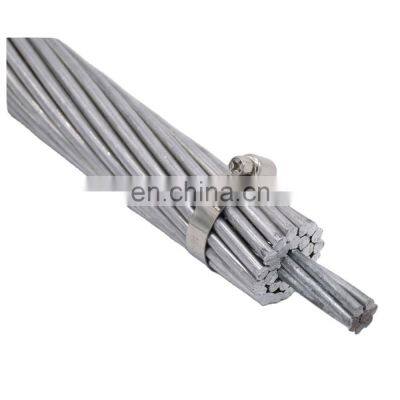

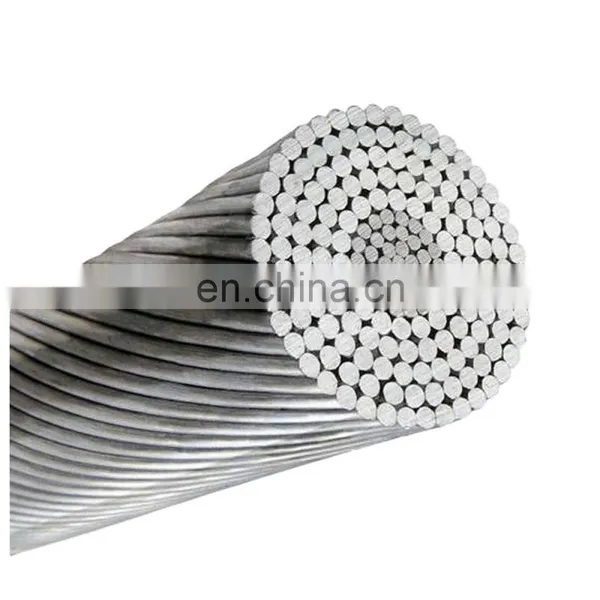

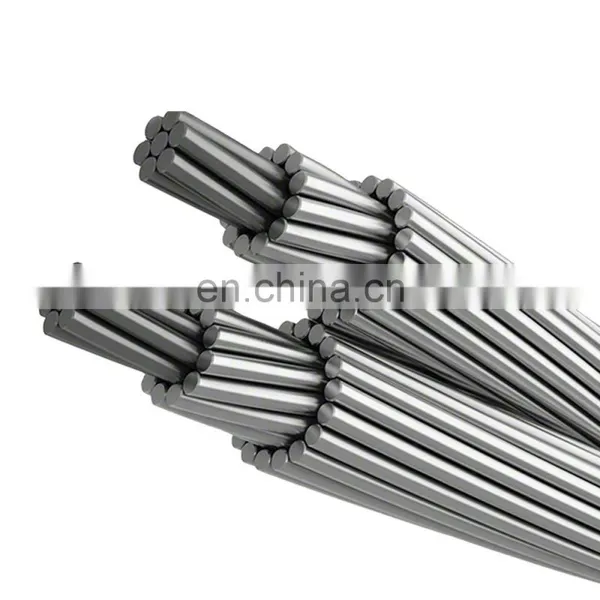

Acsr 95/15 Stranded Aluminum Conductor Overhead Power Transmission Line Acsr Power Cable With Grease

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Acsr 95/15 Stranded Aluminum Conductor Overhead Power Transmission Line Acsr Power Cable With Grease

WHY CHOOSE US

PRODUCT DESCRIPTION

KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable

The technical data of Acsr 95/15 Stranded Aluminum Conductor Overhead Power Transmission Line Acsr Power Cable With Grease as below for reference, any customized is available.

Code Name	Phase conductor							Bare Neutral Message			Nominal Weight ( kg/km ）		Allowable Ampacity
	Phase conductor							Bare Neutral Message			Nominal Weight ( kg/km ）		Allowable Ampacity
		Size & No.of wires	Insulation Thick (mm)	Nominal Dia.(mm)			Size & No.of wires	Rated Strength (kg)	XLPE	Aluminum	（ A ）
				Nominal Dia.(mm)
						Bare						OD
AAC
Pekingese	6-Solid	1.14	4.1	6.4	6-7	255	20.8	72.9	78
Collie	6-7	1.14	4.6	6.9	6-7	255	23.8	72.9	78
Cocker	6-7	1.52	4.6	7.7	6-7	255	32.7	72.9	78
Dachshund	4-Solid	1.14	5.2	7.5	6-7	400	26.8	114.6	103
Spaniel	4-7	1.14	5.9	8.2	6-7	400	29.8	116.1	103
Cairn	4-7	1.52	5.9	8.9	6-7	400	40.2	116.1	103
Doberman	2-7	1.14	7.4	9.7	2-7	612	38.7	184.5	136
Airedale	1-19	1.52	8.4	11.5	1-7	－	56.5	233.6	158
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	64	294.7	182
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	64	294.7	182
AAAC
Chihuahua	6-Solid	1.14	4.1	6.4	6-7	499	20.8	72.9	78
VIzsla	6-7	1.14	4.6	6.9	6-7	499	23.8	72.9	78
Harrier	4-Solid	1.14	5.2	7.5	4-7	798	26.8	116.1	103
Whippet	4-7	1.14	5.9	8.2	4-7	798	29.8	116.1	103
Schnauzer	2-7	1.14	7.4	9.7	2-7	1270	38.7	184.5	136
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2023	64	296.1	182
Hocler	1/0-19	1.52	9.4	12.5	1/0-7	2023	64	296.1	182
ACSR
Setter	6-Solid	1.14	4.1	6.4	6/6/01	540	20.8	72.9	78
Shepherd	6-7	1.14	4.6	6.9	6/6/01	540	23.8	72.9	78
Retriever	6-7	1.52	4.6	7.7	6/6/01	540	32.7	72.9	78
Eskimo	4-Solid	1.14	5.2	7.5	4/6/01	844	26.8	114.6	103
Terrier	4-7	1.14	5.9	8.2	4/6/01	844	29.8	116.1	103
Yorkshirc	4-7	1.52	5.9	8.9	4/6/01	844	40.2	116.1	103
Chow	2-7	1.14	7.4	9.7	2/6/01	1293	38.7	184.5	136
Labrador	1-19	1.52	8.4	11.5	1/6/01	1610	56.5	233.6	158
Bloodhound	1/0-7	1.52	9.3	12.4	1/0-6/1	1987	64	294.7	182
Bull	1/0-19	1.52	9.4	12.5	1/0-6/1	1987	64	294.7	182

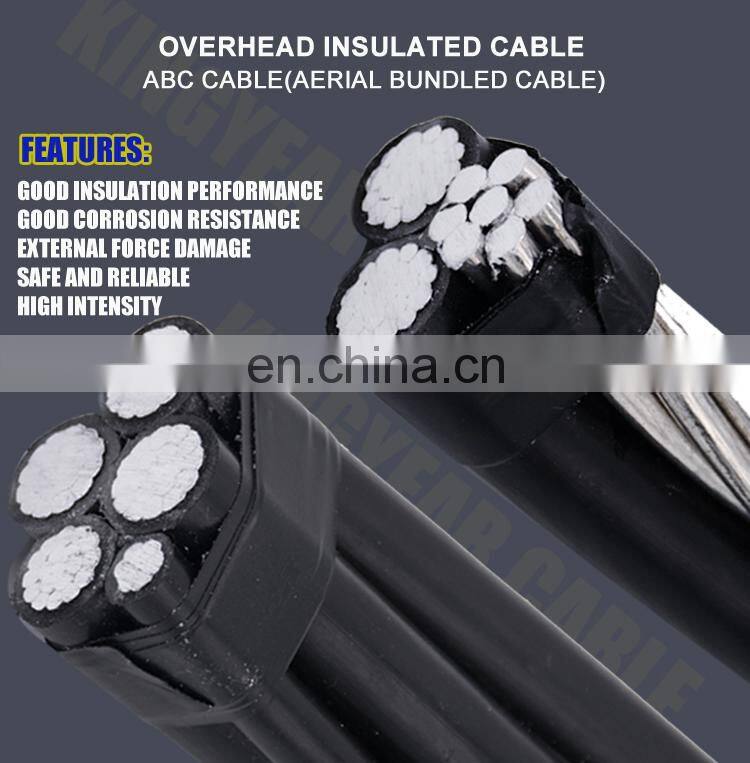

Duplex Service Drop ABC Cable Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting.For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Triplex Service Drop ABC Cable Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
Quadruplex Service Drop. ABC Cable Applications:Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

Similar Products（Different structure; Different size）

Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.

Any customized standard are all can be designed by our R&D team.

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of AAC/AAAC/ACSR bare conductor, power cable, ABC cable. 1 office building of international trade.

TESTING MACHINE SHOWN: Acsr 95/15 Stranded Aluminum Conductor Overhead Power Transmission Line Acsr Power Cable With Grease testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE of acsr 95/15 with grease acsr overhead power transmission line power cable stranded aluminum conductor.

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of Acsr 95/15 Stranded Aluminum Conductor Overhead Power Transmission Line Acsr Power Cable With Grease as below, customized is accepted.

Some of our products packaging records shown:

They are about steel-core aluminum stranded conductor acsr cable / acsr conductor.

FAQ

Q:I didn't find the acsr bare conductor electric cable which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
