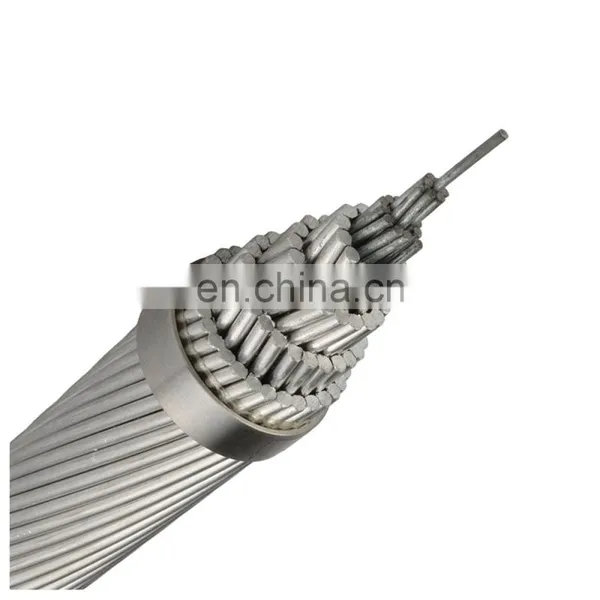

Acsr Conductor Sizes 300mm2 Aluminium Acsr Draht Schrott Conductor Polyethylene Acsr photo-3

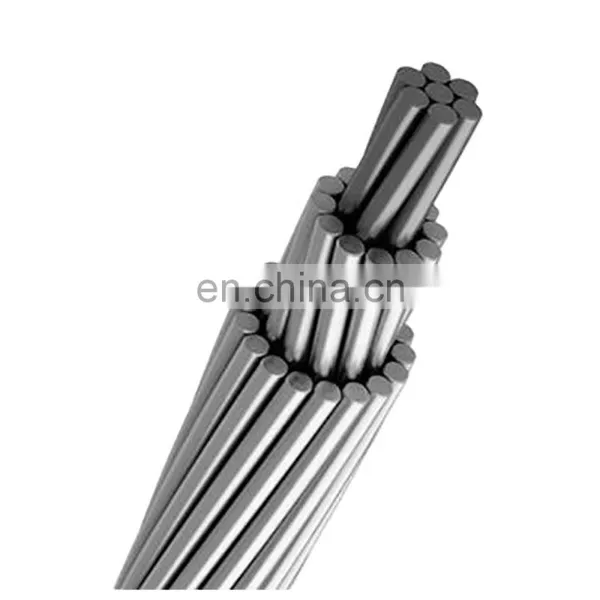

Acsr Conductor Sizes 300mm2 Aluminium Acsr Draht Schrott Conductor Polyethylene Acsr photo-4

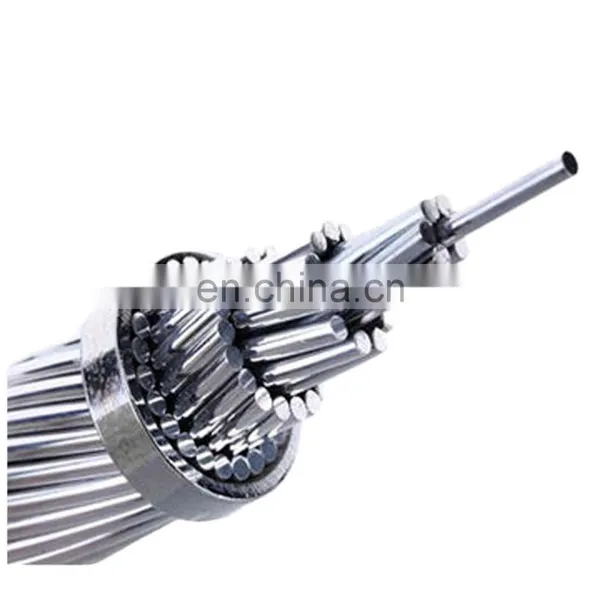

Acsr Conductor Sizes 300mm2 Aluminium Acsr Draht Schrott Conductor Polyethylene Acsr photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Henan Kingyear Aluminum Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us


acsr conductor sizes 300mm2 aluminium acsr draht schrott conductor polyethylene acsr
Products Description
1. Applications:
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. Aluminum 1350 wires and the steel cores are concentrically stranded and wrapped helically around a central wire. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.

2. Standard:
IEC61089, BS 215, ASTM B232, CSA C49, DIN48204, JIS C3110

3. Construction (Aluminum/Steel):
6/1, 7/1, 8/1, 12/7, 16/19, 24/7, 26/7, 30/7, 30/19, 36/1, 45/7, 54/7, 30/19, 72/7, 76/19, 84/196.

4. Galvanization:
Class A, B or C.
The technical data of ACSR(Aluminum Conductor Steel Reinforced) Bare Conductor Cable as below for reference, any customized is available.
Product parameters
ASTM B 232
Code Name
Size
No./Dia.of Stranding Wires
Approx. Overall Dia.
Approx. Weight
AWG or MGM
Alum.
ST.
No./mm
No./mm
mm
kg/km
Swanate
4
7/1.96
1/2.61
6.53
93
Sparrow
2
6/2.67
1/2.67
8.01
129
Sparate
2
7/2.47
1/3.30
8.24
148
Robin
1
6/3.00
1/3.00
9
163
Raven
1/0
6/3.37
1/3.37
10.11
206
Quail
2/0
6/3.78
1/3.78
11.34
259
Pigeon
3/0
6/4.25
1/4.25
12.75
327
Penguin
4/0
6/4.77
1/4.77
14.31
412
Waxwing
266.8
18/3.09
1/3.09
15.45
422
Merlin
336.4
18/3.47
1/3.47
17.35
532
Linnet
336.4
26/2.89
7/2.25
18.31
656
Oriole
336.4
30/2.69
7/2.69
18.83
737
Chickadee
397.5
18/3.77
1/3.77
18.85
629
Ibis
397.5
26/3.14
7/2.44
19.88
775
Lark
397.5
30/2.92
7/2.92
20.44
871
Pelican
477
18/4.14
1/4.14
20.7
754
Flicker
477
24/3.58
7/2.39
21.49
877
Hawk
477
26/3.44
7/2.67
21.8
931
Hen
477
30/3.20
7/3.20
22.4
1044
Osprey
556.5
18/4.47
1/4.47
22.35
880
Parakeet
556.5
24/3.87
7/2.58
23.22
1023
Dove
556.5
26/3.72
7/2.89
23.55
1085
Eagle
556.5
30/3.46
7/3.46
24.21
1219
Peacock
605
24/4.03
7/2.69
24.2
1112
Squab
605
26/3.87
7/3.01
24.51
1180
WoodDuck
605
30/3.61
7/3.61
25.25
1325
Kingbird
636
18/4.78
1/4.78
23.88
1007
Rook
636
24/4.14
7/2.76
24.84
1170
Grosbeak
636
26/3.97
7/3.09
25.15
1240
Scoter
636
30/3.70
7/3.70
25.88
1393
Swift
636
36/3.38
1/3.38
23.62
947
Flamingo
666.6
24/4.23
7/2.82
25.4
1226
Gannet
666.6
26/4.07
7/3.16
25.76
1300
Stilt
715.5
24/4.39
7/2.92
26.31
1316
Starling
715.5
26/4.21
7/3.28
26.68
1396
Redwing
715.5
30/3.92
19/2.35
27.43
1553
Tern
795
45/3.38
7/2.25
27.03
1300
Condor
795
54/3.08
7/3.08
27.72
1461
Cuckoo
795
24/4.62
7/3.08
27.74
1461
Drake
795
26/4.44
7/3.45
28.11
1550
Coot
795
36/3.77
1/3.77
26.41
1184
Mallard
795
30/4.14
19/2.48
28.96
1728
Ruddy
900
45/3.59
7/2.40
28.73
1472
Canary
900
54/3.28
7/3.28
29.52
1554
Rail
954
45/3.70
7/2.47
29.61
1560
Catbird
954
36/4.14
1/4.14
28.95
1421
Cardinal
954
54/3.38
7/3.38
30.42
1753
Ortlan
1033.5
45/3.85
7/2.57
30.81
1690
Tanager
1033.5
36/4.30
1/4.30
30.12
1539
Curlew
1033.5
54/3.52
7/3.52
31.66
1900
Bluejay
1113
45/4.00
7/2.66
31.86
1821
Bunting
1192.5
45/4.14
7/2.76
33.12
1949
Grackle
1192.5
54/3.77
19/2.27
33.97
2190
Bittern
1272
45/4.27
7/2.85
34.17
2080
Pheasant
1272
54/3.90
19/2.34
35.1
2335
Skylark
1272
36/4.78
1/4.78
33.42
1895
Dipper
1351.5
45/4.40
7/2.92
35.16
2210
Martin
1351.5
54/4.02
19/2.41
36.17
2481
Bobolink
1431
45/4.53
7/3.02
36.24
2342
Plover
1431
54/4.14
19/2.48
37.24
2628
Nuthatch
1510.5
45/4.65
7/3.10
37.2
2470
Parrot
1510.5
54/4.25
19/2.55
38.25
2773
Lapwing
1590
45/4.77
7/3.18
38.16
2599
RELATED PRODUCTS
Similar Products（Different structure; Different size）AAC(All Aluminum Conductor)
AAAC(All Aluminum Alloy Conductor)
ACSR(Aluminun Conductor Steel Reinforced)
ACSR/AW ACSR/AS ACSR/AC
AACSR TACSR TACSR/AW
ACAR(Aluminum Conductor Aluminum Alloy Reinforced)
ACCC(Aluminum Composite Core Conductor)
Galvanized Steel Wire /Strand(GSW,SC/GZ)
Aluminum Clad Steel Wire(Alumoweld,ACS,SC/AC)
Aluminum Rod
COMPANY STRENGTH

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of ABC Cable,Bare Conductor. 1 office building of international trade.
TESTING MACHINE SHOWN: ABC Cable,Bare Conductor testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of acsr conductor sizes 300mm2 aluminium acsr draht schrott conductor polyethylene acsr as below, customized is accepted.
Some of our products packaging records shown:
They are about ABC cable,bare conductor,power cable.
FAQ
Q:I didn't find the acsr conductor sizes 300mm2 aluminium acsr draht schrott conductor polyethylene acsr which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?
A:It depends on whether we just has the stock for your type. Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
