aac/ aaac/ acsr/ acar/ accc bare acsr 1272 pheasant overhead transmission line

Name: aac/ aaac/ acsr/ acar/ accc bare acsr 1272 pheasant overhead transmission line
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

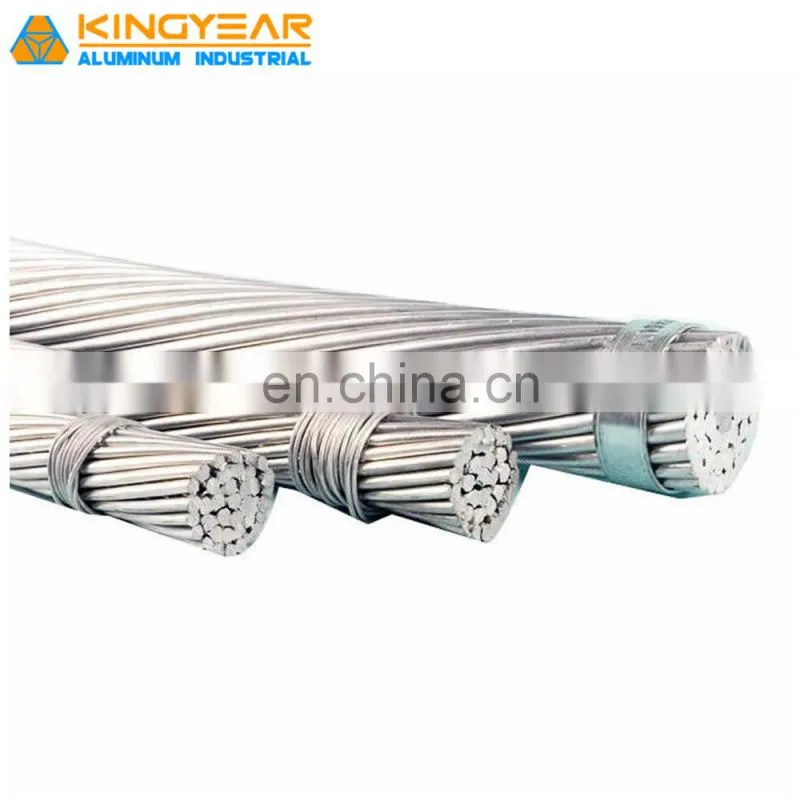

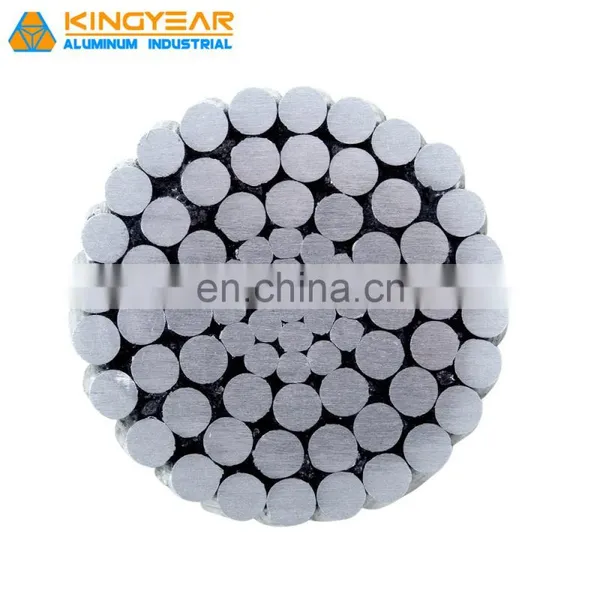

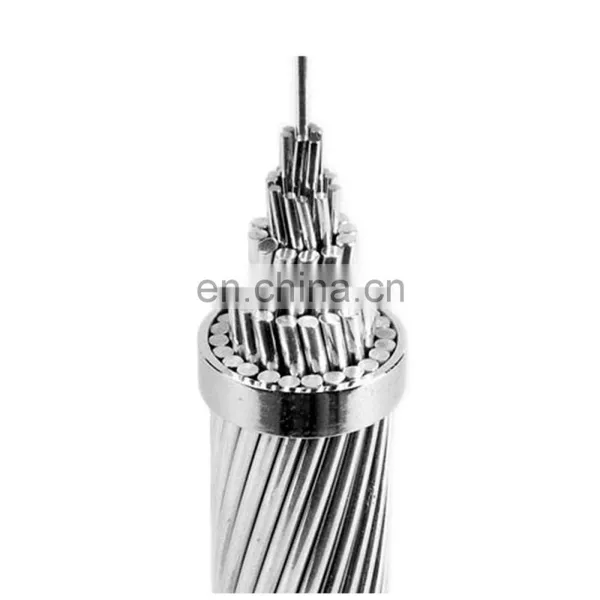

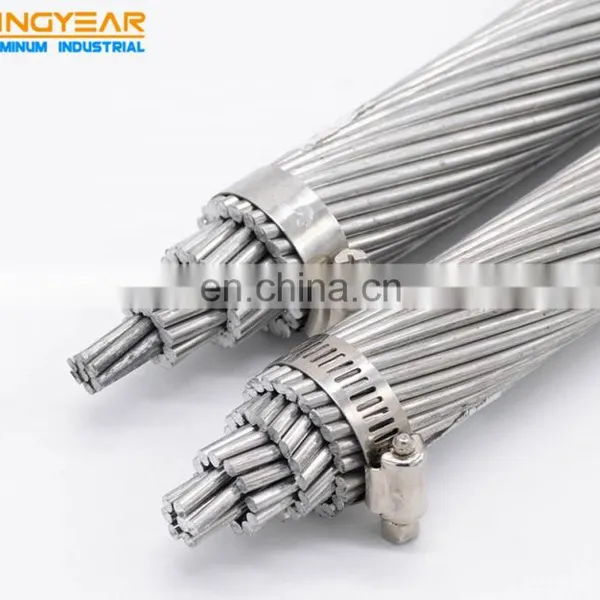

aac/ aaac/ acsr/ acar/ accc bare acsr 1272 pheasant overhead transmission line

Products Description

Applications:
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy 6201-T81 gives AAAC higher resistance to corrosion than ACSR.
Advantage:
1. AAAC exhibits excellent corrosion resistance specially in sea coast areas and in polluted industrial areas due to absence of steel core.
2. Since AAAC is homogeneous (with all strands of Aluminium Alloy) with no steel component the resistance of AAAC is lower as compared to ACSR.
3. Higher Ampacity: AAAC can carry atleast 15-20% extra current as compared to ACSR of equal size.
4. Experience in foreign countries shows that All Aluminium Alloy Conductors are in service for over 60 years, which is about double the life of ACSR Conductors.

Standard
ASTM B399, IEC61089, BS 3242, BS EN 50182, DIN 48201, AS 1531

The technical data of AAAC All Aluminum Alloy Bare Conductor Cable as below for reference,any customized is available.

Product parameters

ASTM B 399/B 399M
Code Name	Total Area			1350 Grade Equivalent	No./Dia. of Wire	Approx. Overall Diameter	Approx. Weight	Calculated Breaking Load	Max.DC Resistance at 20° C


		AWG or MCM	mm2	(Approx.) AWG or MCM	No. / mm	mm	kg/km	kN	Ohm/km
Akron	30.6	15.5	6	7/1.68	5.04	43	4.9	2.1588
Alton	48.7	24.7	4	7/2.12	6.36	68	7.8	1.3557
Ames	77.5	39.2	2	7/2.67	8.01	108	12.4	0.8547
Azusa	123.3	62.4	1	7/3.37	10.11	171	18.9	0.5365
Anaheim	155.4	78.6	2/0	7/3.78	11.34	216	23.8	0.4264
Amherst	195.7	99.3	3/0	7/4.25	12.75	272	30	0.3373
Alliance	246.9	125.1	4/0	7/4.77	14.31	343	37.8	0.2678
Butte	312.8	158.6	266.8	19/3.26	16.3	435	46.5	0.2112
Canton	394.5	199.9	336.4	19/3.66	18.3	548	58.6	0.1676
Cairo	465.4	236.4	397.5	19/3.98	19.9	649	69.3	0.1417
Darien	559.5	283.6	477	19/4.36	21.8	778	83.1	0.1181
Elgin	652.6	331	556.5	19/4.71	23.55	908	97	0.1012
Flint	740.8	374.5	636	19/3.59	25.13	1028	107.4	0.0894
Greeley	927.2	469.6	795	19/4.02	28.14	1289	134.6	0.0713

IEC 61089
IEC 61089
Code Name	Nominal	No./Nominal diameter of wires	Approximate Overall Diameter	Approximate Weight	Nominal Breaking Load	Nominal DC Resistance at 20°C


		mm2	No./mm	mm	kg/km	KN	ohm/km
10	10	7/1.35	4.05	27.4	2	2.8633
16	16	7/1.71	5.13	43.8	3	1.7896
25	25	7/2.13	6.39	68.4	4.5	1.1453
40	40	7/2.70	8.1	109.4	6.8	0.7158
63	63	7/3.39	10.17	172.3	10.4	0.4545
100	100	19/2.59	12.95	274.8	17	0.2877
125	125	19/2.89	14.45	343.6	21.3	0.2302
160	160	19/3.27	16.35	439.8	26.4	0.1798
200	200	19/3.66	18.3	549.7	32	0.1439
250	250	19/4.09	20.45	687.1	40	0.1151
315	315	37/3.29	23.03	867.9	52	0.0916
400	400	37/3.71	25.97	1102	64	0.0721
450	450	37/3.94	27.58	1239.8	72	0.0641
500	500	37/4.15	29.05	1377.6	80	0.0577
560	560	37/4.39	30.73	1542.9	89.6	0.0515
630	630	61/3.63	32.67	1738.3	100.8	0.0458
710	710	61/3.85	34.65	1959.1	113.6	0.0407
800	800	61/4.09	36.81	2207.4	128	0.0361
900	900	61/4.33	38.97	2483.3	144	0.0321
1000	1000	61/4.57	41.13	2759.2	160	0.0289
1120	1120	91/3.96	43.56	3093.5	179.2	0.0258
1250	1250	91/4.18	45.98	3452.6	200	0.0231
1400	1400	91/4.43	48.73	3866.9	224	0.0207
1500	1500	91/4.58	50.38	4143.1	240	0.0193

DIN 48201 Part 5
Nominal Area	Calculated Area	Stranding and Wire Diameter	Overall Diameter	Weight	Calculated Breaking Load	Max.DC Resistance at 20° C


mm2	mm2	No.xmm	mm	kg/km	daN	Ω/Km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9	135	810	0.5786
55	48.35	19/1.80	9	133	860	0.595
70	65.81	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	116.99	19/2.80	14	322	1910	0.2459
150	147.11	37/2.25	15.8	406	2570	0.196
185	181.62	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.3	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/2.89	26	1105	6190	0.0722
500	499.83	61/3.23	29.1	1381	7600	0.0578
625	626.2	91/2.96	32.6	1733	9690	0.04625
800	802.1	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897

COMPANY STRENGTH

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of ABC Cable/Bare Conductor/Power Cable, 1 office building of international trade.

TESTING MACHINE SHOWN: All aluminum alloy conductor AAAC bare conductor testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of All aluminum alloy conductor AAAC bare conductor as below, customized is accepted.

Some of our products packaging records shown:

They are about aac/ aaac/ acsr/ acar/ accc bare acsr 1272 pheasant overhead transmission line.

FAQ

Q:I didn't find the aac/ aaac/ acsr/ acar/ accc bare acsr 1272 pheasant overhead transmission line which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
