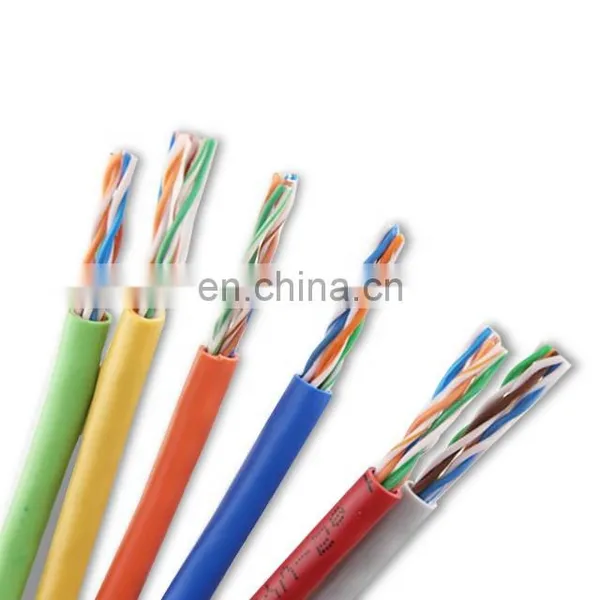

High Quality Rj45 Cat5e Computer Network Communication Wire Price PVC Copper Cat6 Patch Lan Cable Electrical Wires and Cables
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1994
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Intelligent Building Control System Cable 2x2x0.8mm KNX EIB BUS Wire PVC Copper Electric Power Wires and CablesNegotiableMOQ: 1 -
2.5mm Banana Head Audio Speaker Cable 3ft Audio Video Cables for Home Theater 2 Channel High Quality Stereo Wire AV Wires CablesNegotiableMOQ: 1
-
Indoor Telephone Communication Cable 26Awg Audio Connection Cable Transparent Blue Pvc WiresNegotiableMOQ: 1
-
26Awg Shielded Telephone Fax Cable Communication Cable 4 Core Equipment Signal Control Electrical WiresNegotiableMOQ: 1
-
High Quality CAT6 Computer Patch Cable RJ45 Connector Indoor Network Cable Patch CordNegotiableMOQ: 1
Network communication cable Cat5e Cat6 Cat6a Cat7 Cat8
Product Name: NETWORK-250 (Cat5e Network communication Cable)
Model specification: (UTP-5e) HSYV-5e 4*2*0.5
product description
Conductor: 0.5 BC (OFC oxygen-free copper), high-purity oxygen-free copper conductor, to ensure low resistance (the standard is less than 29ohms/305 meters for super five types; less than 21 ohms/305 meters for six types) to ensure accurate signal transmission, The finished product can be extended in special circumstances (such as applications with ultra-standard wiring lengths of 150meters/160 meters);

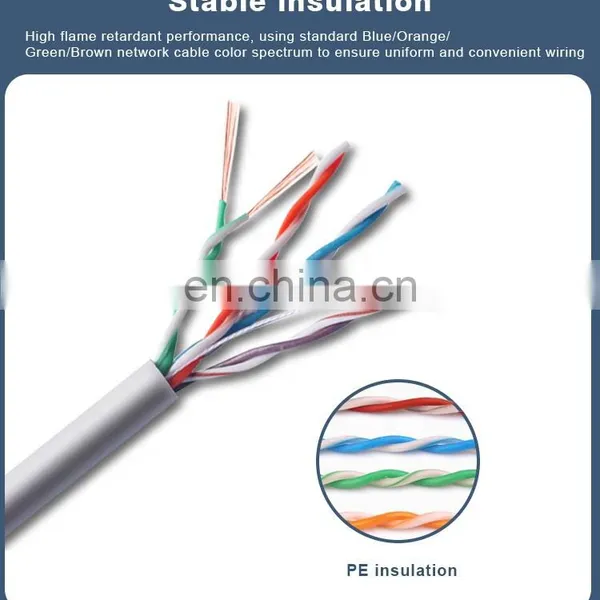

Insulation: HDPE ID0.9 (imported high-density PE), excellent electrical performance; standard blue/orange/green/brown network cable chromatogram to ensure uniform and convenient wiring;

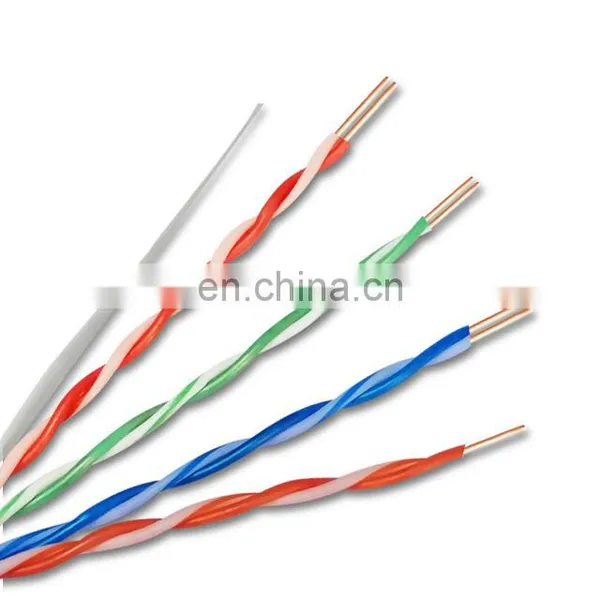

Pair twist: 4 pairs, each pair has inconsistent pitch to ensure excellent crosstalk;
Cable formation: 4 pairs of twisting, increase the flexibility of the finished product and make it less deformed, and minimize the impact on the final performance of the cable;

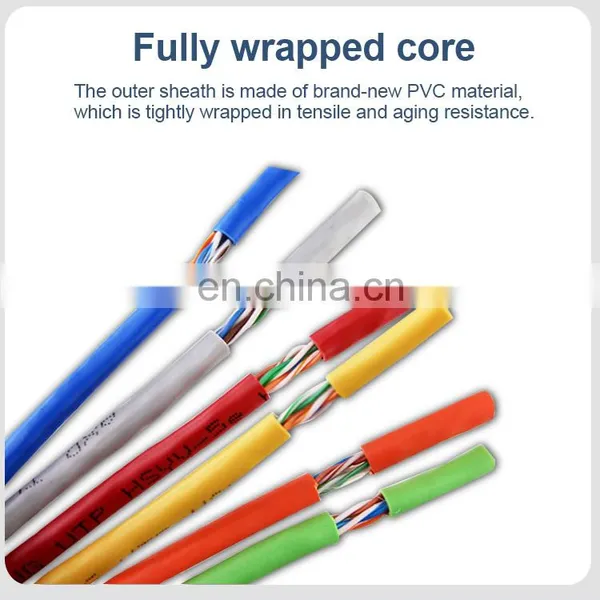

Sheath: new flame-retardant PVC material OD5.3 (sheath color includes light gray/blue/red/orange/green/black/yellow) squeezed tube plus 1 tear rope (250D/3) to provide better protection and Fire-retardant performance, compact cable structure, easy to install and use;
Logo: printing meter meter, one logo per meter, easy to measure and cut when using, while ensuring the product length is accurate;
Packing: 305m/box (1 000FT/conventional), 3 boxes/outer box (pieces), can be packed according to customer requirements.
Size: 24x37x37cm
Weight：13KG
Features:Features:
The conductor is produced by Jiangxi Copper's oxygen-free copper rod through a wire-insulation integrated "series production cable", with stable quality and high speed;
The insulation adopts imported high-performance high-density polyethylene plastic;
The twisting device is used for twisting to ensure stable and excellent performance of subsequent finished products;
The cabling adopts cantilever single twist, the structure is stable and consistent, and the speed is fast;
The sheath is made of flame-retardant polyvinyl chloride material, extruded tube type, with a built-in tear rope, which is
convenient for tearing off the sheath during construction;
The cable body logo adopts jet printing, jet printing meter meter, jet printing distance is 1 meter, 305 meters/carton packaging,
in cable with the international 1000 feet requirement (1000 feet is 304.8 meters);
The finished product has been sampled by "TFI-04 High Frequency Digital Cable Test System" and meets the requirements of Category
5e cables;
The product has passed the certification of China Taier Certification Center (TLC certification), which is equivalent to the
network access certification of the communications industry.
The overall packaging of the product (305 meters/box) is elegant and atmospheric.The conductor is produced by Jiangxi Copper's oxygen-free copper rod through a wire-insulation integrated "series production cable
", with stable quality and high speed;
The insulation adopts imported high-performance high-density polyethylene plastic;
The twisting device is used for twisting to ensure stable and excellent performance of subsequent finished products;
The cabling adopts cantilever single twist, the structure is stable and consistent, and the speed is fast;
The sheath is made of flame-retardant polyvinyl chloride material, extruded tube type, with a built-in tear rope, which is
convenient for tearing off the sheath during construction;
The cable body logo adopts jet printing, jet printing meter meter, jet printing distance is 1 meter, 305 meters/carton packaging,
in cable with the international 1000 feet requirement (1000 feet is 304.8 meters);
The finished product has been sampled by "TFI-04 High Frequency Digital Cable Test System" and meets the requirements of Category
5e cables;
The product has passed the certification of China Taier Certification Center (TLC certification), which is equivalent to the
network access certification of the communications industry.
The overall packaging of the product (305 meters/box) is elegant and atmospheric.
Use range:Use range:
It is suitable for local area network (LAN) computer networking cable. When used, the product is terminated with a super five RJ45
crystal head or module. It can be used for Ethernet (1000BASE-T4) with a transmission frequency of up to 1000M. It is also called
"Gigabit" on the market network cable";
Twisted pair cable for HD video transmission for CCTV system;
Access control video intercom cableIt is suitable for local area network (LAN) computer networking cable. When used, the product is terminated with a super five RJ45
crystal head or module. It can be used for Ethernet (1000BASE-T4) with a transmission frequency of up to 1000M. It is also called
"Gigabit" on the market network cable";
Twisted pair cable for HD video transmission for CCTV system;
Access control video intercom cable
crystal head or module. It can be used for Ethernet (1000BASE-T4) with a transmission frequency of up to 1000M. It is also called
"Gigabit" on the market network cable";
Twisted pair cable for HD video transmission for CCTV system;
Access control video intercom cableIt is suitable for local area network (LAN) computer networking cable. When used, the product is terminated with a super five RJ45
crystal head or module. It can be used for Ethernet (1000BASE-T4) with a transmission frequency of up to 1000M. It is also called
"Gigabit" on the market network cable";
Twisted pair cable for HD video transmission for CCTV system;
Access control video intercom cable
