Cat7 Anti-jamming network cable Cat8 Core Shielded communication Ethernet Lan Computer Networking electric wires cables

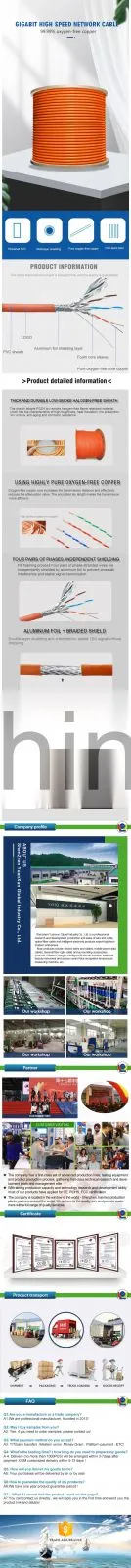

product name:

Low-smoke halogen-free double-shielded Category 7 cable (NETWORK-700)

Model specification:

(SFTP-7)HSYVP-7 4*2*0.57

Product Standards:

IEC 11801:2002(Category7)/IEC 61156-5:2002(Category7)/IEC

61156-7:

2003/ANSI TIA/EIA-568C.2/IEC 60332-1/IEC 60332-3/IEC 60752-4/IEC

60134

product description:

conductor:

0.57 BC (OFC oxygen-free copper, 23AWG);

insulation:

PEF (skin-foam-skin) ID1.3 (imported high-density PE), international network cable chromatography;

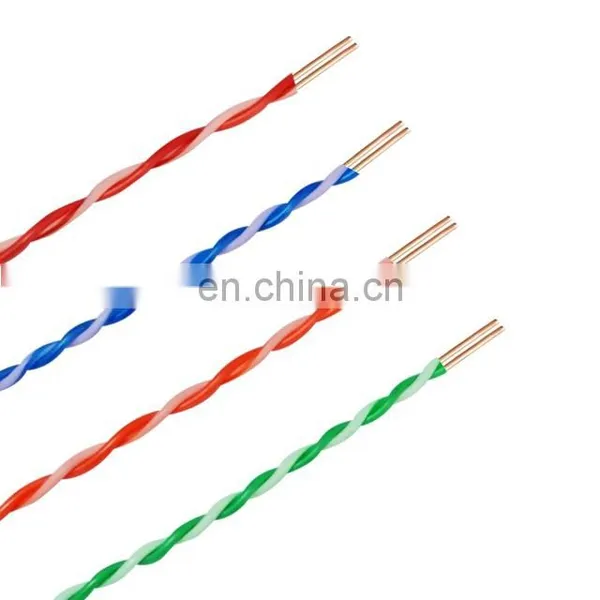

Pair twist:

4 pairs;

Shield:

100% shielding of each pair of ultra-thick aluminum foil;

Cable:

4 pairs twisted;

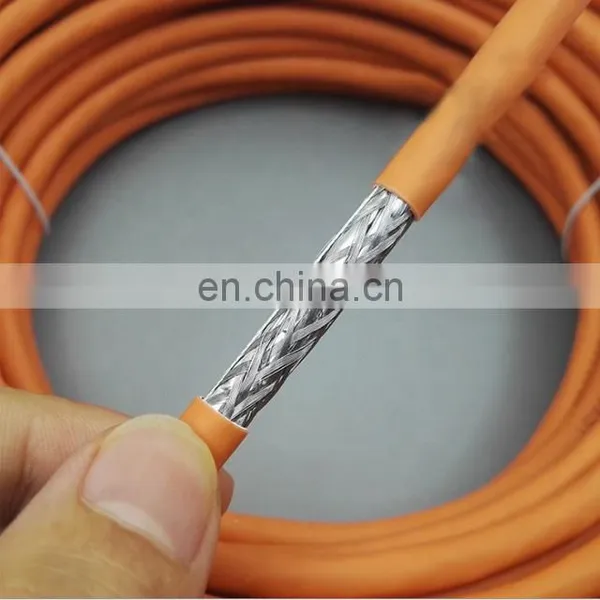

Total block:

26AWG tinned copper ground wire + 128/0.1 tinned copper high-density woven mesh;

jacket:

Orange LSZH (flame retardant low-smoke halogen-free environmental protection material) OD8.0

Logo:

Printing meter to ensure the length is accurate

package:

305 meters/axis (1 000FT/conventional)

Size:

40*40*25cm

Weight:

22kg

Other series: UTP-5e/UTP-5/FTP-5e/FTP-5/S-UTP-5e/UTP-6/UTP-6a/ FTP-6a:4*2*0.5/4*2*0.511/4*2*0.6

UTP -5e:4*2*0.5/4*2*0.511/4*2*0.6/4*2*(7/0.2)

UTP -5:4*2*0.5/4*2*0.511/4*2*0.6/8*2*0.5/16*2*0.5/25*2*0.5

S -UTP -6:4*2*0.57

S / FTP -cat :4*2*0.57

Product features: The conductor is produced by Jiangxi Copper's oxygen-free copper rod by drawing-insulation integrated "series production cable", the quality is stable and consistent, and the speed is fast;

The insulation adopts imported high-performance high-density polyethylene plastic, and advanced production technology of skin-foam-skin to improve the transmission performance of the long cable;

The twisting device is used for twisting to ensure stable and excellent performance of subsequent finished products;

The cabling adopts cantilever single twist, the structure is stable and consistent, and the speed is fast;

The sheath is made of flame-retardant, low-smoke and halogen-free environmental protection materials, extruded tube type;

The cable body logo adopts jet printing, jet printing meter meter, printing distance of 1 meter, 305 meters/axis packaging, in cable with the international 1000 feet requirement (1000 feet is 304.8 meters);

The finished product has been sampled by "TFI-04 High-frequency Digital Cable Test System" and meets the requirements of Category 7 cables;

The overall packaging of the product (305 meters/axis/box) is elegant and atmospheric.

Physical parameters:

Minimum bending radius: 80mm (3.15");

Installation temperature: 0 degrees Celsius to +60 degrees Celsius;

Working temperature: -20 degrees Celsius to +70 degrees Celsius;

Storage temperature: -20 degrees Celsius to +70 degrees Celsius;

Weight: 22.3kg (49.1lbs)/305m (1000FT)/axis

Use range:

It is suitable for local area network (LAN) computer networking cables. When used, the product is terminated with seven types of special shielded crystal heads or modules. It can be used for Ethernet (10000BASE-T4) with a transmission frequency of up to 10 000M. It is also called " 10 Gigabit network cable".

High-speed video twisted-pair transmission cable, connecting millions of high-definition cameras, the transmission distance is farther than the super five categories, 4 pairs of cables can transmit multiple video image signals, and can also transmit video + control signals, which is more economical and practical!

It meets the requirements of ISO/IEC 11801: 2002 second edition for class F and ANSI/TIA/EIA-568C.1 and C.2 for class 7 specifications. The maximum frequency is within 600MHz, which is an enhanced class of extended class 6.

The latest type of twisted pair in the ISO/IEC 11801 Type 7/Class F standard [1] is mainly to adapt to the application and development of 10 Gigabit Ethernet technology. But it is no longer a kind of unshielded twisted pair, but a shielded twisted pair, so it can provide at least 500MHz comprehensive attenuation to crosstalk ratio and 600MHz overall bandwidth, it is Category 6 and Super Category 6 wire The transmission rate can reach 10Gbps. In the seven types of cables, each pair of wires has a shielding layer, and the four pairs of wires together have a common large shielding layer. From the physical structure point of view, the additional shielding layer makes the seven types of cables have a larger wire diameter.

Another important difference lies in its ability to connect to the hardware. The parameters of the seven types of systems require that all wire pairs provide at least 60dB of integrated near-end crosstalk when the connector is at 600MHz. However, the Category 5 system only requires 43dB at 100MHz, and the value of Category 6 at 250MHz is 46dB..
