2020 hot sale manual block machine

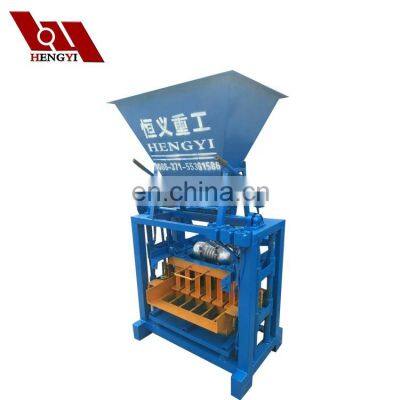

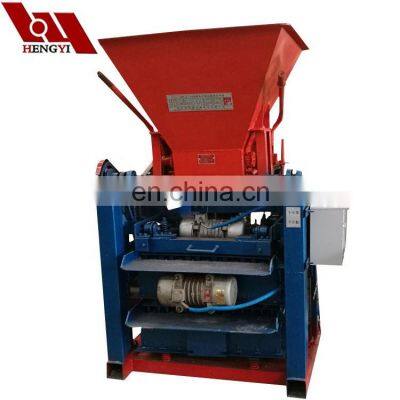

Product Introduction of manual block machine
SPECIFICATIONS FOR QT4-35B BLOCK MAKING MACHINE |
||||
1 |
Model |
QT4-35B |
||
2 |
Cycle Time |
35s |
||
3 |
Total Power |
13.3KW |
||
4 |
Voltage |
220V/380V(Customized) |
||
5 |
Dimensions(L*W*H) |
1120*1400*1700mm |
||
6 |
Vibration Force |
35KN |
||
7 |
Weight |
1.1T |
||
8 |
Pallet Dimensions |
850*480*30mm |
||
9 |
Pallet needed |
500pcs |
||
Block Sizes |
Cycle Time |
Pcs/Mould |
Pcs/Shift |
240*115*53mm |
35s |
26pcs |
23000pcs |
390*190*190mm |
35s |
4pcs |
3800pcs |
450*225*150mm |
35s |
3pcs |
2000pcs |

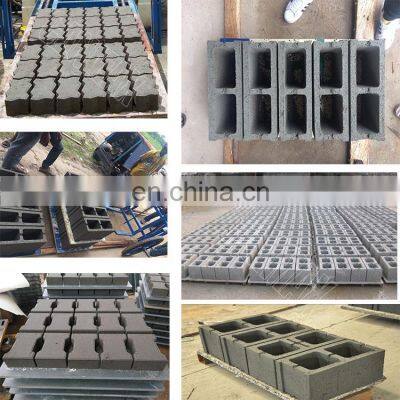

Block Samples
Finished Products
Main Features of manual block machine
1) Simple structure ,easy to operation and maintation.
2) Adopting national certified steel and exported electrical and other keyparts.
3) Make different kinds of blocks by changing moulds
4) The machine not only make concrete blocks,but also paving blocks.
5) Low investment,high efficiency and high profit.
Machine Parts
Name: Mould
Brand: Hengyi
Original: China
The mould is the key of quality of block, and also decide the working life of block machine.
Our mould adopts national certified steel, the thickness is 8-12mm.Besides, we also do some special treatment.
Main Features
Name: Hopper
The hopper adopts the funnel-shapes,so the raw material is easier fall into the mould..
Machine Parts
Name: Control System
It's very easy to operate.
Main Features
Name: Motor
The motor is most parts of the machine.The voltage of the motor can be customized.The motor we use is great quality brand in China with copper wire.
Model |
Cycle Time(s) |
Power(KW) |
Pcs/mould
(240*115*53mm)
|
Capacity/8Hr
(240*115*53mm)
|
4-45 mobile block machine |
40~45s |
6.6KW |
24pcs |
15000pcs |
4-22 block machine |
20~22s |
19.65KW |
26pcs |
36000pcs |
4-25BH hydraulic block machine |
25s |
11.55KW |
26pcs |
31500pcs |
4-26 block machine |
26s |
14.25KW |
26pcs |
30000pcs |
4-35 block machine |
35s |
4.8KW |
26pcs |
23000pcs |
4-40 block machine |
30s |
9.55KW |
26pcs |
27000pcs |
4-15 block machine |
15s |
26.5KW |
26pcs |
46000pcs |
6-15 block machine |
15s |
36.4KW |
30pcs |
57600pcs |
8-15 block machine |
15s |
45.5KW |
42pcs |
80640pcs |
10-15 block machine |
15s |
50.88KW |
59pcs |
140000pcs |
Model |
Video Links |
4-45 mobile block machine |
https://youtu.be/c_KefS6xrqc |
4-22 block machine |
https://youtu.be/7H5NPT1u2vw |
4-25 hydraulic block machine |
https://youtu.be/Q0n_iODl5Js |
4-26 block machine |
https://youtu.be/dIgdFXuYprc |
4-35 block machine |
https://youtu.be/C7y8dn3xUr8 |
4-40 block machine |
https://youtu.be/Su27fMjHuvo |
4-15 block machine |
https://youtu.be/ivEqEyefJcw |
6-15 block machine |
https://youtu.be/RUMM7yoeF4w |
8-15 block machine |
https://youtu.be/0DGx4Ih4vgw |
10-15 block machine |
https://youtu.be/lYrcuoccjeQ |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

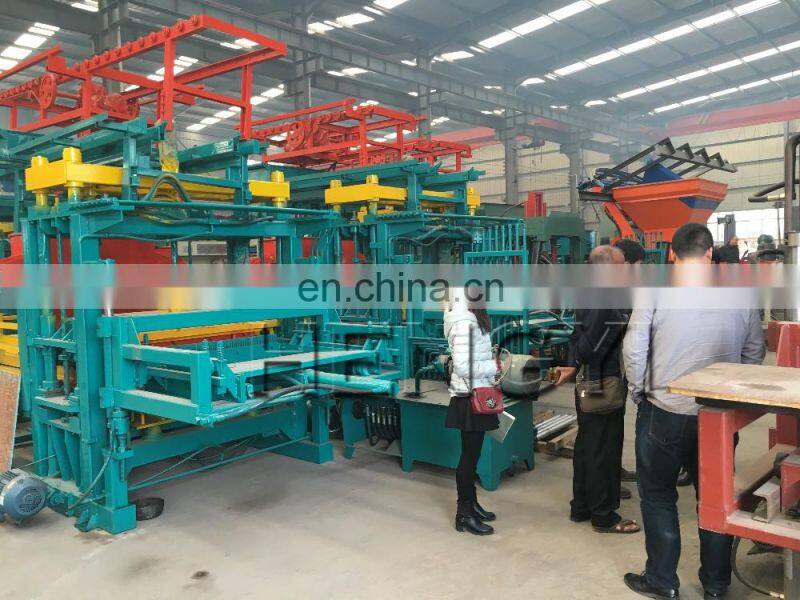

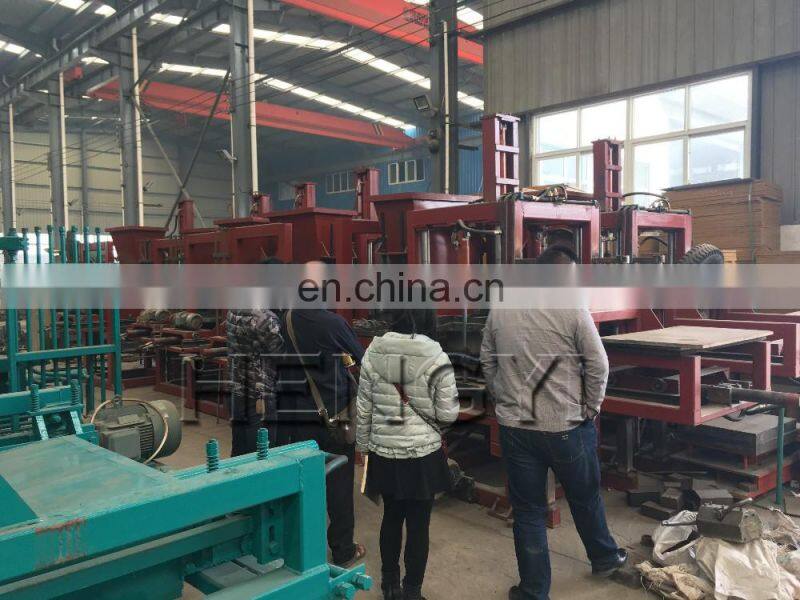

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging |
||
Size |
1300 (L) * 1500 (W) * 1800 (D) |
|
Weight |
1.2 T |
|

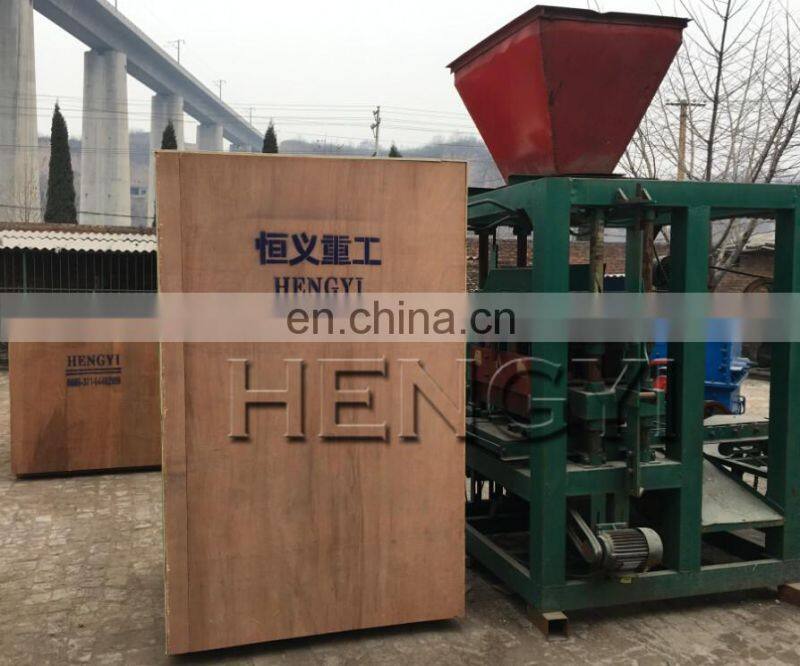

Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
About Hengyi:
We are one of the leading Manufacturers and Suppliers of QT4-35B concrete brick making machine .We manufacture concrete brick making machine using cutting-edge technology and high grade parts and components like electric gas,hydraulic valve,etc.,that are procured from famous brand manufactures.The concrete brick making machine can produce many kinds of solid and hollow blocks in different specifications.
