hydraulic concrete cinder interlocking paving blocks making machine/compressed earth brick making machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

HENGYI compressed earth brick making machine

Product Detailes

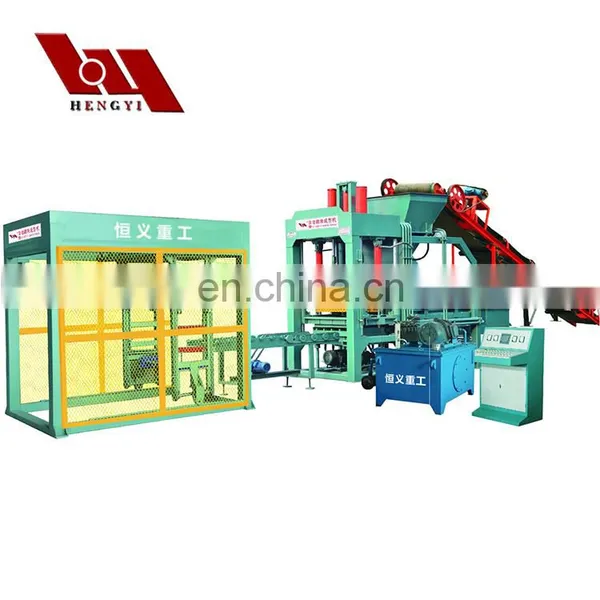

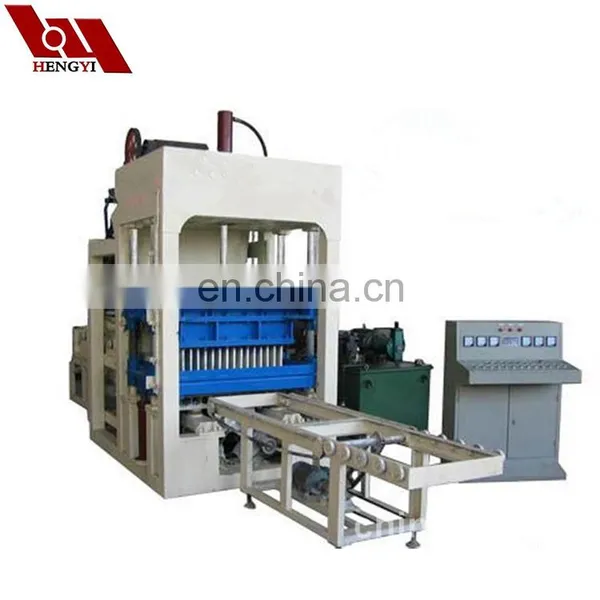

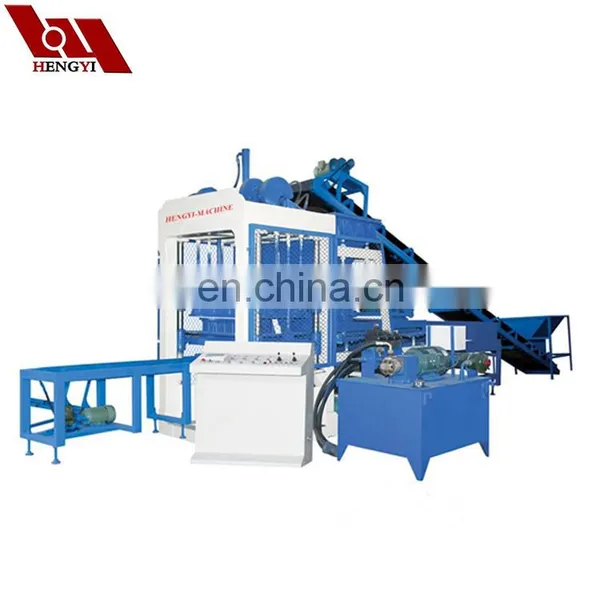

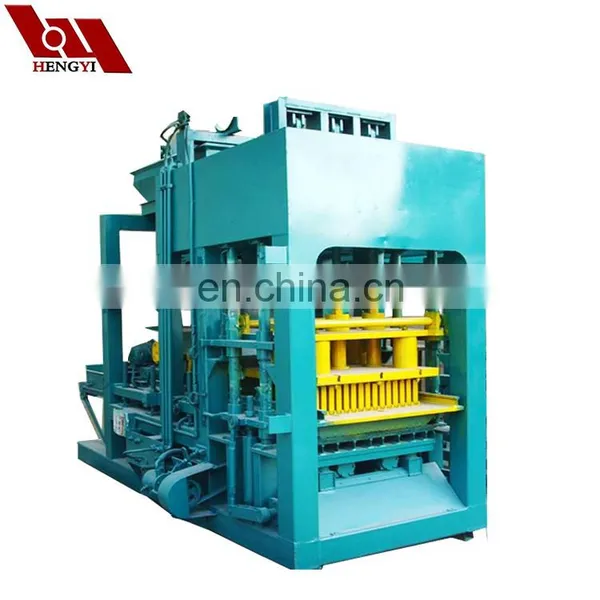

QT4-15 compressed earth brick making machine

Our compressed earth brick making machine are with simple and compact structure, convenient operation and easy maintenance. It demands litter manpower and investment, but makes high output and quick ROI (return on investment). Especially suitable to produce standard bricks, hollow bricks, pavers, etc. The strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, It is an ideal choice for enterprises with small investment.

QT4-15 compressed earth brick making machine

Model	QT4-15	QT4-22	QT4-26	QT4-35	QT4-40
Cycle Time(s)	15s	22s	26s	35s	40s
PCS/Mould (24011553mm)	26pcs	26pcs	26pcs	26pcs	26pcs
PCS/Shift (24011553mm)	45000pcs	34000pcs	28800pcs	21000pcs	18500pcs
Power(KW)	23KW	19.5KW	14.25KW	11KW	9.55KW
Dimension(mm)	300022002900	295021501600	206017302580	112014001700	140010502350
Pallet Dimension(mm)	94058030mm	85055030mm	88055030mm	88048030mm	85055030mm
Raw material Workshop(m2)	450m2	400m2	400m2	300m2	300m2
Working shed(m2)	300m2	200m2	200m2	150m2	150m2
Working site(m2)	3000m2	2500m2	2500m2	1500m2	1000m2
Power distribution(KW)	50KW	45KW	42KW	30KW	25KW
Water consumption	9t/day	6t/day	5t/day	4t/day	3t/day
Pallets needed (pcs)	1000pcs	500-800pcs	500-800pcs	500pcs	500pcs
Weight(ton)	4.3t	3.0t	2.4t	1.1t	1t
Staff needed	8~10	5~8	3~5	2~3	2~3
Warranty(months)	18 months	18 months	18 months	18 months	18 months

Main Parts&Technolog

1. PLC Control System

Haiwell/Siemens PLC, automatic fault diagnosis system, Cross manual handle, easy to operate, has the self protection function.

2. Hydraulic Valves

Adopt TAIWAN brand hydraulic valves, more stable, more accurate and low fault, has longer lifetime than normal brand.

3. Hydraulic Station

Adopt to hydraulic pressure system, making the production more steady and effeciency, and lower noise.

4. Mould

Use heat treatment, casting for solid mould, more strong and durable.

Line cutting , more accurate ,more professional, more smooth on the surface.

5.Scatter Mixer

Scatter material through revolving 360 degree,this process likes to mix the material again after the mixer,the technology makes the block evenly and high density

6. Rubber Cushion

Below the Vibration plate, there are six rubber cushions, that can reduce the vibration of the shaking table to protect the machine.

7. Sensor

There are the sensors on the material, adopt higher technology to make the production more accurate, long lifetime.

8. Cooling Fans

When the machine works for long time, the fans mainly to used for cool the temparature of the motors, to protect the motors

Detailed Specs of compressed earth brick making machine

Main Specs:
Environmental protection				Confirms to the international environmental protection standard
General power				23KW
Average power consumption				20KW/h
Average water consumption				9T/day
Land area				3000m2 totally
Technical Specifications:
Output capacity per mould	Standard brick		240x115x53mm			26pcs/mould
	Porous brick		240x115x90mm			9pcs/mould
	Hollow brick		390x190x190mm			4pcs/mold
Output capacity per hour	Standard brick		240x115x53mm			4300pcs/hour
	Porous brick		240x115x90mm			2000pcs/hour
	Hollow brick		390x190x190mm			600pcs/hour
Hollow brick		390x190x190mm			4800pcs
Cycle time	22s
Power	19.5kw
Weight	3T
Area	2500m2
Workers	5-8
Dimension	295021501600 mm
Pallet size	85055030mm
Suggested pallets numbers	500-800pcs
Equipment list:
Name of the item		Quantity			Remarks
decorative concrete manual block making machine in kenya for sale		1
Mixer		1			JW350
Belt conveyor		1			8m
Free mould		1
Pallets		1000pcs			Upon ur request
Block trolley		1

Production Flow

Full Automatic Production Flow chart:
