Product Description

Product Introduction

new design QT4-35A interlocking machine block machine
Our QT4-3A interlocking machine block machine are with simple and compact structure,convenient operation and easy maintenance.It demands litter manpower and investment,but makes high output and quick ROI(return on investment).Especially suitable to produce standard bricks,hollow bricks,pavers,etc.
SPECIFICATIONS FOR QT4-35A BLOCK MAKING MACHINE
1
Model
QT4-35A
2
Cycle Time
35s
3
Total Power
13.3KW
4
Voltage
220V/380V(Customized)
5
Dimensions(L*W*H)
1120*1400*1700mm
6
Vibration Force
35KN
7
Weight
1.1T
8
Pallet Dimensions
850*480*30mm
9
Pallet needed
500pcs
Block Sizes
Cycle Time
Pcs/Mould
Pcs/Shift
240*115*53mm
35s
26pcs
23000pcs
390*190*190mm
35s
4pcs
3800pcs
450*225*150mm
35s
3pcs
2000pcs
Detailed Images

Machine Parts

Name: Mould

Brand: Hengyi

Original: China

The mould is the key of quality of block, and also decide the working life of block machine.
Our mould adopts national certified steel, the thickness is 8-12mm.Besides, we also do some special treatment.

Main Features

Name: Motor


The motor is most parts of the machine.The voltage of the motor can be customized.The motor we use is great quality brand in China with copper wire.

Related Products
Model
Cycle Time(s)
Power(KW)
Pcs/mould
(240*115*53mm)
Capacity/8Hr
(240*115*53mm)
1-10 clay brick machine
10s
5.5KW
1pcs
2000~2400pcs
2-10 clay brick machine
10s
5.5KW
2pcs
4000~4800pcs
4-45 mobile block machine
40~45s
6.6KW
24pcs
15000pcs
4-22 block machine
20~22s
19.65KW
26pcs
36000pcs
4-25 hydraulic block machine
25s
11.55KW
26pcs
31500pcs
4-26 block machine
26s
14.25KW
26pcs
30000pcs
4-35 block machine
35s
4.8KW
26pcs
23000pcs
4-40 block machine
30s
9.55KW
26pcs
27000pcs
4-15 block machine
15s
26.5KW
26pcs
46000pcs
6-15 block machine
15s
36.4KW
30pcs
 57600pcs
8-15 block machine
15s
45.5KW
 42pcs
80640pcs
10-15 block machine
15s
50.88KW
 59pcs
140000pcs
Model
Video Links
1-10 clay brick machine
https://youtu.be/oYC8jdZBHIw
2-10 clay brick machine
https://youtu.be/dpTx672ffrA
4-45 mobile block machine
https://youtu.be/c_KefS6xrqc
4-22 block machine
https://youtu.be/7H5NPT1u2vw
4-25 hydraulic block machine
https://youtu.be/Q0n_iODl5Js
4-26 block machine
https://youtu.be/dIgdFXuYprc
4-35 block machine
https://youtu.be/C7y8dn3xUr8
4-40 block machine
https://youtu.be/Su27fMjHuvo
4-15 block machine
https://youtu.be/ivEqEyefJcw
6-15 block machine
https://youtu.be/RUMM7yoeF4w
8-15 block machine
https://youtu.be/0DGx4Ih4vgw
10-15 block machine
https://youtu.be/lYrcuoccjeQ
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

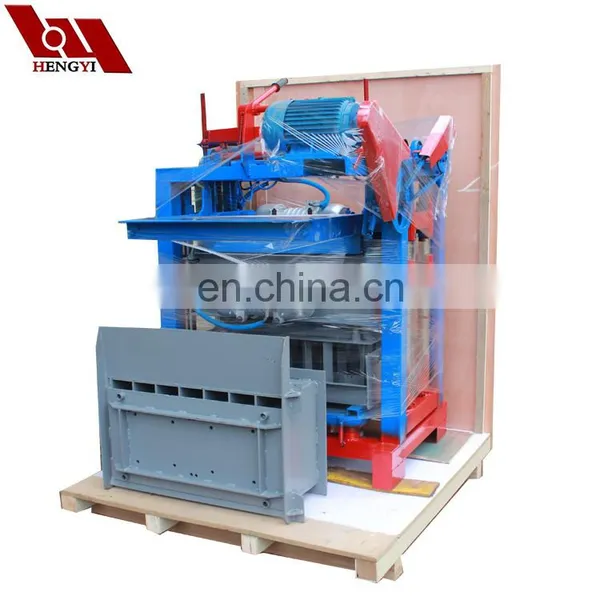

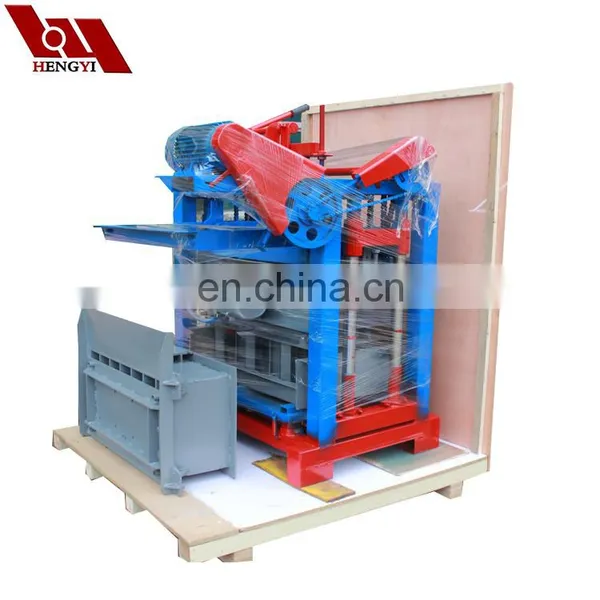

Packing & Delivery
Packaging
Size
1300 (L) * 1500 (W) * 1800 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

About Hengyi:

We are one of the leading Manufacturers and Suppliers of QT4-35A block machine.We manufacture block machine using cutting-edge technology and high grade parts and components like electric gas,hydraulic valve,etc.,that are procured from famous brand manufactures.The block machine can produce many kinds of solid and hollow blocks in different specifications.

Contact Information

Icey Qiao



              --------Sales Manager


Tel: 0086-371-55361586
Mob: 0086-15238334945(Whatsapp ID)(Wechat)
Skype: icey.qiao

If you want to know more,feel free to contact us at any time.
