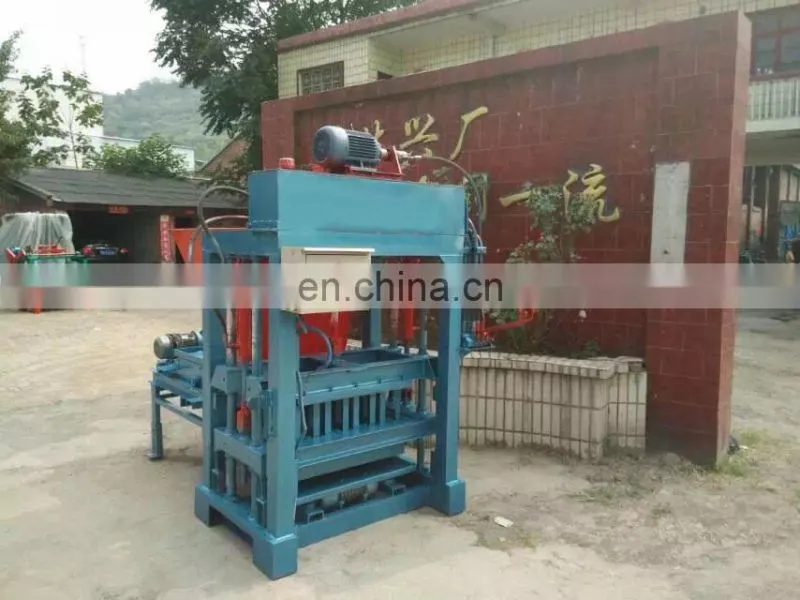

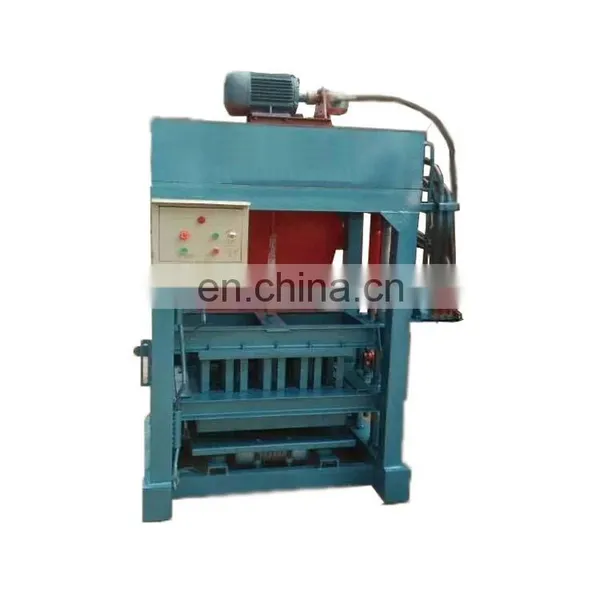

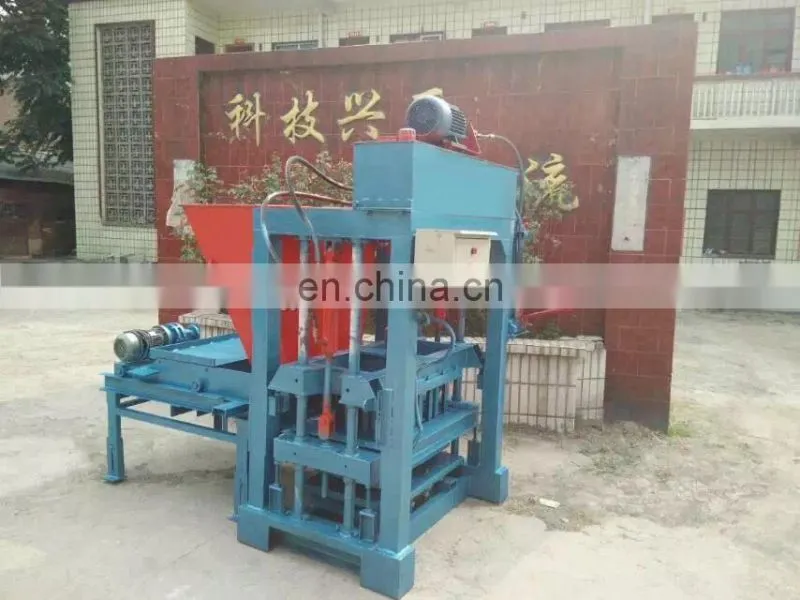

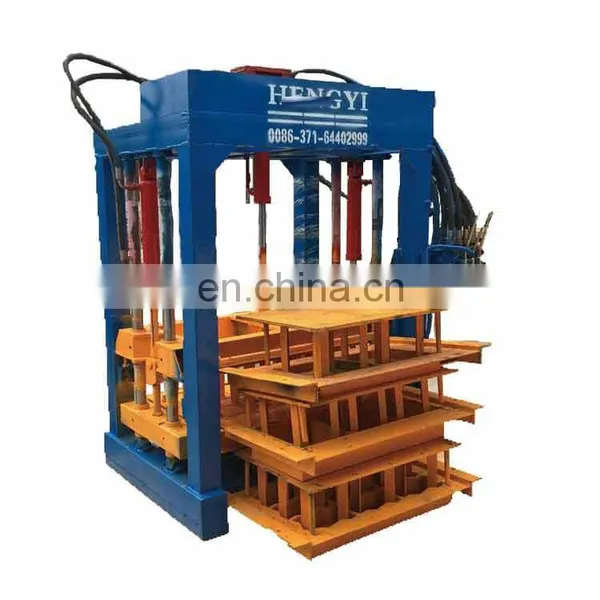

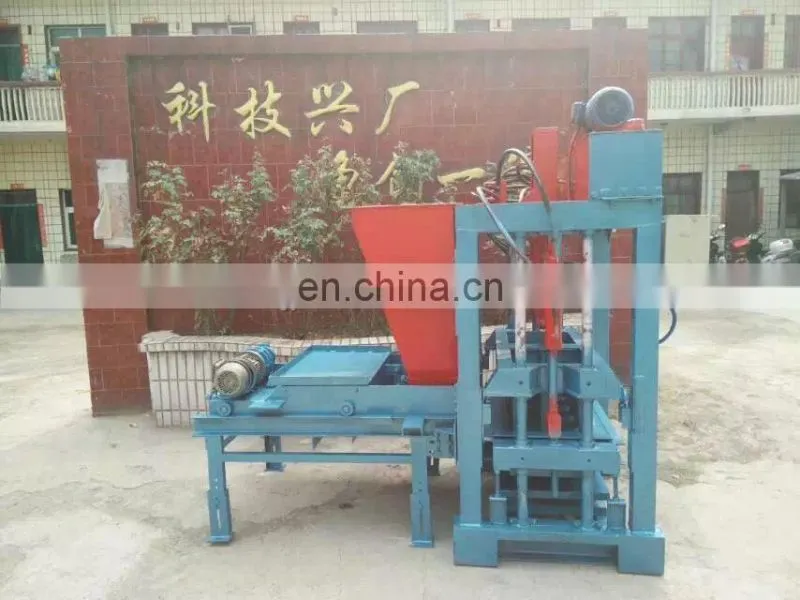

Help CenterQTJ4-25 Small Manual Hollow Block Machine Fly Ash Brick Making Equipment Machinery For Small Industries
Related Products
-
Low Cost QT4-22 Habiterra Interlocking Block Making MachineNegotiableMOQ: 1 -
QT4-22 Factory Direct Sell 18 Months Warranty Interlocking Bloc/price List of Concrete Block Making Machine/block Making MachineNegotiableMOQ: 1
-
Production of Autoclaved Aerated Concrete,automatic Aac Block Making Machine,sand Aac Block MachineNegotiableMOQ: 1
-
Pavement Bricks Making Machine, Fully Automatic Block Machine Price, Brick Laying Machine CostNegotiableMOQ: 1
-
Hot Selling QT4-45 Diesel Engine Egg Laying Concrete Block Making MachineNegotiableMOQ: 1
ABOUT HENGYI:
We are one of the leading Manufacturers and Suppliers of Hollow block machine using cutting-edge technology and high grade parts and components like electric gas, hydraulic valve, etc., that are procured from famous brand manufacturers. The Hollow block machine can produce many kinds of solid and hollow brick in different specifications. The electric cabinet housed in the Hollow block machine automatically controls the brick production.
QT4-25BH Manufacturers of new small hydraulic Hollow block machine /Hollow block machine
QT Concrete hydraulic concrete Hollow block machine
| odel |
QT4-15 Hollow block machine |
QT4-22 Hollow block machine |
QT4-26 Hollow block machine |
QT4-35 Hollow block machine |
QT4-25BH Hollow block machine |
| Cycle Time(s) | 15s | 22s | 26s | 35s | 30s |
| PCS/Mould (240*115*53mm) |
26pcs | 26pcs | 26pcs | 26pcs | 26pcs |
| PCS/Shift (240*115*53mm) |
45000pcs | 34000pcs | 28800pcs | 21000pcs | 24960pcs |
| Power(KW) | 23KW | 19.5KW | 14.25KW | 11KW | 7.5KW |
| Dimension(mm) | 3000*2200*2900 | 2950*2150*1600 | 2060*1730*2580 | 1120*1400*1700 | 1400*1050*2350 |
| Pallet Dimension(mm) | 940*580*30mm | 850*550*30mm | 880*550*30mm | 880*480*30mm | 850*550*30mm |
| Raw material Workshop(m2) |
450m2 | 400m2 | 400m2 | 300m2 | 300m2 |
| Working shed(m2) | 300m2 | 200m2 | 200m2 | 150m2 | 150m2 |
| Working site(m2) | 3000m2 | 2500m2 | 2500m2 | 1500m2 | 1000m2 |
| Power distribution(KW) | 50KW | 45KW | 42KW | 30KW | 20KW |
| Water consumption | 9t/day | 6t/day | 5t/day | 4t/day | 3t/day |
| Pallets needed (pcs) | 1000pcs | 500-800pcs | 500-800pcs | 500pcs | 500pcs |
| Weight(ton) | 4.3t | 3.0t | 2.4t | 1.1t | 1t |
| Staff needed | 8~10 | 5~8 | 3~5 | 2~3 | 2~3 |
| Warranty(months) | 18 months | 18 months | 18 months | 18 months | 18 months |
Detailed Specs of Hollow block machine :
Brief Introduction: | ||||||
Our Hollow block machine are with simple and compact structure, convenient operation and easy maintenance. It demands litter manpower and investment, but makes high output and quick ROI (return on investment). Especially suitable to produce standard bricks, hollow bricks, pavers, etc. The strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, It is an ideal choice for enterprises with small investment. | ||||||
Main Specs: | ||||||
Environmental protection |
Confirms to the international environmental protection standard |
|||||
General power |
15KW |
|||||
Average power consumption |
7.5KW/h |
|||||
Average water consumption |
4T/day |
|||||
Land area |
1000m2 totally |
|||||
Technical Specifications: | ||||||
Output capacity per mould |
Standard brick |
240x115x53mm |
26pcs/mould |
|||
Porous brick |
240x115x90mm |
9pcs/mould |
||||
Hollow brick |
390x190x190mm |
4pcs/mold |
||||
Output capacity per hour |
Standard brick |
240x115x53mm |
3120pcs/hour |
|||
Porous brick |
240x115x90mm |
2160pcs/hour |
||||
Hollow brick |
390x190x190mm |
480pcs/hour |
||||
Output per capacity per shift (8hours) |
Standard brick |
240x115x53mm |
24960pcs |
|||
Porous brick |
240X115X90mm |
17280pcs |
||||
Hollow brick |
390x190x190mm |
3840pcs |
||||
Cycle time |
20~30s |
|||||
Power |
15kw |
|||||
Weight |
1.1T |
|||||
Area |
1000m2 |
|||||
Workers |
2-3 |
|||||
Dimension |
1120*1400*1700mm |
|||||
Pallet size |
880*550*30mm |
|||||
Suggested pallets numbers |
500pcs |
|||||
Equipment list: | ||||||
Name of the item |
Quantity |
Remarks |
||||
Hollow block machine |
1 |
|
||||
Mixer |
1 |
JW350 |
||||
Belt conveyor |
1 |
6m |
||||
Free mould |
1 |
|
||||
Pallets |
500pcs |
Upon ur request |
||||
Block trolley |
1 |
|||||
Production Flow chart:
Associated equipments:
Brick samples & Moulds
Successful cases & Customer Visiting.
Packaging & Shipping:
WHY CHOOSE US !?
Besides our great quality and reasonable price by using national certifed steel and imported electrical and other keyparts.What differs us from other suppliers I think are inovation, profession and our ROI principle.
Thru inovation, we keep providing the new products and improving the old to help you better win the market.
Theu profession, we give you the best customised solution which is under your project situation.
Signing contract is just a start of our coperation, you will see our experienced engineer to instruct you on installation and commissioning, detailed spareparts & wearing part list and 7*24 fast reply to make sure your Hollow block machine goes well in any time
We can't be the one who offers lowest price but we can be the one who help you make most profits by our profession ! !
FAQ:
1.MOQ: 1 Set
2.Warranty: 18 months.
3.What's the lead time: 10 days
4.What is the package: Wood carton or as per your request
5.Can we change moulds? Yes
6.Certification: ISO CE
7.Area required: 500M2
8.How much manpower needed:2-3
9.Raw material: fly ash, coal residue, coal wastes, chemical residue, sand, stone, cement, construction wastes, etc.
