ABOUT HENGYI:

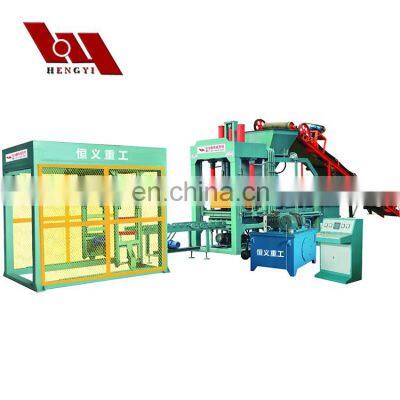

We are one of the leading Manufacturers and Suppliers of QT4-15 interlocking brick machine for sale . We manufacture interlocking brick machine for sale using cutting-edge technology and high grade parts and components like electric gas, hydraulic valve, etc., that are procured from famous brand manufacturers. The interlocking brick machine for sale can produce many kinds of solid and hollow brick in different specifications. The electric cabinet housed in the interlocking brick machine for sale automatically controls the brick production.
QT4-15 interlocking brick machine for sale .
QT interlocking brick machine for sale
| Model |
QT4-15 Block machine |
QT4-22 Block machine |
QT4-26 Block machine |
QT4-35 Block machine |
QT4-40 Block machine |
| Cycle Time(s) | 15s | 22s | 26s | 35s | 40s |
| PCS/Mould (240*115*53mm) |
26pcs | 26pcs | 26pcs | 26pcs | 26pcs |
| PCS/Shift (240*115*53mm) |
45000pcs | 34000pcs | 28800pcs | 21000pcs | 18500pcs |
| Power(KW) | 23KW | 19.5KW | 14.25KW | 11KW | 9.55KW |
| Dimension(mm) | 3000*2200*2900 | 2950*2150*1600 | 2060*1730*2580 | 1120*1400*1700 | 1400*1050*2350 |
| Pallet Dimension(mm) | 940*580*30mm | 850*550*30mm | 880*550*30mm | 880*480*30mm | 850*550*30mm |
| Raw material Workshop(m2) |
450m2 | 400m2 | 400m2 | 300m2 | 300m2 |
| Working shed(m2) | 300m2 | 200m2 | 200m2 | 150m2 | 150m2 |
| Working site(m2) | 3000m2 | 2500m2 | 2500m2 | 1500m2 | 1000m2 |
| Power distribution(KW) | 50KW | 45KW | 42KW | 30KW | 25KW |
| Water consumption | 9t/day | 6t/day | 5t/day | 4t/day | 3t/day |
| Pallets needed (pcs) | 1000pcs | 500-800pcs | 500-800pcs | 500pcs | 500pcs |
| Weight(ton) | 4.3t | 3.0t | 2.4t | 1.1t | 1t |
| Staff needed | 8~10 | 5~8 | 3~5 | 2~3 | 2~3 |
| Warranty(months) | 18 months | 18 months | 18 months | 18 months | 18 months |
Detailed Specs of QT4-15 interlocking brick machine for sale :
Brief Introduction: | ||||||
Our QT4-15 interlocking brick machine for sale are with simple and compact structure, convenient operation and easy maintenance. It demands litter manpower and investment, but makes high output and quick ROI (return on investment). Especially suitable to produce standard bricks, hollow bricks, pavers, etc. The strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, It is an ideal choice for enterprises with small investment. | ||||||
Main Specs: | ||||||
Environmental protection |
Confirms to the international environmental protection standard |
|||||
General power |
23KW |
|||||
Average power consumption |
20KW/h |
|||||
Average water consumption |
9T/day |
|||||
Land area |
3000m2 totally |
|||||
Technical Specifications: | ||||||
Output capacity per mould |
Standard brick |
240x115x53mm |
26pcs/mould |
|||
Porous brick |
240x115x90mm |
9pcs/mould |
||||
Hollow brick |
390x190x190mm |
4pcs/mold |
||||
Output capacity per hour |
Standard brick |
240x115x53mm |
5600pcs/hour |
|||
Porous brick |
240x115x90mm |
2500pcs/hour |
||||
Hollow brick |
390x190x190mm |
700pcs/hour |
||||
Output per capacity per shift (8hours) |
Standard brick |
240x115x53mm |
45000pcs |
|||
Porous brick |
240X115X90mm |
20000pcs |
||||
Hollow brick |
390x190x190mm |
5600pcs |
||||
Cycle time |
15s |
|||||
Power |
23kw |
|||||
Weight |
4.3T |
|||||
Area |
3000m2 |
|||||
Workers |
8-10 |
|||||
Dimension |
3000*2200*2900 mm |
|||||
Pallet size |
940*580*30mm |
|||||
Suggested pallets numbers |
1000pcs |
|||||
Equipment list: | ||||||
Name of the item |
Quantity |
Remarks |
||||
QT4-15 interlocking brick machine for sale |
1 |
|
||||
Mixer |
1 |
JW500 |
||||
Belt conveyor |
1 |
8m |
||||
Free mould |
1 |
|
||||
Pallets |
1000pcs |
Upon ur request |
||||
Block trolley |
1 |
|||||
Production Flow chart:
Associated equipments:
Spare parts:
Brick samples & Moulds
Successful cases & Customer Visiting.
Packaging & Shipping of interlocking brick machine for sale :
WHY CHOOSE US !?
Besides our great quality and reasonable price by using national certifed steel and imported electrical and other keyparts.What differs us from other suppliers I think are inovation, profession and our ROI principle.
Thru inovation, we keep providing the new products and improving the old to help you better win the market.
Theu profession, we give you the best customised solution which is under your project situation.
Signing contract is just a start of our coperation, you will see our experienced engineer to instruct you on installation and commissioning, detailed spareparts & wearing part list and 7*24 fast reply to make sure your concrete interlocking brick machine for sale goes well in any time
We can't be the one who offers lowest price but we can be the one who help you make most profits by our profession ! !
FAQ:
1.MOQ: 1 Set
2.Warranty: 18 months.
3.What's the lead time: 10 days
4.What is the package: Wood carton or as per your request
5.Can we change moulds? Yes
6.Certification: ISO CE
7.Area required: 1000M2
8.How much manpower needed:2-3
9.Raw material: fly ash, coal residue, coal wastes, chemical residue, sand, stone, cement, construction wastes, etc.
