Industrial areca-nut dryer machine / Walnut drying machine / Nut drying machine
Brief introduction of nut drying machine
This drying machine can be used in many fields, such as food processing industry, fruit and vegetable processing industry, agricultural and sideline industry, seafood processing industry, medicinal industry,chemical industry, etc.
It adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the tray dryer increases from 3~7% of the traditional tray dryer to 35~45% of the present one. The highest heat efficiency can be up to 50%.
Application of nut drying machine
It is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc .
•Dried fruits: apple,lemon, berry, banana, kiwi, figs, pear, peach, pineapple, mango, jujube, plums, etc.
•Dried vegetables: mushroom, pepper, carrot, cabbage, red chili, onion, tomato, potato, sweet potato, garlic, ginger, etc.
•Dried nuts: cashew nuts, walnuts, peanuts, etc.
•Dried seafood: sea cucumber, fish, sardines, shrimp, etc.
•Dried beans: Cocoa beans, peas, etc.
Specification of nut drying machine
| Model | WSHG-1 | WSHG-2 | WSHG-4 | WSHG-6 | WSHG-8 |
| Capacity(kg/batch) | 50 | 100 | 200 | 300 | 400 |
| Power(kw) | 9 | 12 | 18 | 22 | 30 |
| Number of trolley(unit) | 1 | 2 | 4 | 6 | 8 |
| Quantity of plate(pcs) | 24 | 48 | 96 | 144 | 192 |
| Size(mm) | 1550*800*2200 | 2100*1100*2300 | 2100*2000*2300 | 2600*2100*2300 | 4200*2300*2620 |

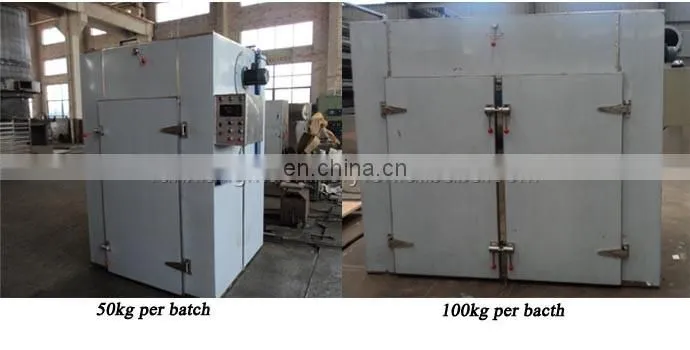

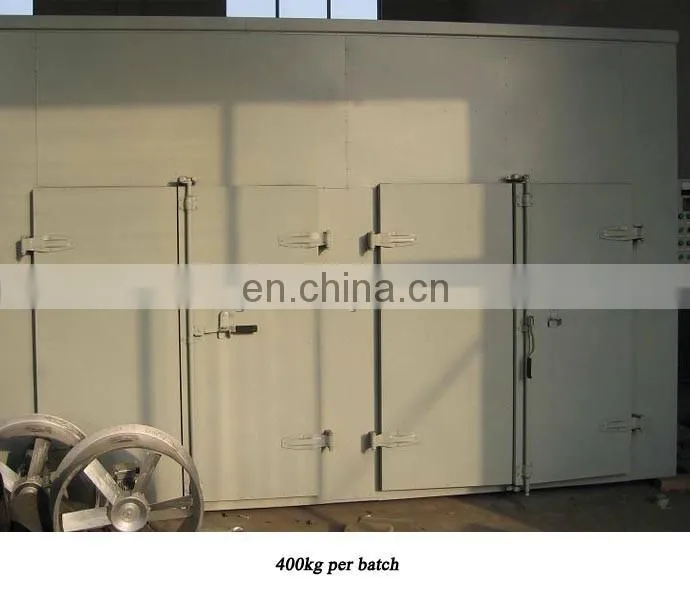

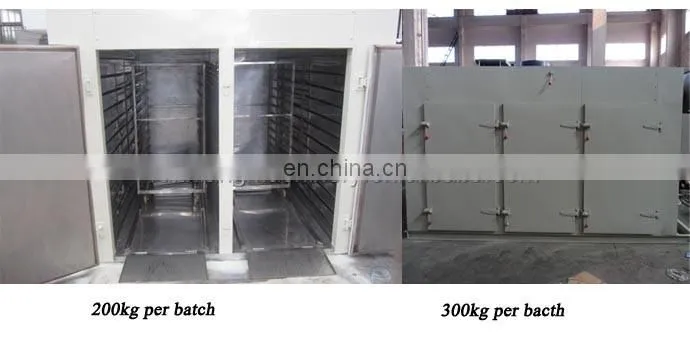

Images of different models of nut drying machine
There are two type of this industrial hot air drying machine
- One is made of 304 stainless steel inside, carbon steel outside
- One is fully stainless steel both outside and inside
The following is made of carbon steel outside

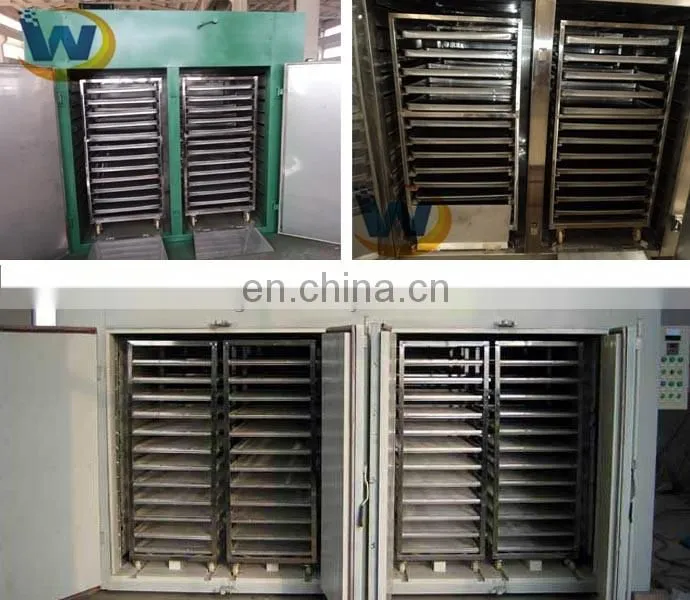

Inside look of this nut drying machine
Automatic temperature controller & Axial flow fan

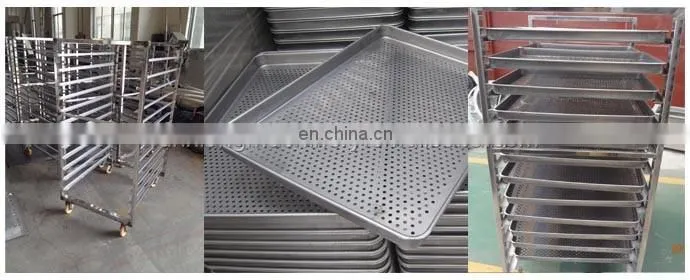

304 Stainless steel mobile trolleys & trays
- There are wheels on the bottom of the mobile carts, so customers can move them in and out of the drying oven easily.
- Trays can be customized for dehydrating different raw materials.

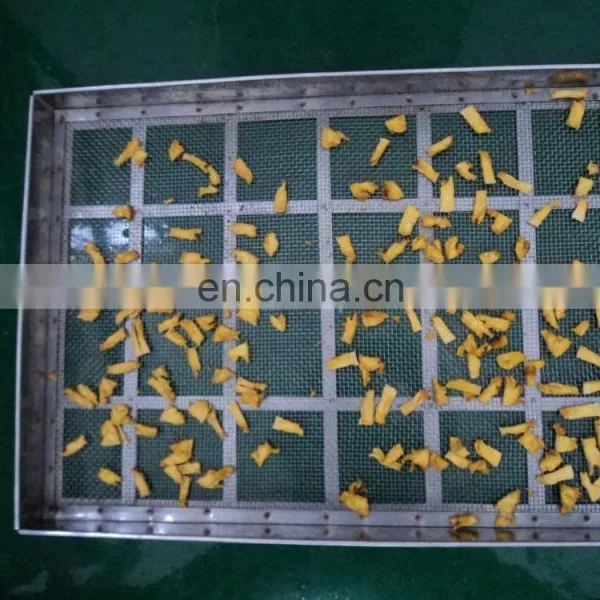

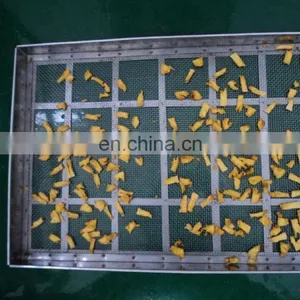

Dehydrated samples of nut drying machine
The drying time of this drying machine will vary by different materials, moisture content, sugar content, local climate, etc.
1.Fruits can be dried whole, or as slices, such as mango, papaya, and kiwi, etc. Alternatively they can chopped after drying, made into pastes, or concentrated juices.
2. Dried fruit is widely used by the confectionery, baking and sweets industries.
3. Food manufacturing plants use dried fruit in various sauces, soups, marinades, garnishes, puddings, etc.
1. This nut drying machine will be packaged by standard wooden case.
2. It will be delivered with 15 days after receiving the prepayment.
Our machines have been exported to many places around the world, with good feedback and building long-term cooperation relationship with customers.
The feature products:coal or charcoal briquette machine,carbonization machine,straw briquette machine,drying machine ,cleaning equipment,food machine , hammer mills,grain hammer mill,corn/maize flour mill,farm machinery,feed processing machinery,feed pellet mill machine,peanut processing machine,corn sheller and thresher,wood processing machine,etc.
1. What is the heat source available?
- Heat source : electricity, steam, gas, steam+ electricity.
2. The temperature range can be set?
- Operation temperature: The steam heating temperature is from 50℃-150℃; Electricity heating temperature is from 50℃-350℃. Customer should have steam boiler if choose steam heating.
3. Can the voltage be customized based on clients' need?
- Voltage can be customized. So please kindly tell us _phase, _V, _Hz when send inquiry.
