Specifications
1-University based technology and more stable;2-biomass gasifier power plant for power generation, such as rice husk, etc.
Available biomass:
Agriculture and forest residues, such as rice husk, crop stalk, coconut fiber dust, palm shell, pruned fruit tree branch, wood chips twig timber, chips from timber processing factory, and so on.

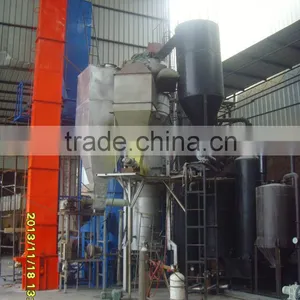

Biomass syngas from CTBU's fluidized bed biomass gasifier not only can be send to internal combustion engine for electric power generation, but also can be used for household fuel to cooking or heating . It also can be send to boiler or hot-blast furnace to produce steam or hot air for drying, or for turbine to generate power.
INDEX:
MODEL: ZBG-1000
biomass power plant output power : 1000kw
production volume of biomass gas: 3650Nm3/hr
gas temperature of the outlet after cleaning and cooling: under 45 degree celsius
consumption of biomass fuel: 1.5-1.8 ton/hr(for rice husk)
gross weight of gasifier: 38.7 ton
Main component and caloricity of biomass gas are different for difference of characteristic of biomass fuel and gasification method. The caloricity of biomass gasification gas is normally 1100-1500kcal/Nm3. (4.6-6.3MJ/Nm3).
Biomass gas component:
CO 17.2%
H2 4.05%
CH4 6.82%
CmHn 1.24%
H2S --------
CO2 15.1%
O2 0.8%
N2 54.7%
