Continuous carbonization furnace is the newest high production equipment in my company, at present,thecarbonization equipment on the market has small production,but the area is larger, therefore, after several experts of research and development,my company has designed horizontal high-throughput coking equipment,the production is high, high utilization rate of thermal efficiency,energy saving,environmental protection, smokeless, real implementation of smoke-free type production.

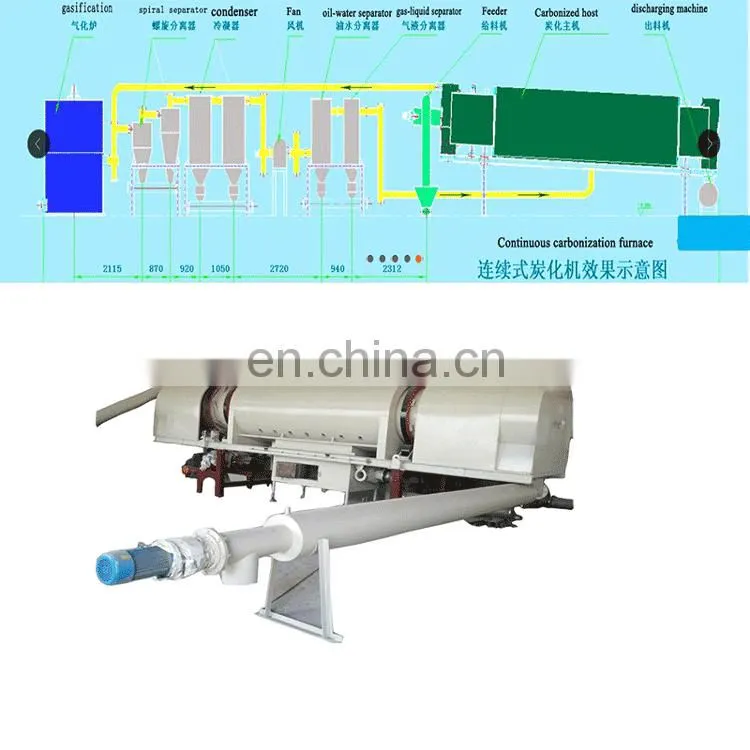

This carbonization furnace is fueled by the syngas(carbon monoxide, methane, ethane etc.) from the furnace itself.The biomass raw material will produce plenty of combustible gas during the pyrolysis of the carbonzation process,the syngas will became pure combustible gas after wood tar, wood vinegar other impurities was isolated by the filter and purification system (gas cleaner / dust-removal / purify tank / scrubber) The gasifier is used to preheating the carbonizer,when the temperature reach to 300℃,the feeding screw conveyor start to feeding raw material into the carbonizer.the material will produce fuel gas,which will be collected and used to heating the carbonizer after cleaning by the filter and purification system. The temperature of carbonizer will control at 600 degrees Celsius.When the carbonizer can produce enough flue gas and reach to self sufficient combustion, close the gasifier and open all the flue gas valve of the carbonizer gradually, finally achieve flammable gas self-sufficiency carbonization.
Model |
SJM-05 |
SJM-10 |
SJM-20 |
SJM-30 |
Hourly Feeding Capacity |
500kg |
0.8-1 Tons |
1.5-2Tons |
2.5-3Tons |
Working Method |
Continuous |
|||
Raw Materials |
1. All kinds of biomass waste, such as sawdust, Coconut shells, olive shells, palm shells, bamboo,etc. |
|||
|
2. Civil sludge, municipal sludge, industrial sludge,etc |
|||
|
3. MSW |
|||
Reactor Size |
Φ800 |
Φ1000 |
Φ1300 |
Φ1700 |
Pattern |
Horizontal & Rotary |
|||
Heating Materials |
Charcoal, Wood, diesel, Natural Gas, LPG, Biomass, etc. |
|||
Total Power |
40 kw/h |
55kw/h |
60kw/h |
72kw/h |
Floor Area (L*W*H) |
30m*15m*7m |
35*15*7m |
45*15*10m |
50*15*10m |
Operating Pressure |
Constant Pressure |
|||
Cooling Method |
Recycling Water Cooling |
|||
Life span |
5-8 Years |
|||
1.Export wooden cases generally.
2.We can make special packing as customer requirement.
3.20 ft or 40 ft for large quantity of machines.
Pre-sale service
1, 24 hours online .Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager ) ;
2,Professionally and patiently introduction,details pictures and working video to show machine.
On-sale service
1,Test every machine and inspect the machine seriously;
2,Send the machine picture which you order , then pack it with standard export wooden case after you confirm the machine is ok;
3,Delivery:If ship by sea .after delivery to sea port . We wil inform you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will inform you the tracking number after delivery.
After-sale service
1, Free insurance for goods;
2, 24 hours online to solve any problem . Supply you English manual book and technical support ,
maintain and install video to help you solve the problem, or dispatch worker to your factory.
Established in 2006, Zhengzhou Runxiang Machinery Equipment Co., Ltd ( Golden Machinery Equipment Co., Ltd), a professional manufacturer integrating R&D, manufacturing and trading, was established in 2006 and locates in Zhengzhou, which is the business center in Henan province with Xinzheng airport.
We are committed to feed machine, pellet machine, hammer mill, grinder mill ,briquette machine, snake food extruder machine, coal process machine line, straw briquette machine line, food machine line, farming, agriculture equipments for years. Besides, machines can also be designed according to your specific requirement. Moreover, our products have attained ISO9000 Certificate. What’s more, here are more than 80 talents and a research team with 16 technicians in our company. Therefore, we are more competitive in this field..
Two promises:
1. machines with the best quality and proper price and with high efficiency and low power consumption;
2. warm and elaborate service(before and after sale). We insist that quality is always in the first priority and customer’s satisfaction is our final intention. Therefore, our products have been exported to almost the whole world and enjoyed a good reputation for years.
We welcome new and old customers all around the world to contact us for future business relationships and achieving mutual success.
Q1: What is the warranty for this machine?
A1: 1 year for free.
Q2: What kind of material is this machine made of ?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours. If urgent, please directly call us.
Q4: Can the price be much lower?
A4: Our MOQ is the very reasonable price for 1 set, but with big order, we can apply to our Manager to provide a proper discount.
Q5: How to ask quotation?
A5: Please note us what type of raw seeds , and how many tons of raw seeds you want to process per day, then we will send you quotation as soon as possible.
Q6: Do you offer oversea installation?
A6: We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.
