Help CenterAcrylonitrile-Butadiene-Styrene
Related Products
Acrylonitrile - butadiene - styrene copolymer (ABS) is a thermoplastic polymer material with high strength, good toughness and easy processing. ABS is a terpolymer of acrylonitrile, 1,3- butadiene and styrene. It can perform normally in the environment of -25ºC~60ºC, and has good formability. The processed product surface is smooth and easy to dye and electroplate. And can be mixed with a variety of resins blend. Now it's mainly used in alloys, plastics.
ABS resin is a yellowish solid with a certain toughness and a density of about 1.04~1.06 g/cm3. It is resistant to acid, alkali, salt corrosion ability is relatively strong, but also to a certain extent to tolerate organic solvent dissolution.
ABS resin electroplating can perform normally in the -25ºC~60ºC environment, and has good molding, the processed product surface is smooth, easy to dye and electroplating. Therefore, it can be used in household appliances, toys and other everyday products.

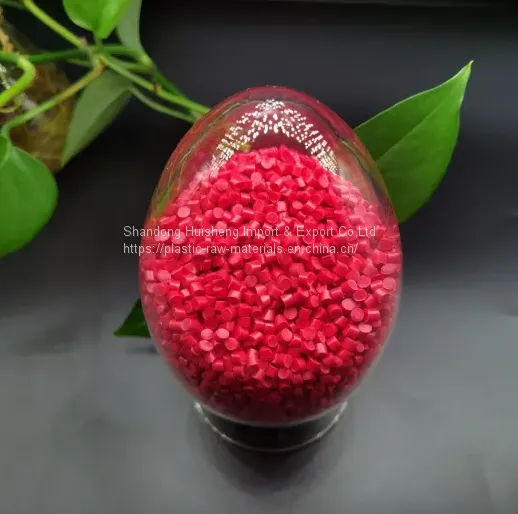

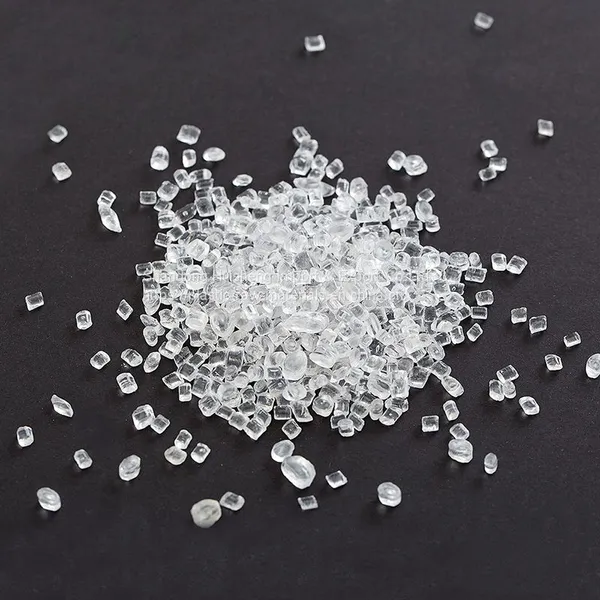

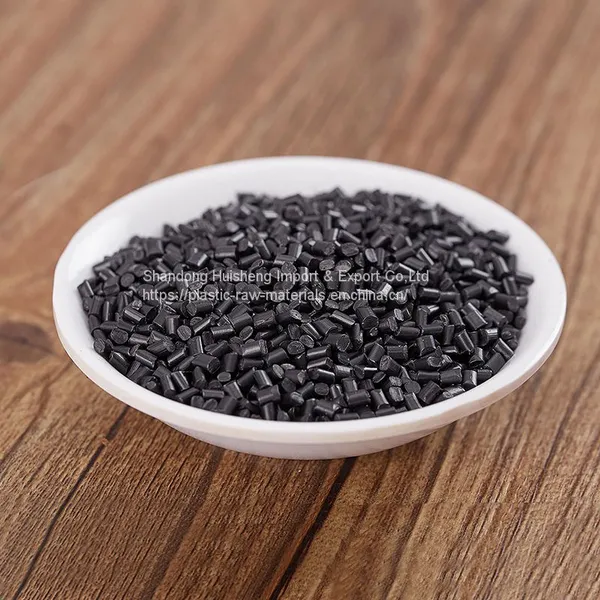

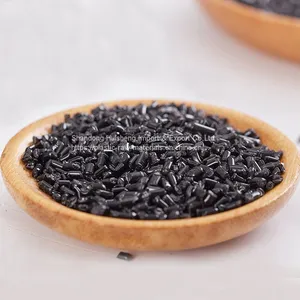

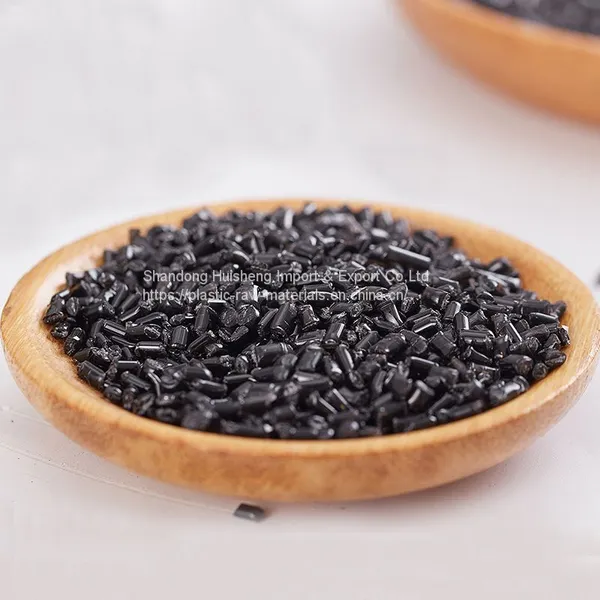

Detailed Photos
Application ABS engineering plastics have excellent comprehensive properties, excellent impact strength, good dimensional stability, electrical properties, wear resistance, chemical resistance, dyeing, molding and mechanical processing is better. ABS resin is resistant to water, inorganic salts, alkali and acid, insoluble in most alcohols and hydrocarbon solvents, and easily soluble in aldehydes, ketones, esters and some chlorinated hydrocarbons.
ABS resin to maintain the good performance and easy processing formability of styrene, and increase the elasticity, strength of butadiene (features), heat resistance and corrosion resistance, excellent properties (acrylonitrile), and high surface hardness, good chemical resistance, by changing the proportion of these three components at the same time, can change the properties of the ABS, ABS engineering plastics have wide applications, Mainly used in machinery, electrical, textile, automobile and shipbuilding industries.
Good comprehensive performance, high impact strength, chemical stability, good electrical performance.
Good fusion with 372 plexiglass, made of two-color plastic parts, and can be surface chrome plating, paint processing.
High impact resistance, high heat resistance, flame retardant, reinforcement, transparency and other levels.
Fluidity is less than HIPS, better than PMMA, PC, good flexibility.
Product Parameters| Properties |
Method | Unit | HI121H |
| Physical | |||
| Specific Gravity,23℃ | ASTM D792 | 1.05 | |
| Mold Shrinkage,23℃,3.2mm,23℃ | ASTM D 955 | % | 0.4~0.7 |
| Melt Flow Rate,220℃,10kg | ASTM D1238 | g/10min | 22 |
| Mechanical |
|||
| Tensile Strength at Yield,23℃,50mm/min,3.2mm | ASTM D638 | Mpa | 49 |
| Tensile Elongation at Yield,23℃,50mm/min,3.2mm | ASTM D638 | %(Min) | 5 |
| Tensile Elongation at Break,23℃,50mm/min,3.2mm | ASTM D638 | %(Min) | 10 |
| Tensile Modulus,23℃,50mm/min,3.2mm | ASTM D638 | MPa | 2350 |
| Flexural Strength,23℃,15mm/min,3.2mm | ASTM D790 | MPa | 78 |
| Flexural Modulus,23℃,15mm/min,3.2mm | ASTM D790 | MPa | 2550 |
| Izod Impact Strength,Notched,3.2mm,23℃ | ASTM D256 | J/m | 220 |
| Izod Impact Strength,Notched,3.2mm,-30℃ | ASTM D256 | J/m | 90 |
| Izod Impact Strength,Notched,6.4mm,23℃ | ASTM D256 | J/m | 220 |
| Izod Impact Strength,Notched,6.4mm,-30℃ | ASTM D256 | J/m | 90 |
| Rockwell Hardness,R-Scale | ASTM D785 | 110 |
1. Are youtrading company or Manufacturer ?
We are factory.
2.About Sample
We provide samples, but you need to pay the sample fee and freight.
3. About Material
We can customize the material according to customers' requirement.
4. About Quality
All the products must be tested strictly according to the testing procedure before shipment.
5. About Delivery Period
Normally delivered in 21 working days after the confirmation of order& payment. And it varies according to the material and
quantity.
6. About Payment term
It's flexible, T/T, L/C at sight,100% in advance,30% in advance, the balance by copy B/L.
