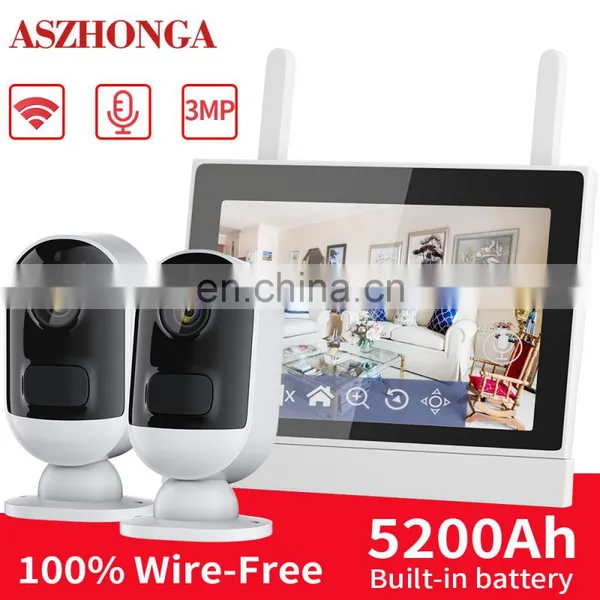

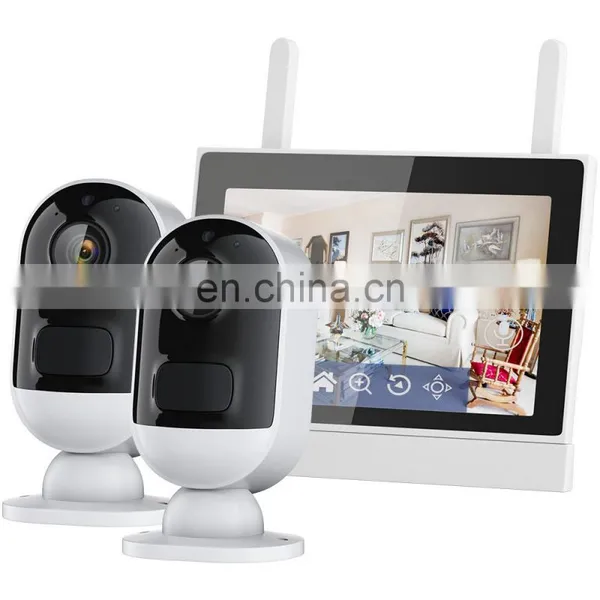

2/4CH Mini Smart Wireless Ip Network Security Home Surveillance CCTV Battery Camera System 3MP WiFi 7 Inch LCD Monitor Nvr Kit
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2013
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4CH Mini Smart Wireless Ip Network Security Home Surveillance CCTV Battery Camera System 3MP WiFi 7 Inch LCD Monitor Nvr KitNegotiableMOQ: 1 -
5MP 4CH POE NVR Kit IP Camera With Micro Alarm Motion Detection P2P Camera System Full Color Night Vision Smart Face SearchNegotiableMOQ: 1
-
5MP 8CH POE NVR Kit IP Camera With Micro Alarm Motion Detection P2P Camera System Full Color Night Vision Smart Face SearchNegotiableMOQ: 1
-
5MP 16/32CH POE NVR Kit IP Camera With Micro Alarm Motion Detection P2P Camera System Full Color Night Vision Smart Face SearchNegotiableMOQ: 1
-
Human Body Detection 8CH 5MP Nvr Poe With 1 SATA HDD Slot Support Synchronous Playback for Cctv Camera Factory Stock WholesaleNegotiableMOQ: 1
Product Description
2/4CH Mini Smart Wireless Ip Network Security Home Surveillance CCTV Battery Camera System 3MP WiFi 7 Inch LCD Monitor Nvr Kit
Features :
1: Camera 3MP resolution, 2304*1296P HD image, support H.265 video format.
2: 120 degree 3.4mm wide angle lens, giving you a wider field of view.
3: Camera built-in battery power, Wifi connection, 100% completely wireless.
4: Camera built-in two 18650 lithium batteries, the default 5200mA, rechargeable design, standby up to 180 days (actual use time please subject to actual)
5: PIR best sensing distance of about 7-8M, sensing angle of about 120 degrees.
6: 9 infrared lights, night vision is also clear.
7: Built-in MIC and speaker, two-way audio.
8: IP66 waterproof rating, suitable for indoor and outdoor.
9: With magnetic bracket, the camera can be mounted anywhere.
10: Support up to 128GB of TF card storage.
11: 7 inch HD touch screen NVR with wireless connection, can support up to 4 way camera
12: Built-in 20 kinds of language interface
13: NVR supports up to 128G TF Card
14: Multi-purpose NVR base bracket, can be wall-mounted, can also be placed, simple switching
15: Camera sweep connection, no complicated settings
16: Multi-client support, support cell phone APP access
7-inch HD touch screen

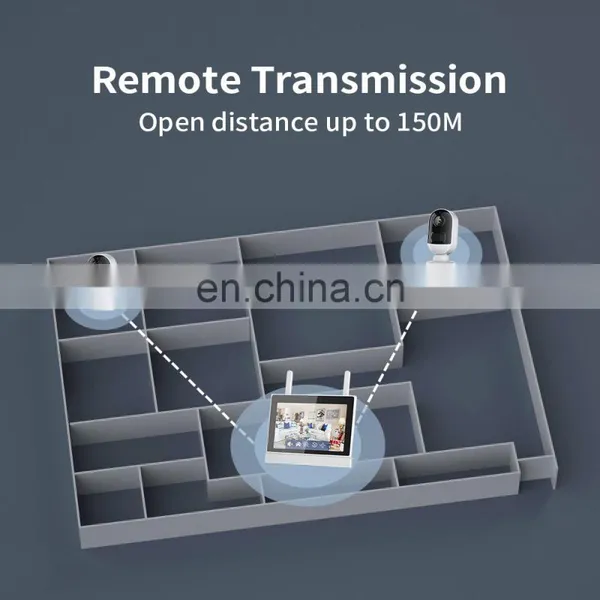

7-inch HD touch display all-in-one NVR, support long-distance wireless connection (open distance up to 150 meters, please refer to the actual situation for specific use). Support H.265 video format. Just power connected to the power, camera to code added, easy to use. Use 5V / 3A power supply. Support up to 128G TF card storage (optional).
Built-in 20 languages, can be switched according to the actual. Support video playback and electronic zoom function, see more details. Support automatic rest screen when the camera is not working (time can be custom set).NVR built-in HD microphone and speaker, can realize two-way voice intercom with the camera. System software can be upgraded online.
2 Types of Installation
Multi-purpose NVR base bracket, can be wall-mounted or placed, simple switching
No wiring Required Super Convenient
You can deploy the camera and NVR anywhere in your home WIFI coverage area.Installation is more flexible and convenient.
PIR detection and real-time alarm
PIR detection and human shape recognition technology can minimize false alarms and can effectively extend the standby time of the camera.
Large capacity battery
The camera has a built-in lithium battery of 5200mAH. It can work for a long time and bring long-lasting life. The longest standby work up to 180 days. (Different environments, can work for different times, please subject to actual use)
15M IR Night vision supported
Build in 9pcs infrared LEDs, support 15 meters HD IR Night Vision. Day/Night auto switch with IR-Cur filters.
Magnetic suction
The camera has a built-in strong magnetic suction and a strong adhesive on the back of the base, allowing for hole-free installation.
Support two-way audio
Both the NVR and the camera have built-in HD microphones and speakers for mutual voice intercom.
Support TF Card Storage
Supports up to 128GB TF card storage. (The above storage time is for reference only, access to the camera about more, the same capacity TF card storage time is shorter)
NOTE:
The NVR can only play back the camera video stored in itself, not the video stored in the camera. It is recommended that the TF card be installed in the NVR only.
Camera light description
Blue light + red light keep on: the camera is being previewed remotely (privacy light);
Blue light keep on: the device is connected to the Internet or the device triggers wake-up;
Blue light flashes continuously and slowly: the device is charging;
Red light flashes 3 times quickly: shutdown;
Red light flashes continuously: in code matching;
Red light flashes continuously and slowly: network connection;
Constant red light: low battery.
Blue light keep on: the device is connected to the Internet or the device triggers wake-up;
Blue light flashes continuously and slowly: the device is charging;
Red light flashes 3 times quickly: shutdown;
Red light flashes continuously: in code matching;
Red light flashes continuously and slowly: network connection;
Constant red light: low battery.
SIZE:
Packing List:
2pcs 5200mAh battery cameras ;
1pcs 7-Inch NVR monitor ;
1pcs monitor holder ;
1pcs monitor power supply ;
2pcs camera magnetic sticker bracket ;
1pcs screws bag ;
1pcs camera charger ;
2pcs Type-c camera charger cable;
1pcs English paper user manual .
1pcs 7-Inch NVR monitor ;
1pcs monitor holder ;
1pcs monitor power supply ;
2pcs camera magnetic sticker bracket ;
1pcs screws bag ;
1pcs camera charger ;
2pcs Type-c camera charger cable;
1pcs English paper user manual .
Specification
Model |
K3814N-W-K-2 |
||
Camera Effective pixels |
3MP (2304*1296) |
||
CMOS Sensor |
1/3.2" |
||
Lens |
3.4mm/F2.6 |
||
View angle |
100° |
||
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
||
Day&Night mode |
Auto IR-CUT |
||
Night vision distance |
9pcs Array Infrared LEDs. |
||
Video compression Standard |
H.264/H.265 |
||
PIR Range |
7 meters distance, 120 degrees |
||
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
||
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
||
Audio function |
Built in Audio Microphone, Support Two Way Audio Talk Back |
||
Video resolution |
Code Stream |
HD and SD two streaming |
|
Frame Rate |
15 frames per second |
||
Audio coding format |
AAC/G711A |
||
Alarm function |
Smart Alarm |
PIR + humanoid, motion detection alarm |
|
Alarm Push |
APP Alarm information push |
||
Battery |
Type |
Built-in 2PCS 18650 battery |
|
Capacity |
5200mAH |
||
Power supply |
Type-c 5V/2A |
||
Storage |
Micro SD card (supports up to 128G) |
||
Network Support |
2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft |
||
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Waterproof Level |
Indoor Outdoor Use,Waterproof IP66 |
||
Reset |
Support |
||
Size(W×D×H)(mm) |
102*60*54 |
||
Weight(kg) |
0.6 |
||
NVR Screen Type |
7-inch HD touch LCD |
||
System Type |
Embedded LINUX operating system |
||
Language Support |
Built-in 20 switchable languages |
||
Support Camera channel |
Maximum 4-channel camera support |
||
Screen Display |
4-channel camera live display |
||
Video compression Standard |
H.265 |
||
Audio function |
Built in Audio Microphone, Support Two Way Audio Talk Back |
||
Video Playback |
Only support 1 way video playback, can switch playback camera |
||
Screen Hibernation |
Support screen auto-off function, can set the delay time |
||
Network Support |
2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft |
||
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Media |
CMS, Android, IOS |
||
Storage |
Micro SD card (supports up to 128G) |
||
Camera connection |
Sweep the code to connect(The camera can be used alone without an NVR) |
||
Size(W×D×H)(mm) |
183*19*114 |
||
Weight(kg) |
0.5 |
||
Package Summary |
2PCS Camera,1PCS NVR |
||
Packag Size(W×D×H)(mm) |
280*220*90 |
||
Weight(kg) |
1.9 |
||
