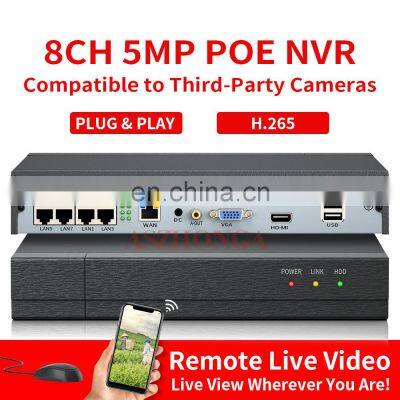

Human Body Detection 8CH 5MP Nvr Poe With 1 SATA HDD Slot Support Synchronous Playback for Cctv Camera Factory Stock Wholesale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2013
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tuya Smart Home 2CH 4CH Wireless 1080P 3MP 5MP NVR Kit Security CCTV WIFI Camera System Outdoor Waterproof Security SystemNegotiableMOQ: 1 -
Tuya Smart Home 8CH Wireless 1080P 3MP 5MP NVR Kit Security CCTV WIFI Camera System Outdoor Waterproof Security SystemNegotiableMOQ: 1
-
Tuya Smart Home 4CH Wireless 3MP NVR Kit Security CCTV WIFI Camera System Outdoor Waterproof Security SystemNegotiableMOQ: 1
-
Tuya Smart Home 2CH / 4CH Wireless 2MP NVR Kit Security CCTV WIFI PTZ Camera System 1080P Outdoor Waterproof Security SystemNegotiableMOQ: 1
-
2/4CH Mini Smart Wireless Ip Network Security Home Surveillance CCTV Battery Camera System 3MP WiFi 7 Inch LCD Monitor Nvr KitNegotiableMOQ: 1
Product Description
Features :
POE interface supports camera plug-and-play, camera access automatically adds out the map.
support VGA, HD-MI simultaneous display, HD-MI support 2K resolution.
Can be connected to 8-way 5MP cameras.
Preview single-screen 5MP real-time preview, 4-screen 960P real-time preview, 8-screen D1

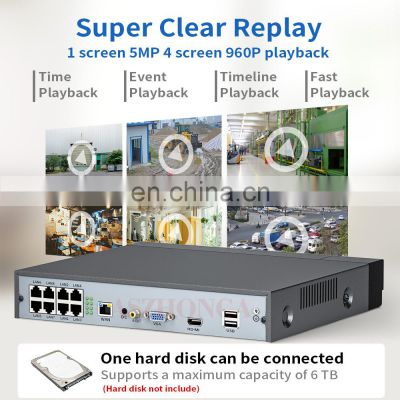

Playback single screen 5MP synchronous playback, 4 screen 960P synchronous playback
support for dual code streams.
support for HD-MI output audio.
cloud station support for intelligent gestures.
support for preview and playback capture map.
video playback with time column display, video type with color, easy and fast retrieval of video information.
video backup can be backed up according to the time of occurrence and length, backup can be accurate to the second
support for batch modification of front-end IPC address, support for remote addition of front-end devices.
can be connected to network cameras, network fast dome; support multi-version ONVIF-Compatible protocol
can be connected to the market mainstream brand IPC (private protocol and standard ONVIF-Compatible).
preview screen can be swapped at will, image position changes, physical address remains the same, convenient for engineering construction.
U disk backup video and images can be directly played back on the host for query, providing more convenience.
ISP parameters can be controlled directly to the front-end IPC.
support remote upgrade of IPC and support remote viewing of IPC information.
support multiple playback modes, fast forward, slow playback, fast rewind, etc., supporting up to 16x fast forward and fast rewind.
Support for H.264/H.265 cameras.
support WEB, VMS management software, support Android/IOS mobile software.
support P2P, support QR code scanning, support cell phone APP playback video.
2K resolution output
Support VGA, HD-MI simultaneous display, HDMI support 2K resolution, multi-screen support.

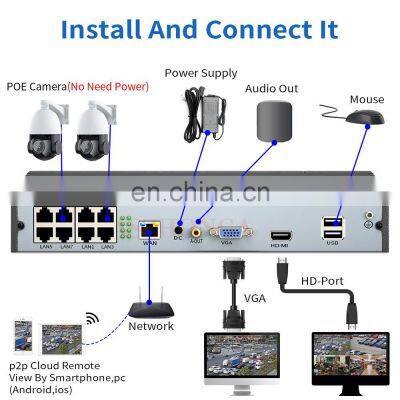

POE Makes Easier Wiring and Installation
The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission, installation easier! Besides, thanks to PoE you will never worry about electric leaks!
Plug and Play
Compatible with many POE cameras on the market.
H.265
Compatible with H.264 and H.265 encoded cameras. Support H.265 video encoding. Smaller video capacity usage and higher video quality with the same bandwidth.
Large capacity hard drive support and high speed playback
Support up to 6TB SATA HDD. Multiple playback modes, fast forward, slow playback, fast rewind, etc. Supports up to 16x fast forward and playback.
Multiple devices support remote viewing
Support WEB, VMS management software, support Android/IOS mobile software
Audio output support
Support audio output connection.
Packing List:
1*8ch POE NVR
1*52V 2.5A AC ADAPTER
1*USB mouse
1*User Manual
Specification
Interface |
||
Operation interface |
16-bit graphical operator interface, supporting mouse operation |
|
Display |
1/4/6/8 screen |
|
Video |
||
Video Access |
8 CH 5MP |
|
Video frame rate |
NTSC@30 fps, PAL@25 fps |
|
Video Output |
VGA*1, HD-MI*1 |
|
Video Decode |
H.264/H.265 |
|
Area masking |
Support (need front-end camera support) |
|
Motion Detection |
Support (need front-end camera support) |
|
Audio |
||
Audio Format |
G.711U G.711A G.726 |
|
Audio Intercom |
Not supported |
|
Audio Input |
1:1 network audio input according to the number of channels |
|
Audio Output |
Support HD-MI output audio, 1-ch RCA audio output |
|
Video Playback |
||
Recording mode |
Timed recording, motion detection recording, manual recording |
|
Playback channels |
1 channel 5MP/4 channel 960P |
|
Video Search |
Time replay, event replay, timeline replay, quick replay |
|
Storage Backup |
||
Video Retention |
Local hard disk, network |
|
Backup method |
USB removable hard disk, USB flash drive, burner |
|
Remote Monitoring |
||
Mobile Phone |
Smartphone support (iPhone, Android) |
|
PC |
Support IE, VMS client remote monitoring |
|
External Interface |
||
Video Output |
1 VGA, 1 HD-MI interface |
|
Network |
1 RJ45 10/100M adaptive Ethernet interface, 8 POE interfaces |
|
Alarm |
NO |
|
Audio |
1-ch RCA output |
|
485 |
无 |
|
USB |
2*USB 2.0 |
|
HDD |
1 SATA 2.0 interface; each SATA interface supports a maximum capacity of 6T |
|
Other |
||
PTZ Control |
PTZ control PTZ camera |
|
ONVIF-Compatible |
YES |
|
POWER |
DC48V 3A |
|
Package Size(mm) |
415*280*85 |
|
Package Weight(kg) |
1.55 |
|
