Help CenterTaxi Fleet Management Solution With Fleet Management System
Related Products
-
GPS Tracking Platform With Gps Container Lock TrackerNegotiableMOQ: 1 -
Professional Fuel Control System For Truck/ Car/ Generator / TankerNegotiableMOQ: 1
-
Fuel Level Sensor + GPS Tracker = Real Time Diesel Control SolutionNegotiableMOQ: 1
-
Jointech Cloud GPS Tracking Software for Fleet ManagementNegotiableMOQ: 1
-
Muti-functional GPS Intelligent Tracking Platform for Cago/asset MonitoringNegotiableMOQ: 1
1. Basic Function
Description | |
Transmission Mode |
TCP/UDP/SMS/GPRS |
Interval type for data uploading |
Time interval / Distance interval / Angle variation |
Data flow control / Power saving mode |
Factory Setting / Customization / GPS module power off |
Intelligent data uploading of time management |
Time Reference / Week Reference /Day Reference |
Vibrating detection |
Built-in triaxial G sensor |
OTA |
Continue transferring from breakpoint |
Mileage Statistics |
GPS mileage / Electronic mileage |
Remote Listen-in |
Active / Passive |
Geo-fence |
64 |
Road / Polygon Geo-fence |
100 |
Hotspot |
100 |
Alarm Type |
GPS/SMS/EMAIL |
Domain name supported / Built-in backup IP supported | |
Blind area data supplementary uploading /History data intelligent uploading (43,200 pieces) | |
GPS antenna open/short circuit detection / GPS signal uploading in real time | |
Self-check/Self-recovery/Self-protection/ Built-in battery | |
Alarm |
20 kinds |
Data flow control / Power saving mode |
Factory Setting / Define by user / GPS module power off |
2. Parameter
Dimension(L×W×H) |
121×82×29mm |
Weight |
820g (with standard accessories) |
Working Current |
60-100mA |
Working Voltage |
10-30V |
Backup Battery |
8.4V 400mAh NI-MH battery |
GPS Chip |
SIRF Star III |
GSM Band |
850/900/1800/1900 Mhz |

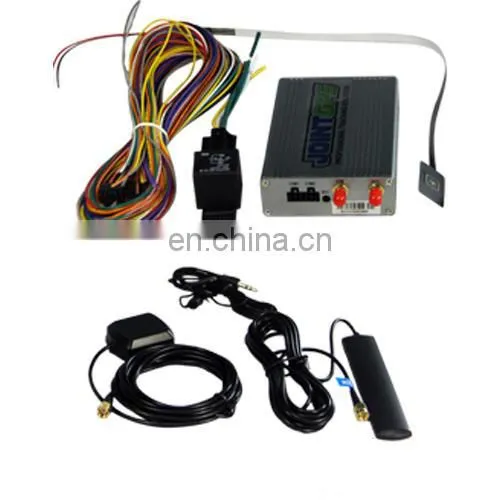

3. Standard Accesories
• GPS Antenna
• GSM Antenna
• SOS Button
• 12V/24V Relay
• Wiring Harness
• Microphone

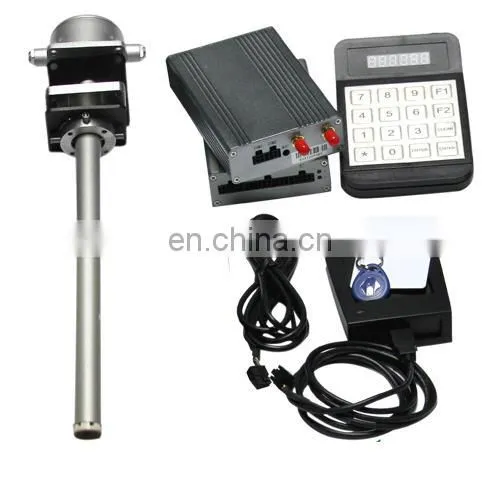

4. Optional External Devices
• RFID
• Scanner
• Taximeter
• CCD Camera
• Password keypad
• Two-way voice box
• Magnetic door sensor
• Concrete mixer sensor
• MDT (Dispatching screen)
• High precision fuel level sensor
• Tire pressure monitoring sensor
• Temperature & Humidity sensor
6. Applications
• Taxi Fleet Monitoring & Management
• Reefer Fleet Monitoring & Management
• Logistics Fleet Monitoring & Management
• Concrete Mixing Fleet Monitoring & Management
• Construction Machineries Monitoring & Management
