Product Description

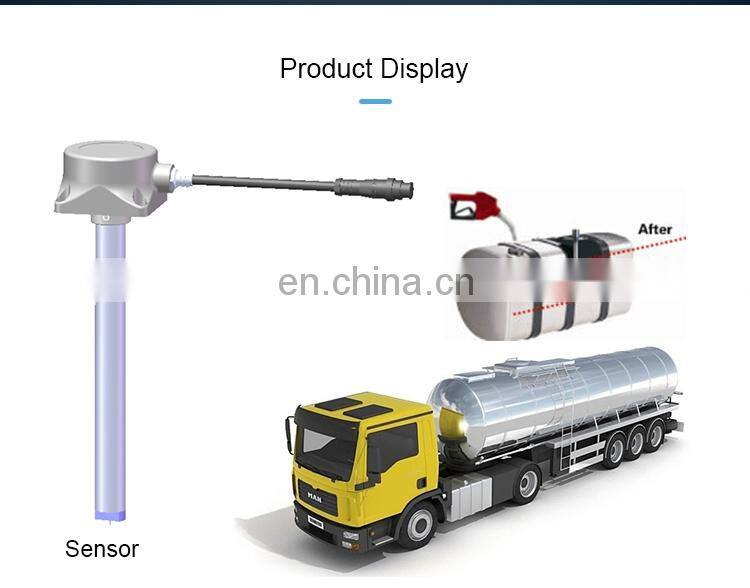

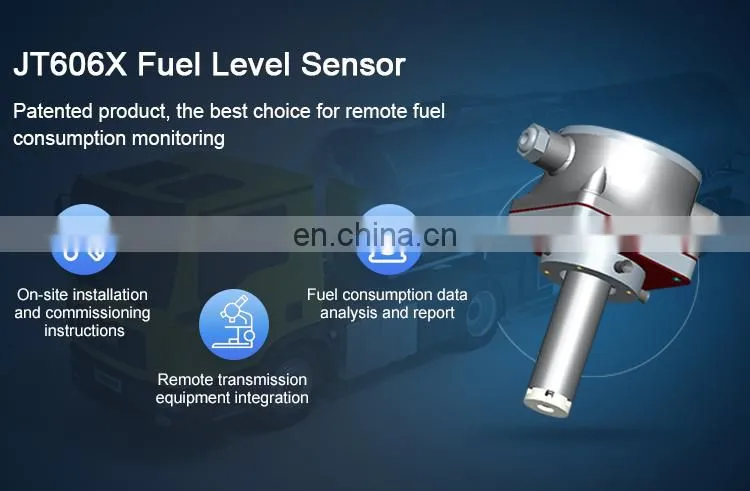

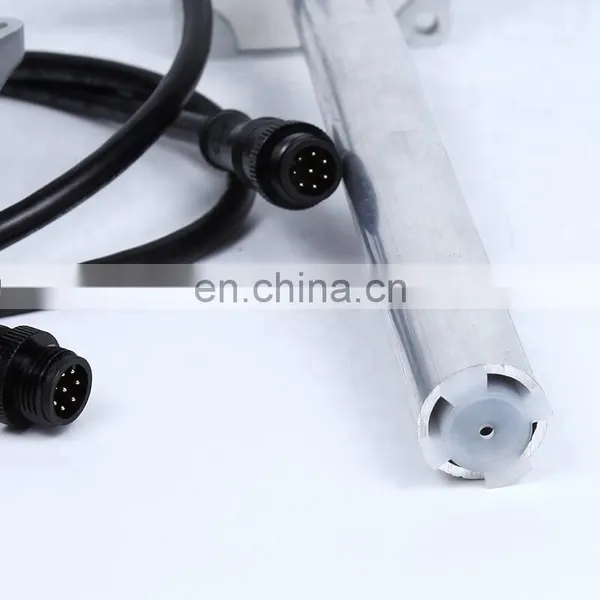

Capacitive Fuel Level Sensor JT606X from Jointech


JT606X Fuel sensor is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.


Unique Features :
1. With 3 technology patents
2. Wide power voltage input
3. Integrated structure without any elastic element
4. Push button field calibration for convenient use
5. Easy to install,can be cut off and detect fuel level continuously

Specifications
Acquisition Principle
Capacitive
Power Input
4-70V
Power Consumption
0.13W/5V,0.19W/12V,0.38W/24V
Accuracy
Resolution: <1mm, Accuracy: <0.5%
Communication Interface
RS-232, RS-485, CAN (Customizable)
Baud Rate
2400,4800,9600,57600,115200 (or customized by users)
Output
Voltage : 0-5V, Current: 4-20mA, Resistance: 10-500Ω
Measuring Range
10CM-150CM
Protection Grade
IP67
Housing Material
Aluminum alloy
Operating Temperature
-40°C ~~+85°C
Storage Temperature
-40°C ~~+105°C
Weight
400g (500mm)
Size
550mm, 750mm, 1000mm (Customizable)
Applications
• Logistics Fleet Fuel Consumption Monitoring
• Oil Transportation Remote Monitoring
• Genset Fuel Consumption Monitoring
• Buses Fuel Consumption Monitoring
• Coaches Fuel Consumption Monitoring
• Consutruction Machineries Fuel Consumption Monitoring
• Diesel Fuel Consumption Monitoring

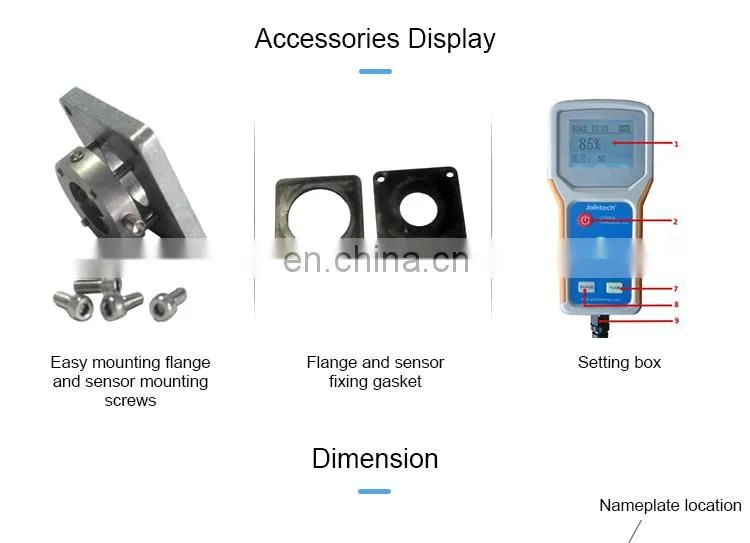

Standard Accessories

• Fuel Sensor
• Flange

External Equipment

JT606X can conect with all the external equipment to meet customized needs.

FAQ

Q:Do you have your own factory?

A:Yes, we are manufacturer in China for over 15 years located in Guangdong, China

Q:Why choose us?

A:we have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.

Q:Do you have your own tracking platform?

A:yes, we can provide not just web based tracking software, but also IOS/Android APPS

Q:Do you provide customized hardware and software?

A:Yes, we can provide not just customized hardware, but also software funcationalities.

Q:What's your delivery time?

A: For samples, 2-4 days, bulk order, 7-15 days generally
