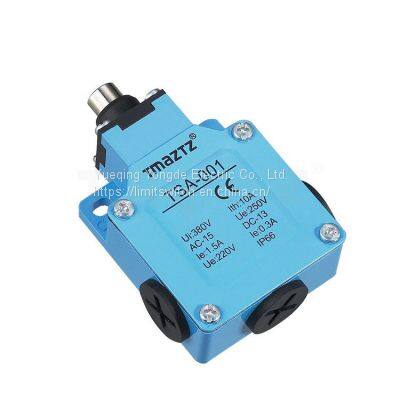

TSA-001 sealed plunger actuator Limit Switch
■ Stainless steel idler wheel, punch and spring;
■ Selective M18x1.5 cable gland.
Ratings
Rated voltage |
Noninductive Load (A) |
Inductive Load (A) |
||||||
Resistance Load |
Lamp Load |
Inductive Load (A) |
Motor Load |
|||||
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
125VAC |
5 |
5 |
1.5 |
0.7 |
3 |
3 |
2 |
1 |
250VAC |
5 |
5 |
1 |
0.5 |
3 |
3 |
1.5 |
0.8 |
8VDC |
5 |
5 |
3 |
3 |
5 |
4 |
3 |
3 |
14VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
30VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
125VDC |
0.4 |
0.4 |
||||||
250VDC |
0.2 |
0.2 |
||||||
Inrush Current |
N.C: below 24A, N.O: below 12A |
|||||||
NOTE:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Characteristics
Operation speed |
0.5mm-50cm/sec |
Operating frequency |
Electical: 30 operations/minute |
Contact resistance |
25mΩ max. (initial value) |
Insulation resistance |
100MΩ min. (below 500VDC) |
Dielectric Strength |
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
Vibration |
10-55Hz,1.5mm double amplitude |
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
Ambient Temperature |
-10~+65℃ (With no icing) |
Humidity |
|
Weight |
About 195 to 246g |
Electrical Life |
Above 500000 |
Degree of protection |
IP65 |
