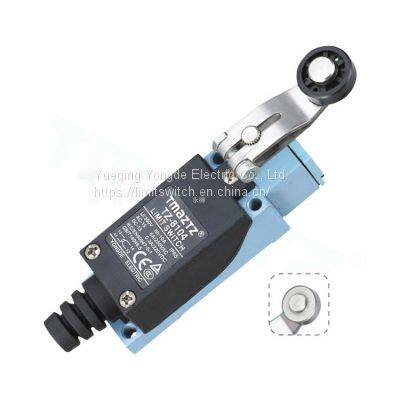

TZ-8104 Roller Lever Actuator Limit Switch

TZ-8104 roller lever actuator Limit Switch

■ Double-circuit type of limit switch.

■ Compact new design approximately 1/3 the size of TMAZTZ vertical limit switches.

■ With strong zinc cast base, and reinforced plastics outer shell, High. Structure preventing oil, water and pressure.

■ Structure enables the terminal section to be fully opened for easy wiring.

■ Degree of protection: IP65

■ Aslo includes stainless steel roller model

TZ-8 Limit Switches

TZ-8 limit switch in the specific production and manufacture, the limit switch is installed in a pre-arranged part, when the control module installed on the production of molecular thermal motion components collides with the limit switch, the contact point posture of the limit switch completes the conversion of the power supply circuit. Therefore, the limit switch is a kind of household appliance that converts the power supply circuit according to the stroke arrangement part of the fitness exercise component, and its basic principle of efficacy is similar to that of the button.

Ratings

NOTE:

1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).

2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.

Characteristics
