Product description:
The lithium-ion battery pack welding quality inspection machine is used to detect fake welding and missing welding of battery packs, and provides guarantee for the quality of battery pack welding.
Features:
1. Fully automatic detection, recording the data of each battery cell, greatly reducing the false detection and missed detection caused by manual detection.
2. Adopting modular design, it has good expansion flexibility and maintenance convenience.
3. The use of high-reliability hardware circuit design, high-frequency sampling technology and advanced digital control technology platform can ensure high-precision output and high stability, thereby ensuring test quality and data reliability.
4. Centralized control by the host computer, real-time monitoring of equipment operating status.
5. The server and MES system can be connected, which makes it easier to collect product test data.
6. The system uses self-developed test pins and high-reliability hardware circuit design to ensure stable and reliable test connections, thereby ensuring test quality and data accuracy, and providing effective guarantees and comprehensive data support for the reliability of battery modules.
Scope of application:
This battery pack welding quality inspection machine is suitable for the rapid inspection of the welding reliability of lithium-ion battery packs of ultrasonic welding equipment & wire bonding machine, including 18650 battery module and 21700 battery module.

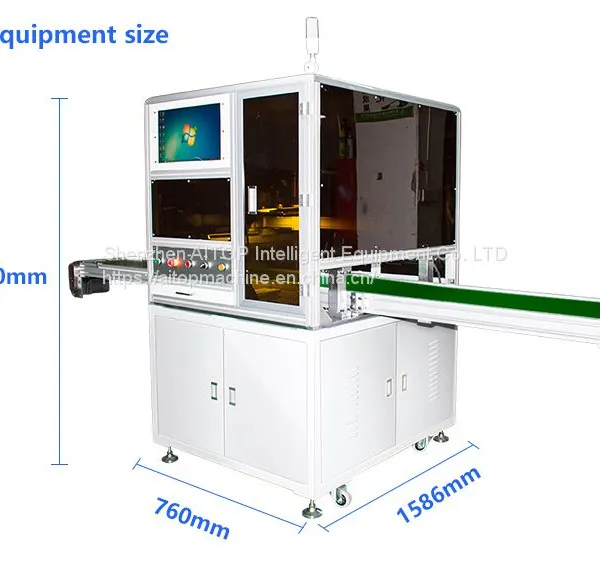

Brief introduction of the battery pack inspection equipment
|
Product name |
Battery Pack Welding Quality Inspection Machine |
|
Product model |
AITOP-930 |
|
Applicable modules |
18650 battery module: 540*340mm |
|
21700 battery module: 968*314*86mm | |
|
21700 battery module: 657*314*88mm | |
|
Customizable | |
|
Test speed |
≤6~12min/side |
|
Gas nozzle distance |
The distance between the gas nozzle and the welding point:
|
|
Blowing force |
230~300g |
|
Detection accuracy |
Missed detection: 0% |
|
False detection: | |
|
Test pins life |
＞300,000 times |
|
Current accuracy |
±(0.05%FS+0.05%RD) |
|
Data recording time |
≥100ms |
|
Software function |
Support cyclic working condition file import test function |
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/
008618435204981/18098989643/+8618820281861
Email:sales(@)aitop-group.com
Our other product catalogues
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 30-35 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
FAQ
Q: What can your machines do?
A: Make the batteries production automatically.
Save the factory owner's invest and better the efficiency.
Q: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q: How can I see samples or know more about the machines?
A: We have real time video on Youtube.
Please contact our sales to get the links.
Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.
Our factory MOQ is 1 set.
Q: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.
All of our products are with CE certifications and are good to export worldwide.
Q: I am a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories.
Our professional engineers and sales shall provide you with budget and costs how much it takes.
Looking forward to establish good business relationship with you
