TOP-080520

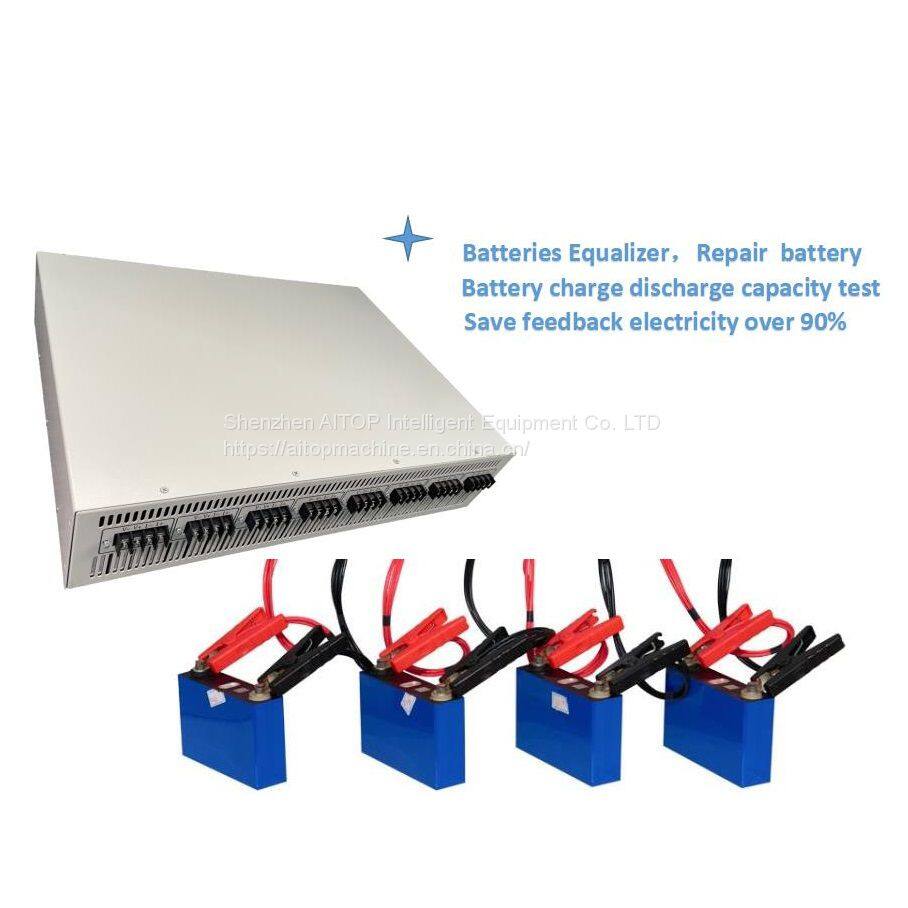

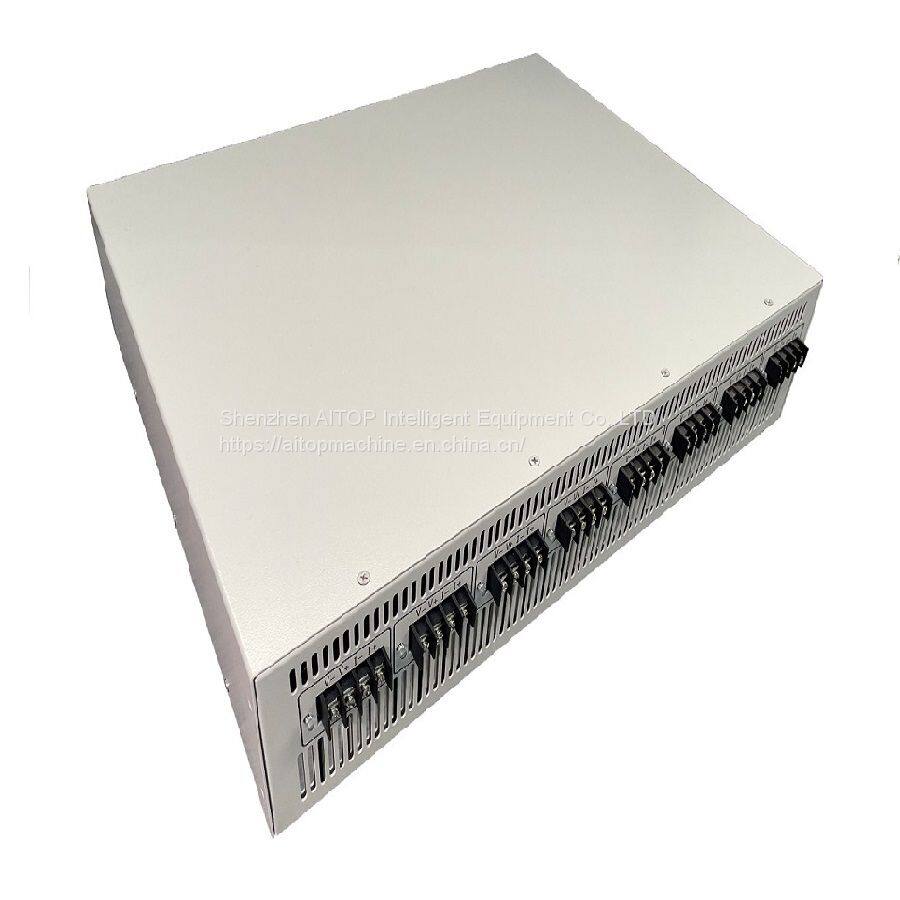

5V20A（8ch）High-precision
energy-saving (feedback type) battery capacity tester
AITOP-BTS EC5208
Product Description

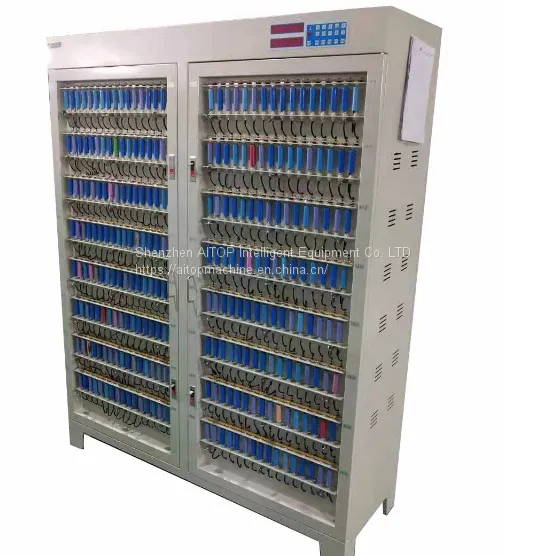

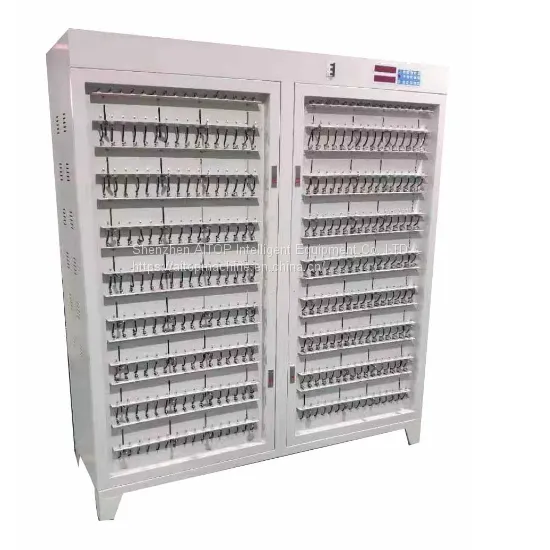

Battery Analyzer Capacity Tester
Battery cell charge and discharge machine

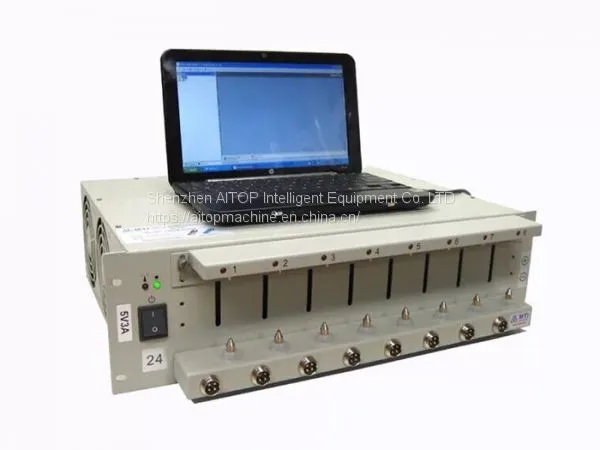

8 Channel 26650 /32650/18650 Battery charging Discharging Capacity Tester Analyzer 5V3A/5V6A/10A/20A/60APerformance characteristics
Performance characteristics
1. The power tube uses 50N06, suitable for batteries that require lower discharge voltages, such as
lithium iron phosphate batteries.
2. Supporting software features.
3. With the power-off protection function, the original work flow can be continued after the call.
4.full charge and discharge curve of all channels, and can also be separated from the upper
computer and complete the operation through the control panel. Constant current constant voltage
charge, constant current discharge test, time sorting and other work.
5. Real-time detection of each battery voltage, charging, the first constant current charging, when the
battery voltage reaches the set value, will be smoothly transferred to constant voltage charging, to
meet the set time or current termination conditions, the charge is over. During constant current
discharge, when the battery voltage is lower than the set value, the discharge is completed and the
corresponding battery indicator lights up.
Number of device channels | 8 channels (full screen control) |
Sampling inspection interval | ≤8 seconds / week |
Constant current range | 0.05 ~ 3000mA,/6A resolution 1mA |
Current measurement accuracy | ± 0.1% FS |
Sampling current accuracy | ± 0.1% FS |
Voltage measurement range | 0 ~ 5V, resolution 1mV |
Voltage measurement accuracy | ± 0.1% FS |
Charge and discharge voltage range: | 0 ~ 4.5V, Discharging: 4.5 ~ 2V |
Constant voltage setting range | 3 ~ 4.5V |
Constant voltage setting accuracy | ± 0.1% FS |
Time range | 0 ~ 30000 minutes / step, accuracy: ± 0.1% |
Cooling method | Air fan |
Fixture form: | Quick clamper |
Working condition: | 0 ~ 40 ºC, Hum. ≤85% |
Dimensions Manual: | 1430 Wx 500 L x 1840mm H |
Power supply | AC380V 50HZ |
Power consumption | 18KW Max |
| |
Techinical Parameters:
| SPECIFICATION | |||
| Model | TOP-500 | ||
| Power Supply | AC 220V, 50Hz | ||
| Power | 200w | ||
| Efficiency | 4000 pcs/h | ||
| Cells applied | 18650 battery cells | ||
| Programming interface | LCD screen | ||

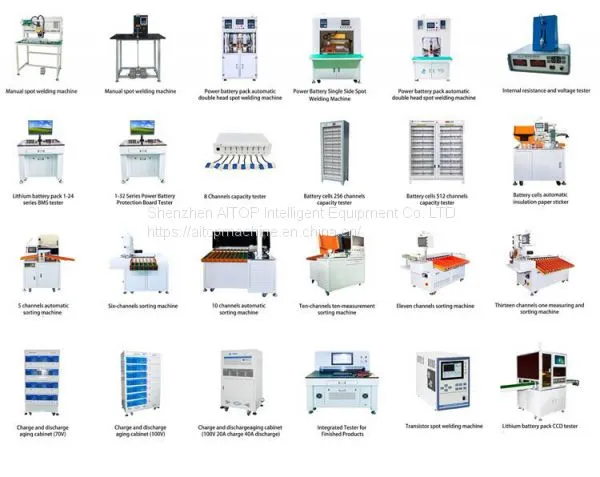

WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.

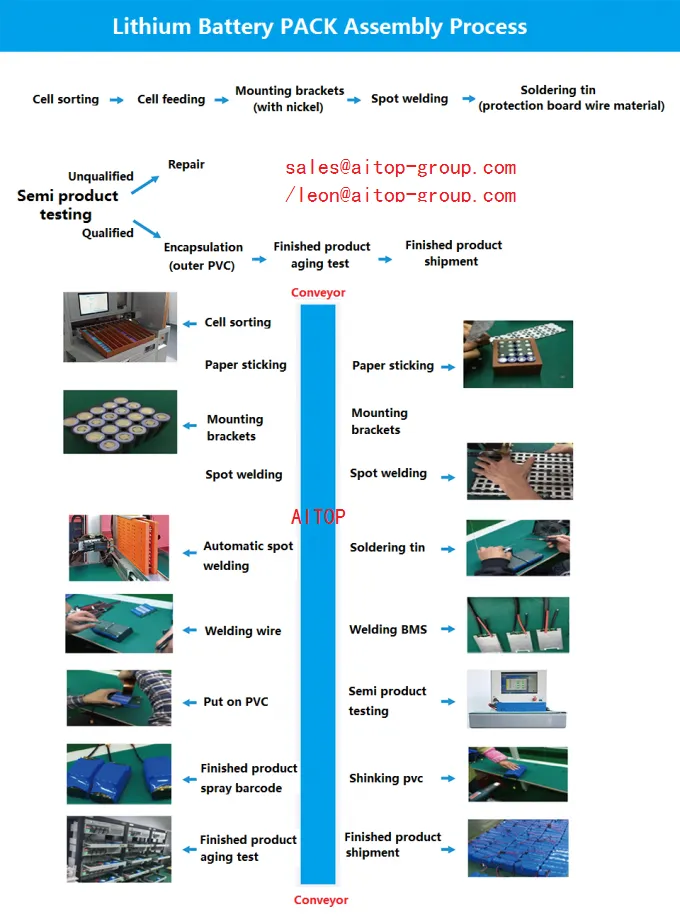

We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
