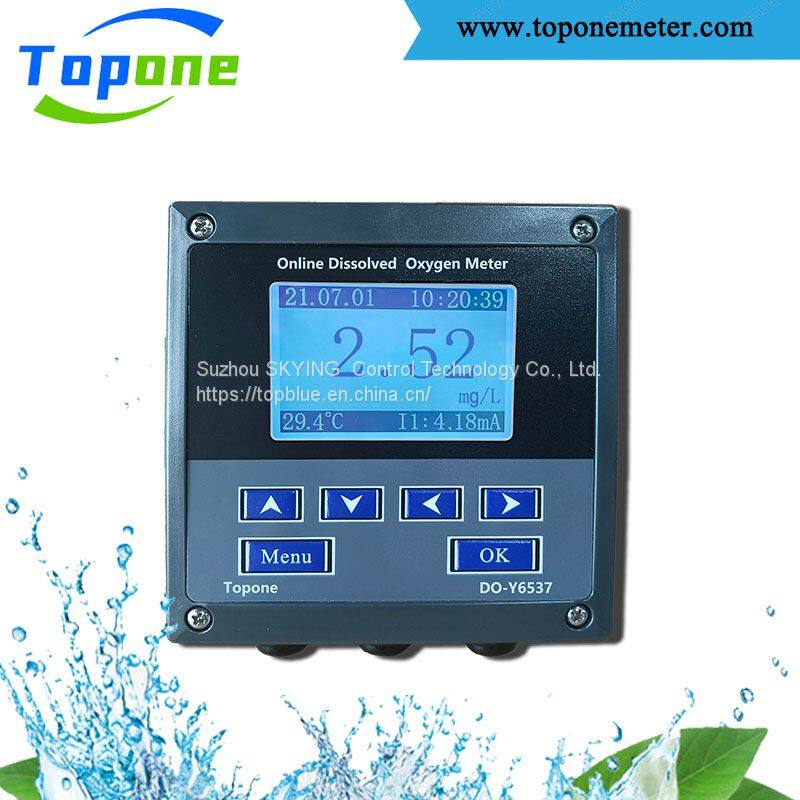

Help CenterDO-6537Y Dissolved Oxygen With Fluorescence Meter
Related Products
-
DODCG616 Dissolved Oxygen Electrode for High Temperature FermentationUS$ 1000 - 1600MOQ: 1 Piece -
ph Meter&DODS625 Dissolved Oxygen Sensor ElectrodeUS$ 650 - 1100MOQ: 1 Piece
-
ph Meter&DODS615 Digital Dissolved Oxygen Sensor Electrode/ IP68 Do Electrode Dissolved Oxygen Sensor for Water AnalysisUS$ 250 - 400MOQ: 1 Piece
-
DODC612 Dissolved Oxygen SensorUS$ 250 - 350MOQ: 1 Piece
-
DODC630 Online Micro Dissolved Oxygen SensorUS$ 680 - 980MOQ: 1 Piece
Applications：
Fluorescence industrial on-line dissolved oxygen
meter is a microprocessor based water quality on-line
monitoring and control instrument with .
The instrument equipped with fluorescent dissolved
oxygen electrode is widely used in power plants,
metallurgical electronics, mining, paper industry,
food and beverage,water treatment, aquaculture and
other industries;It continuously monitor and control
the dissolved oxygen and temperature value of water
solutions.
Feature：
●LCD screen, multi-line display
●Intelligent menu operation
●Data Recording & Curve Display
●Various automatic calibration functions
●Manual or automatic temperature compensation
●High alarm & low alarm,hysteresis control
●4-20mA&RS485Multiple output modes
●Dissolved oxygen, temp, etc.simultaneouslyshowed on the same screen
●Password protection function to preventmisoperation by non-staff.
Technical parameters:
Measurement range:DO：0～20.0mg/L；0～100%；
Temp：0～50.0℃；
Resolution:DO：0.01mg/L；0.1%；
Temp：0.1℃；
Basic error: DO：±1%F.S；
Temp：±0.3℃；
Electrode residual signal：＜1‰；
Response time（final value 90%）：25℃＜60S；35℃＜30S；
Tability： At constant pressure，
Weekly drift＜2%F.S；
Two current outputs：0/4 ~ 20 mA (load resistance；20～4mA(load resistance＜750Ω)；
Communication output: RS485 MODBUS RTU；
Three groups of relay control contacts:5A 250VAC，5A 30VDC；
Power supply (optional)：85～265VAC±10%,50±1Hz，
Power :≤3W；9～36VDC，
Power : ≤3W；
Overall dimension:144×144×118mm；
Installation mode: panel, wall hanging, pipe type;
Panel opening size：138×138mm；
Waterproof grade： IP65；
Instrument weight： 0.8kg；
Instrument working environment：Environment temperature ：-10～60℃；
Relative humidity：≦90%；
In addition to the earth's magnetic field aroundno strong magnetic interference
