Applications：

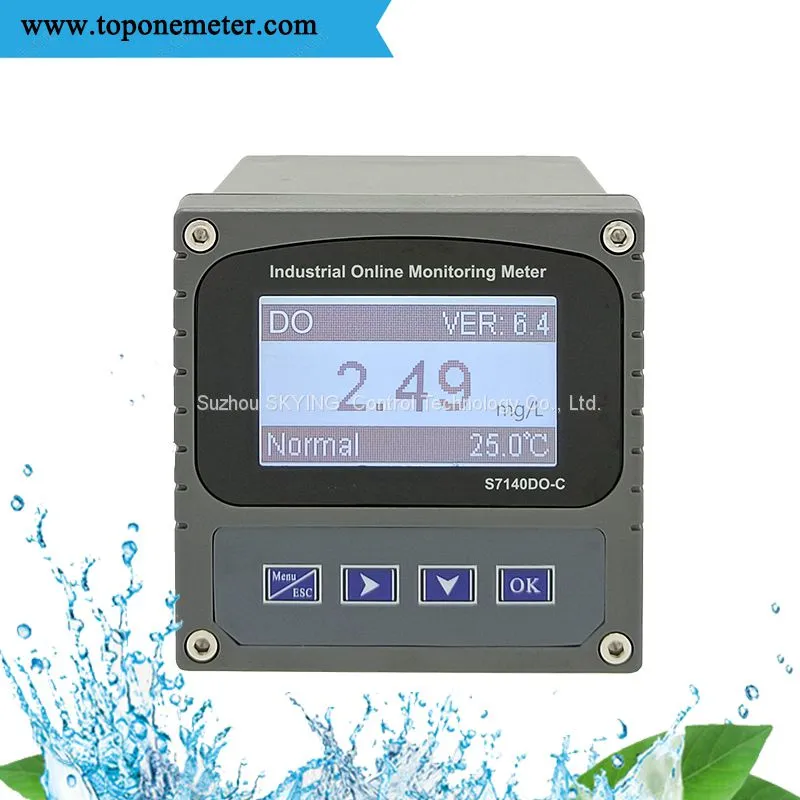

Industrial on-line microprocessor-based dissolved
oxygen meter is a water quality on-line monitoring
and control instrument. The instrument is equipped
with polarographic dissolved oxygen electrode, which
is widely used in power plants, petrochemical industry,
metallurgical electronics, mining industry, paper
industry, biological fermentation, medicine, food and
beverage,water treatment, aquaculture and other
industries.It continuously monitor and control the
dissolved oxygen value and temperature value of
water solutions.
Feature：
●LCD display
●Intelligent menu operation
●Various automatic calibration functions
●Manual or automatic temperature compensation
●Two sets of relay control switches
●High alarm & low alarm,hysteresis control
●4-20mA&RS485Multiple output modes
●Dissolved oxygen, temp, etc.simultaneouslyshowed on the same screen
●Password protection function to prevent misoperationby non-staff.
Technical parameters:
Measurement range:DO:0～200μg/
Temp:-10～150.0℃；
Resolution:DO：0.1μg/L；0.01mg/L；
Temp:：0.1℃；
Basic error: DO：±1%F.S；
Temp: ±0.3℃；
Electrode residual signal：＜1‰；
Response time（final value 90%）：
25℃＜60S；35℃＜30S；
Tability： At constant pressure，
Weekly drift＜2%F.S；
Two current outputs：0/4 ~ 20 mA (load resistance；20～4mA(load resistance＜750Ω)；
Communication output: RS485 MODBUS RTU；
Two groups of relay control contacts：
3A 250VAC，3A 30VDC；
Power supply (optional)：85～265VAC±10%,50±1Hz，
Power ≤3W；9～36VDC，
Power ：≤3W；
Overall dimension：98×98×130MM；
Installation mode: panel, wall hanging,
Panel opening size：93×93MM；
Waterproof grade： IP65；
Instrument weight：0.6KG；
Instrument working environment：
Environment temperature ：-10～60℃；
Relative humidity：≦90%；
In addition to the earth's magnetic field aroundno strong magnetic interference
