Applications：

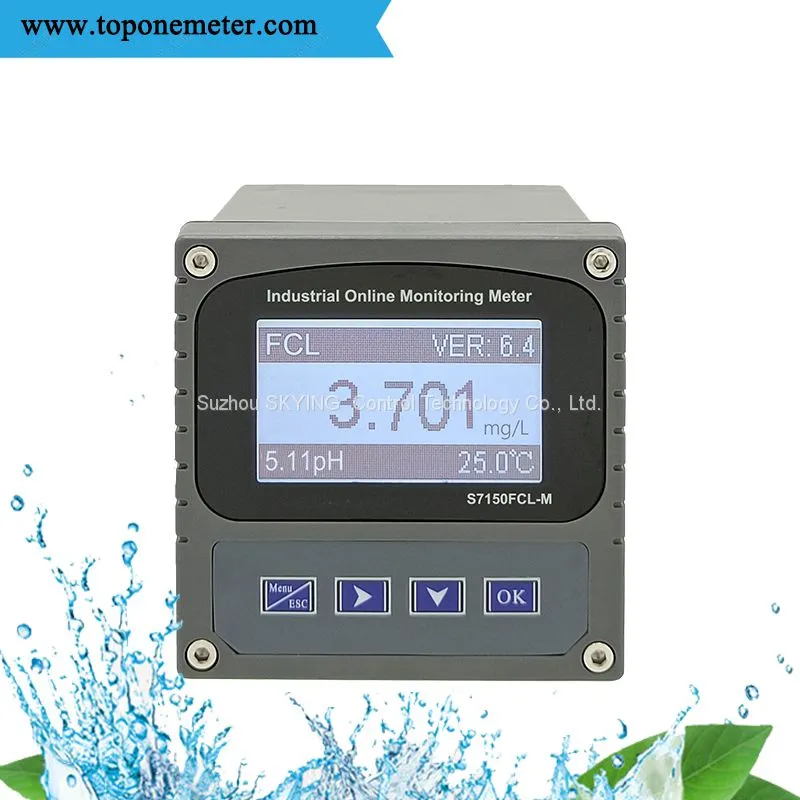

Industrial on-line residual chlorine meter is a water
quality on-line monitoring and control instrument with
microprocessor. It is widely used in drinking water
treatment plant, drinking water distribution network,
water quality treatment engineering,swimming pool,
sewage treatment, water quality disinfection and other
industrial processes, to continuously monitor and
control the residual chlorine value, pH value &
temperature value in water.
Feature：
●LCD display
●Intelligent menu operation.
●Multiple signal output modes
●Two sets of relay control switches
●High alarm & low alarm, hysteresis control
●4-20mA&RS485 multiple output modes.
●Residual chlorine, temperature and current, etc.simultaneously showed in one screen.
●Password protection function to preventmisoperation by non-staff.
Technical parameters:
Measurement range:Residual Chlorine：0～10.00mg/L～20.00mg/L；
pH：0～14.00pH；
Temp：-0～50.0℃；
Resolution:Residual Chlorine：0.001mg/L；
pH：0.01pH；
Temp：0.1℃；
Basic error: Residual Chlorine：±1%F.S；
pH：±0.05pH；
Temp：±0.3℃；
Response time：90% less than 90s
Two Current output:0/4~20mA(load resistance20~4mA(load resistance
Communication output: RS485 MODBUS RTU；3A 250VAC，3A 30VDC；
Power supply(optional):85～265VAC±10%,50±1Hz，Power :≤3W；9～36VDC，Power : ≤3W；
Overall dimension：98×98×130MM；
Installation mode: panel, wall hanging,
Panel opening size：93×93MM；
Waterproof grade： IP65；
Instrument weight：0.6KG；
Instrument working environment：Environment temperature ：-10～60℃；
Relative humidity：≦90%；
In addition to the earth's magnetic field aroundno strong magnetic interference
