Hydraulic Concrete Stone Breaker Rock Splitter Machine Mexico Japan Turkey Russia Philippines Romania
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hay Baler China Quantity Tractor Pickup Cylinder Power Sales Wheel Pcs Weight Bale Origin TypeNegotiableMOQ: 1 -
Excavator Mounted Hydraulic Rock Splitter Machine MexicoNegotiableMOQ: 1
-
Hand Held Hydraulic Rock Splitter Stone Cutting MachineNegotiableMOQ: 1
-
Widely Used Diesel Off Road All Terrain Forklift With Various AccessoriesNegotiableMOQ: 1
-
Factory-sold Multi Functional 3 Ton Off-road ForkliftNegotiableMOQ: 1
Product Description
Hydraulic Concrete Stone Breaker Rock Splitter Machine
The hydraulic stone splitter
& Concrete splitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
&Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in these product, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
Hydraulic Concrete Stone Breaker Rock Splitter Machine Features
&The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllably split rock or concrete. Especially suit for cabined area where large machine can not work.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
Specification
Technical parameter for Hydraulic Concrete Stone Breaker：
Model No. |
Drilling diameter |
Drilling depth |
Split block length |
Theory splitting force |
The actual splitting force |
Weight |
Crack width |
(mm)D |
(mm)L |
(mm)D |
(T) |
(T) |
(kg) |
(mm) |
|
HW80-250 |
Φ38-42mm |
≥450mm |
150 |
600 |
450 |
25 |
10--30 |
HW90-250 |
Φ40-42mm |
≥550mm |
250 |
680 |
480 |
30 |
10--30 |
HW90-350 |
Φ42-46mm |
≥650mm |
350 |
700 |
500 |
33 |
10--30 |
HW100-350 |
Φ46mm |
≥750mm |
350 |
780 |
600 |
35 |
10--30 |
Technical parameter for Diesel engine：
Power model |
overall size(mm) |
Weight(kg) |
Oil pumping station reserves |
Engine Power |
Working pressure |
flux(L/m) |
Towable of splitter quantity(pc) |
Diesel engine |
1150*1180*940 |
260 |
40(L) |
5.15KW |
55-60(MPa) |
2-13 |
1-1 |
Technical parameter for Gasoline engine：
Power model |
overall size(mm) |
Weight(kg) |
Oil pumping station reserves(L) |
Engine power |
Working pressure(MPa) |
Flux(L/m) |
Towable of splitter quantity(pc) |
Gasoline model |
1200*1170*800 |
100 |
40 |
7.5HP |
55-60 |
2-13 |
1-10 |
Technical parameter for electric engine：
Power model |
overall size(mm) |
Weight |
Oil pumping station reserves (L) |
Engine power |
Working pressure(MPa) |
Flux |
Towable of splitter quantity(pc) |
(kg) |
(L/M) |
||||||
Electric motor |
23 |
5 |
0.75KW(220V/380V) |
55-60 |
0.7 |
1 |
|
384*280*620 |
75 |
30 |
3KW(380V) |
55-60 |
2 |
1-3 |
|
7.5KW(380V) |
55-60 |
13 |
1-10 |
Products Details

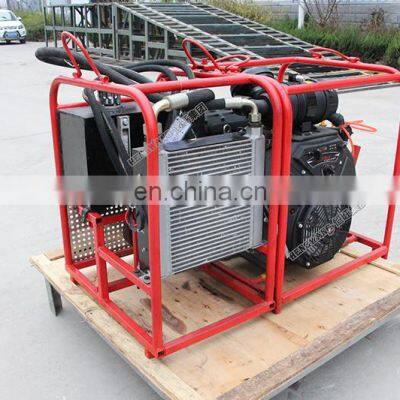

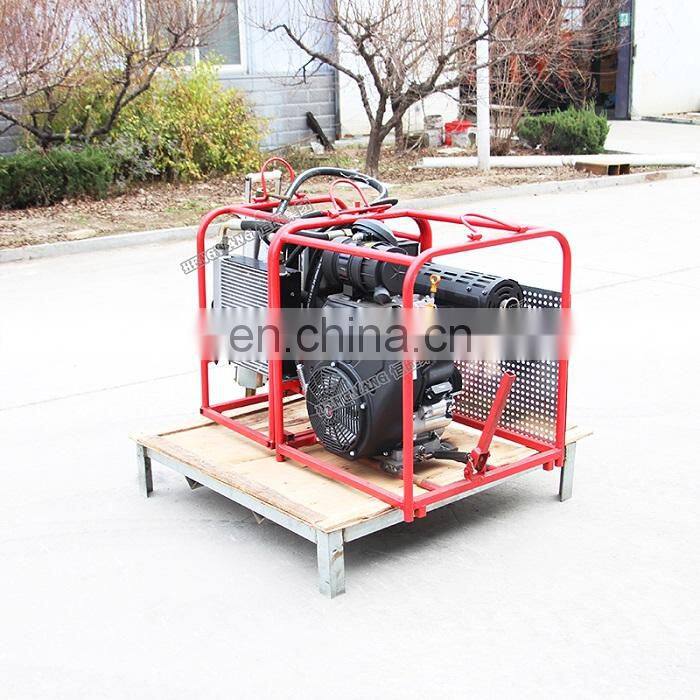

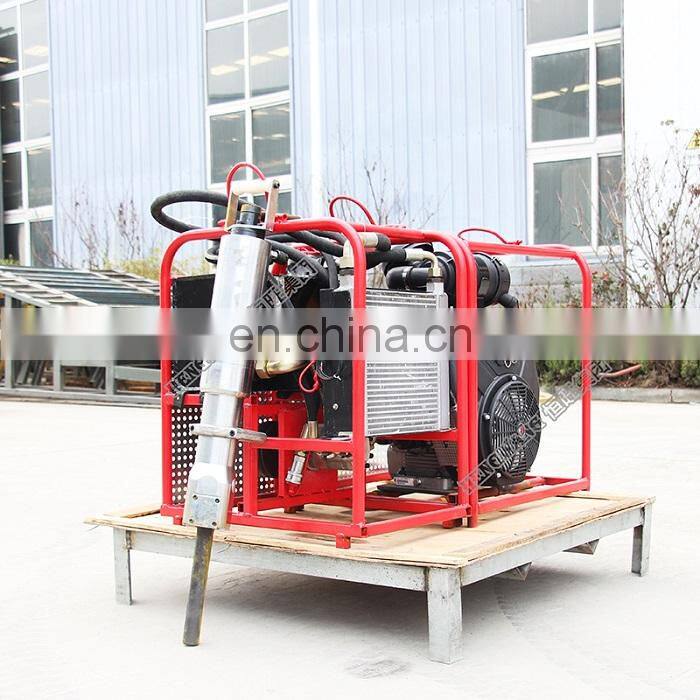

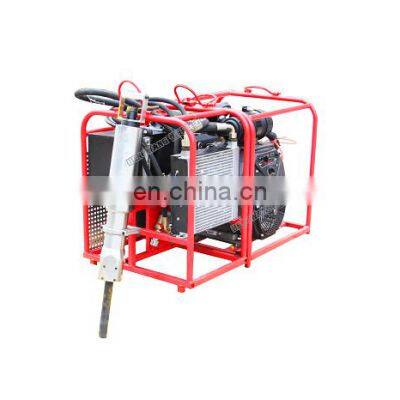

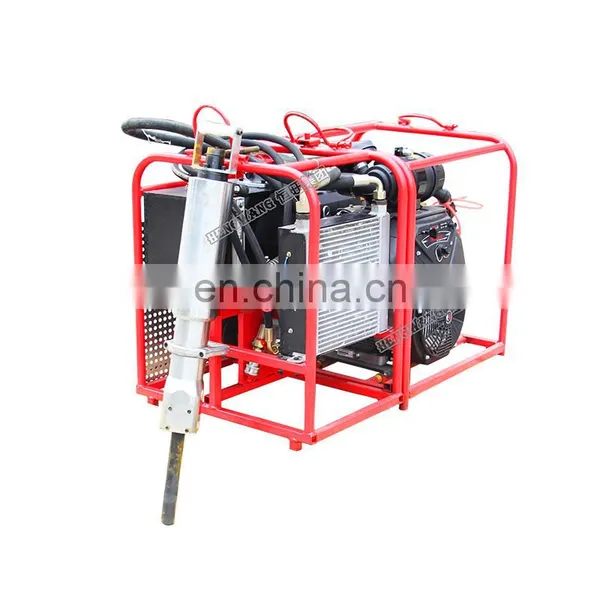

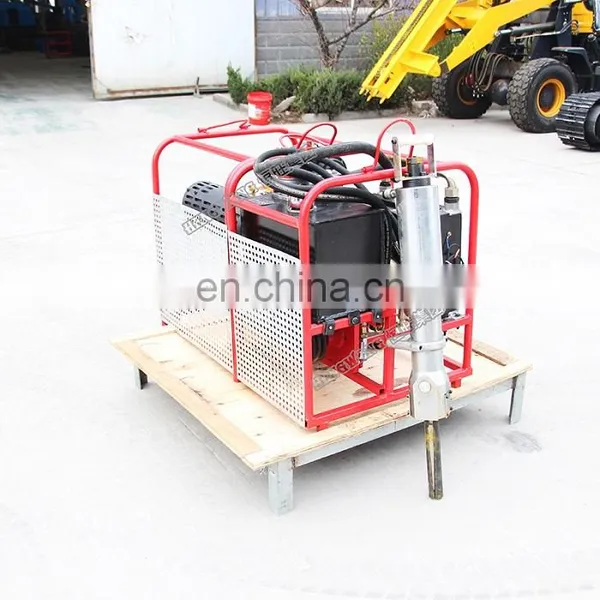

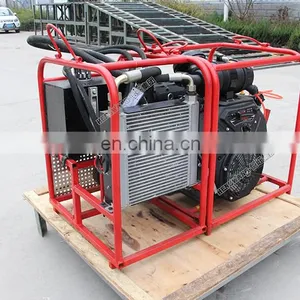

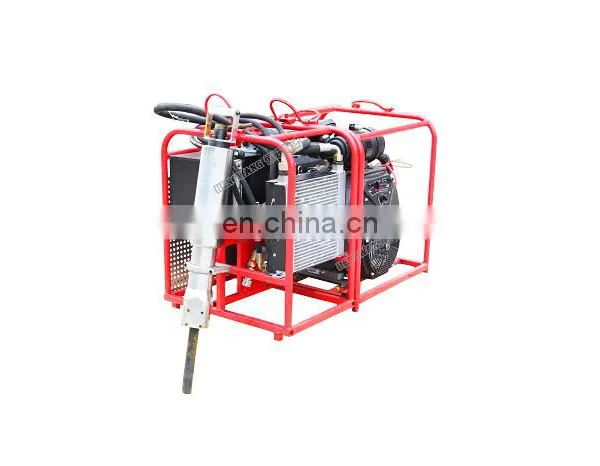

Portable rock splitter hydraulic stone splitting machine
hydraulic stone splitting machine
