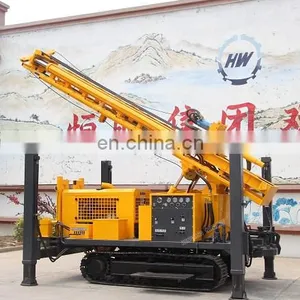

300M Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump

Name: 300M Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

****HW-Hydraulic DRILLING RIG
HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.

****Main features
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.

hydraulic well drilling rig technical specifications：
Weight	600KG/650KG/880KG	Spindle Speed	64~1045(r/min)
Max.Drilling depth	160m/190m/230m	Spindle Stroke	450mm
Soil Open hole dia.	500mm/500mm/500mm	Winch single rope lift force	2000kg-2500kg
Rock Open hole dia.	220mm/220mm/273mm	Winch single rope lift speed	0.12-1.64(m/s)
End hole dia.	75mm~200mm	Winch Rope dia.	9.3mm/9.3mm/12..5mm
Drill rod dia.	42/50/60	Winch Rope capacity	27M/27M/35M
Drill angle	90-75°	Drill Mast Rated load	18T
Engine Power	13/14/16KW	Drill Mast Effective height	6.5M
Inlet hose dia.(mm)	51mm	Mud pump Flow	95~145L/min
Dimension	2.70.91.5	Mud pump ure	1.2~2Mpa
Outlet hose dia.(mm)	32mm	Mud pump reciprocations time	93 times/min

Detailed Images

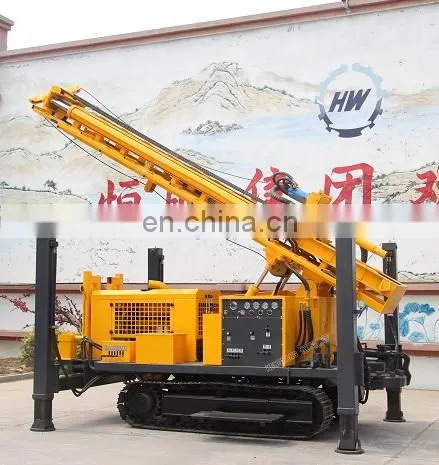

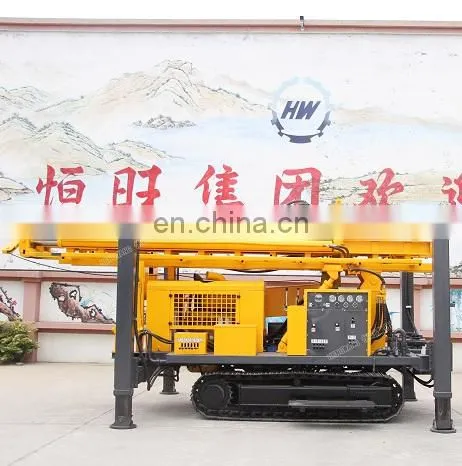

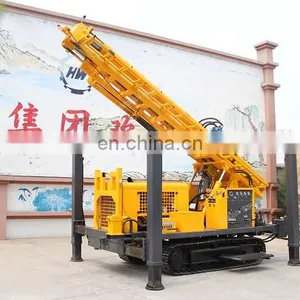

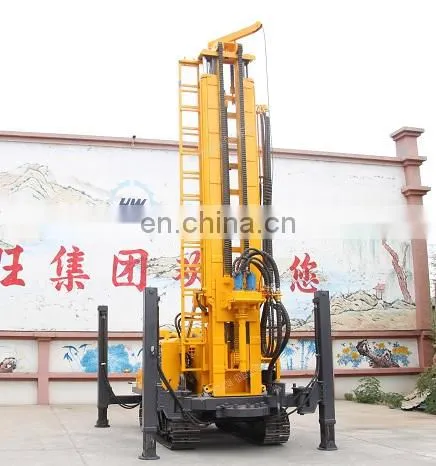

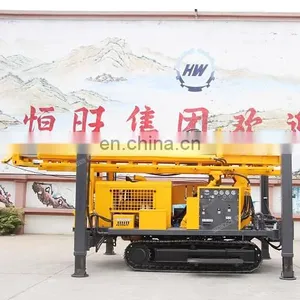

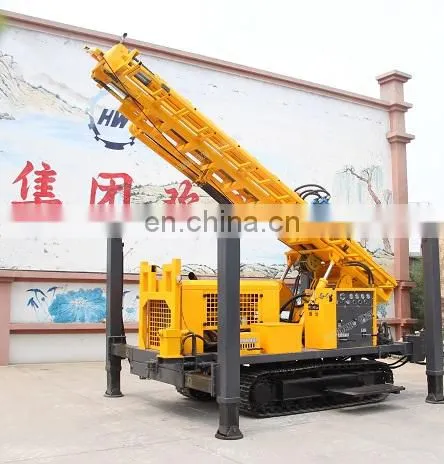

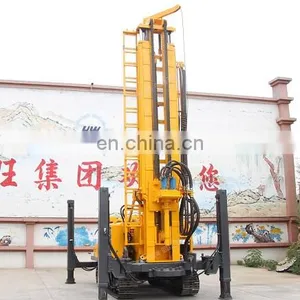

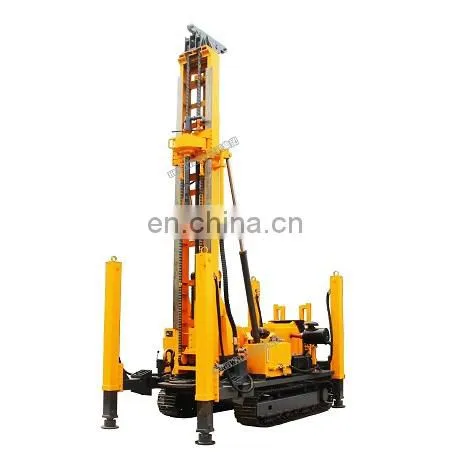

High Quality portable water well drilling rig rock bore drilling machine

Work shop

230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump

Company Profile

230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump

Certifications

Shandong hengwang group has passed the ISO and CE double certification audit, can be assured to buy all our products...

Shandong hengwang machinery equipment co., LTD. Customers all over the world

Customer exhibition and related photos

Welcome new and old friends at home and abroad to negotiate trade, create great cause, altogether cast brilliant.

The corporate culture of the company is "providing convenient services for customers and creating development opportunities for employees", the management philosophy of the company is "quality is the stepping stone" and the enterprise spirit of "making unremitting efforts to enjoy success".

Packing&Shipping

Shandong hengwang machinery equipment co., LTD. Customers all over the world

The company's business philosophy "quality is the stepping stone" and "enterprise spirit".
