China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling

China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling thumbnail-1
China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling thumbnail-2
China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling thumbnail-3
China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling thumbnail-4
China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling thumbnail-5
China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling photo-1

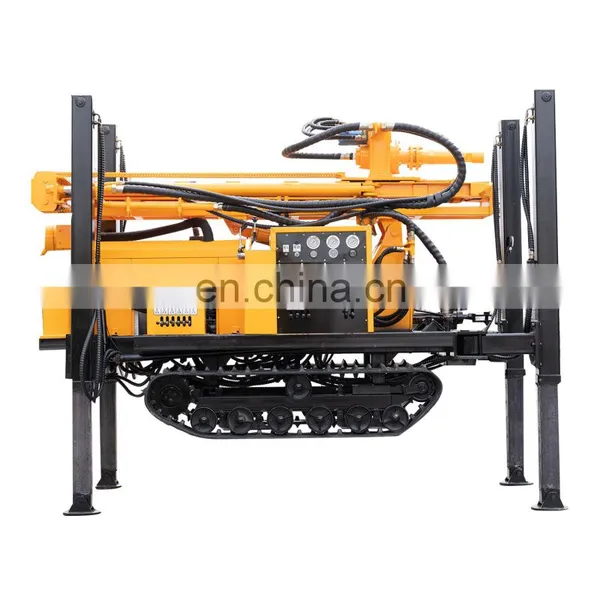

China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling photo-2

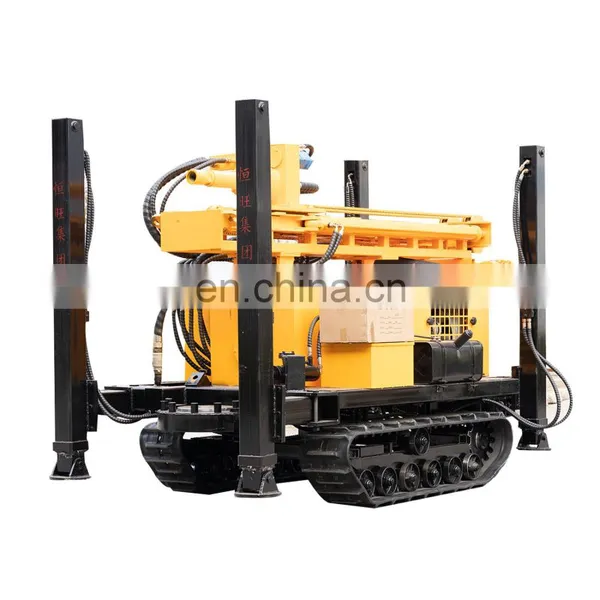

China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling photo-3

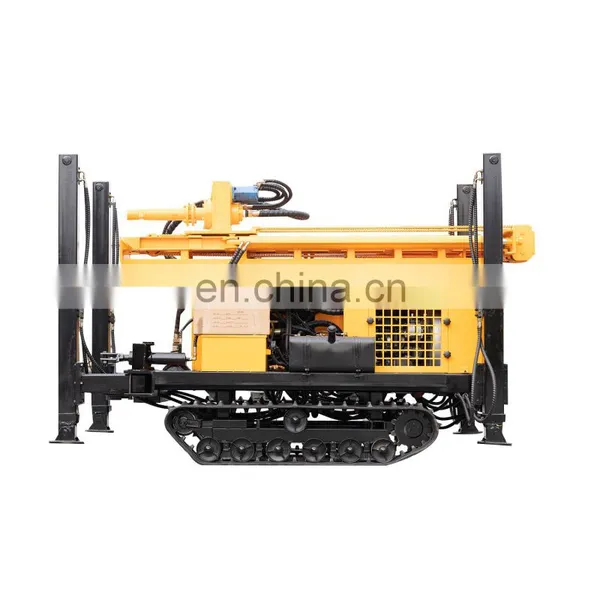

China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling photo-4

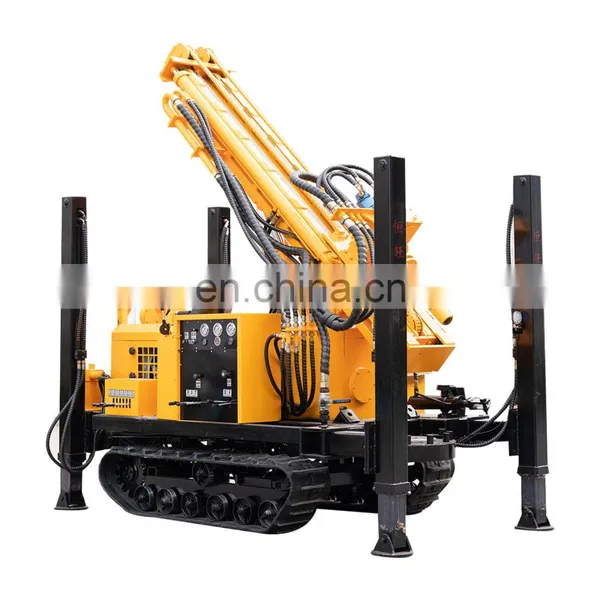

China HW BRAND 300m-1000m Depth Pneumatic Rock Blasting Drill Rig For Mining And Quarry Drilling photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
****HW-Hydraulic DRILLING RIG
HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.

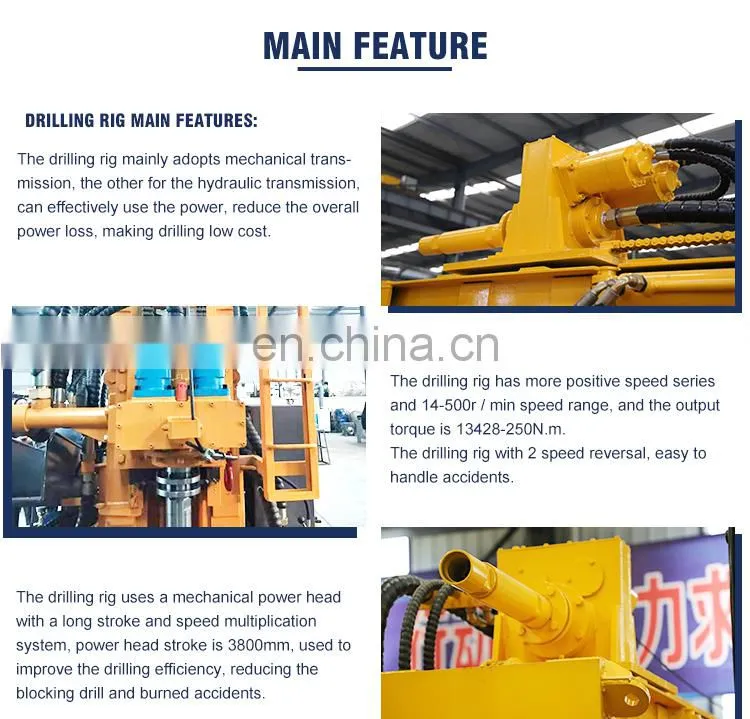

****Main features
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
Mobile hydraulic well drilling rig technical specifications：



Weight
600/650/850KG
Spindle Speed
64~1045(r/min)
Max.Drilling depth
160m/190m/230m
Spindle Stroke
450mm
Soil Open hole dia.
500mm/500mm/500mm
Winch single rope lift force
2000kg-2500kg
Rock Open hole dia.
220mm/220mm/273mm
Winch single rope lift speed
0.12-1.64(m/s)
End hole dia.
75mm~200mm
Winch Rope dia.
9.3mm/9.3mm/12..5mm
Drill rod dia.
42/50/60
Winch Rope capacity
27M/27M/35M
Drill angle
90-75°
Drill Mast Rated load
18T
Engine Power
13/14/16KW
Drill Mast Effective height
6.5M
Inlet hose dia.(mm)
51mm
Mud pump Flow
95~145L/min
Dimension
2.7*0.9*1.5
Mud pump ure
1.2~2Mpa
Outlet hose dia.(mm)
32mm
Mud pump reciprocations time
93 times/min

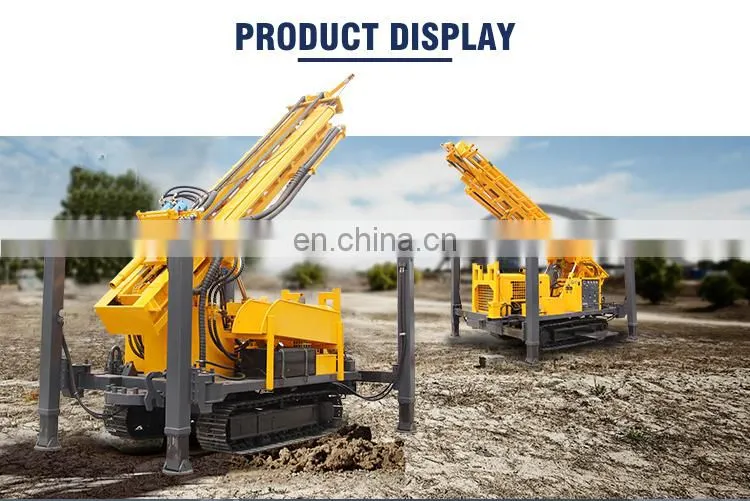

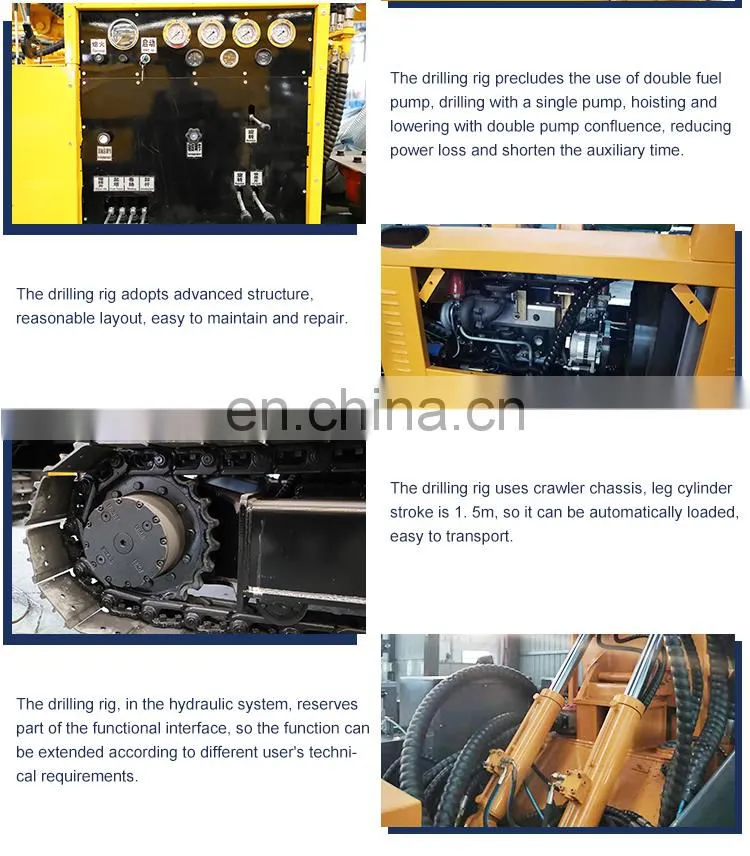

Detailed Images

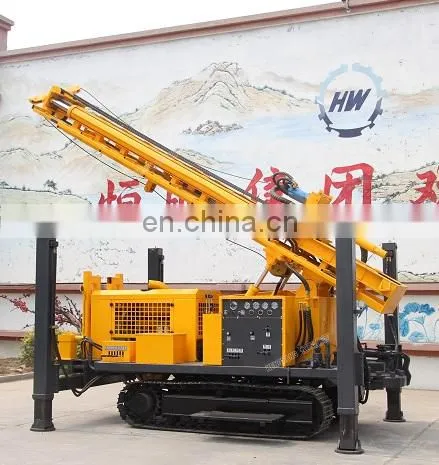

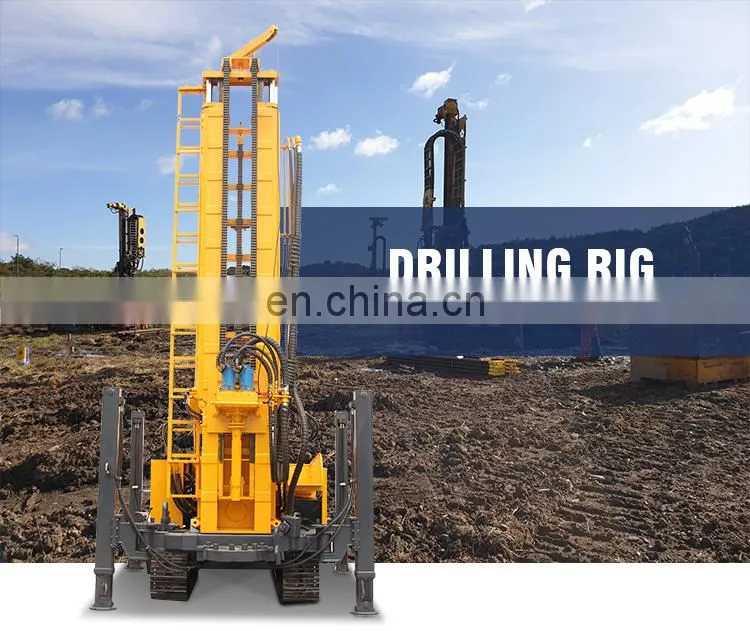

High Quality portable water well drilling rig rock bore drilling machine

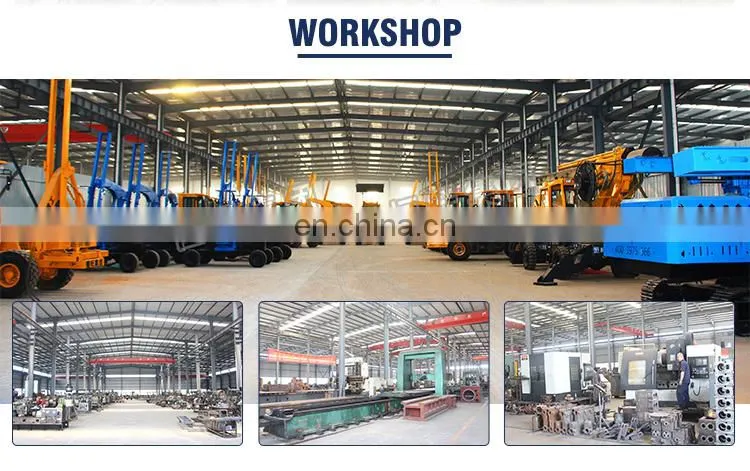

Work shop
230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump
Company Profile
230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump
Certifications
Shandong hengwang group has passed the ISO and CE double certification audit, can be assured to buy all our products...
Shandong hengwang machinery equipment co., LTD. Customers all over the world
Customer exhibition and related photos
Welcome new and old friends at home and abroad to negotiate trade, create great cause, altogether cast brilliant.
The corporate culture of the company is "providing convenient services for customers and creating development opportunities for employees", the management philosophy of the company is "quality is the stepping stone" and the enterprise spirit of "making unremitting efforts to enjoy success".
Packing&Shipping
Shandong hengwang machinery equipment co., LTD. Customers all over the world
The company's business philosophy "quality is the stepping stone" and "enterprise spirit".
FAQ
Welcome to visit hengwang machinery factory, if you need to order products, please contact sales manager Andy. Below is the contact information：
