small deep water well drilling rig for sale in japan
- 1000 per Month
- T/T Credit Card
- Portable Crawler Water well Drilling rig drill machine
- Four types tractor mounted used water well drilling rig geotechnical drill rigs for sale
- HWXY-160L Tractor mounted water well drilling rig ground hole drilling machines
- HengWang Brand Drilling Equipment Water Well Drilling Rig Drilling For Groundwater
- High pressure 200m deep well drilling rig machine price, Borehole core Drilling Machine for Sale
- portable truck mounted water well drilling rig for sale
Product Description
Hengwang Factory can offer you:
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 7 DAYS.
4: NO MOQ , 1PC OK . SMALL ORDER WELCOME..
5: ONLINE PAYMENT.
6: SUPPORT 7 DAYS REFUND.
7: AFTER SALES SERVICES 24/7

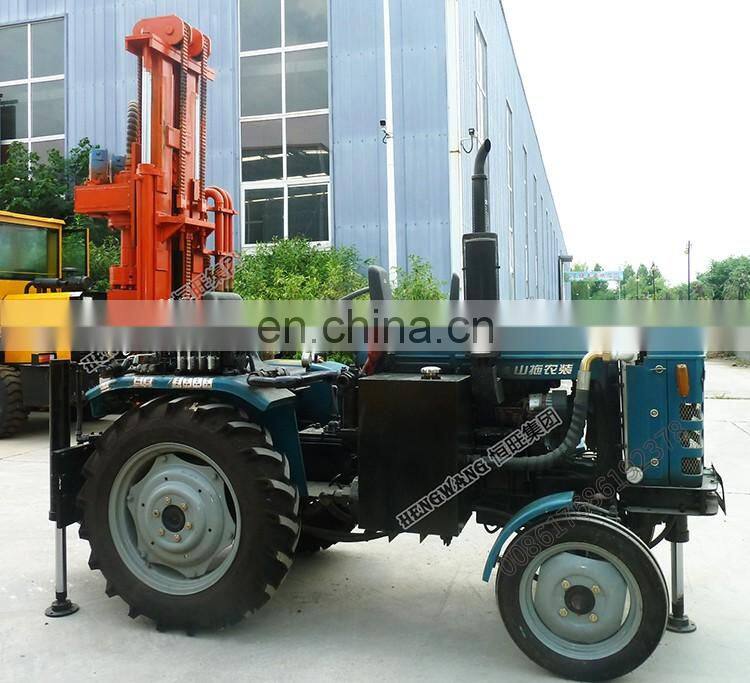

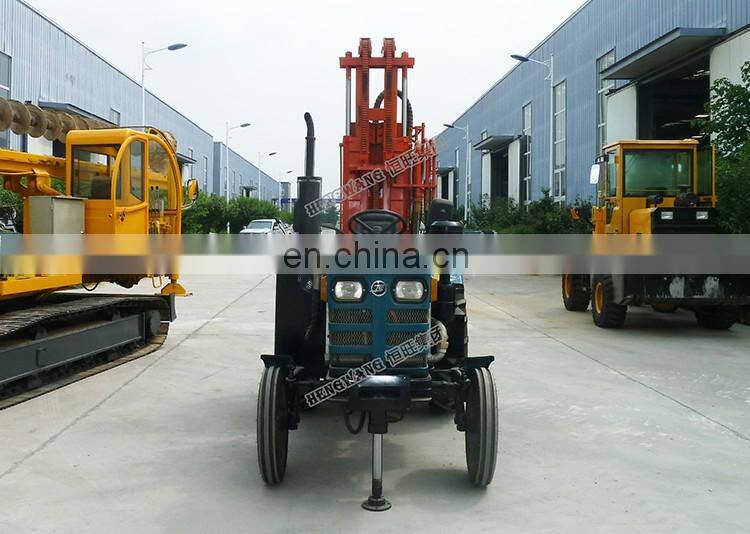

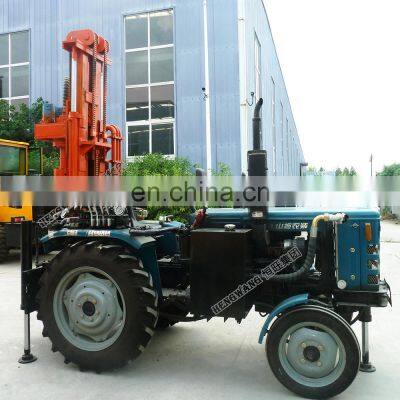

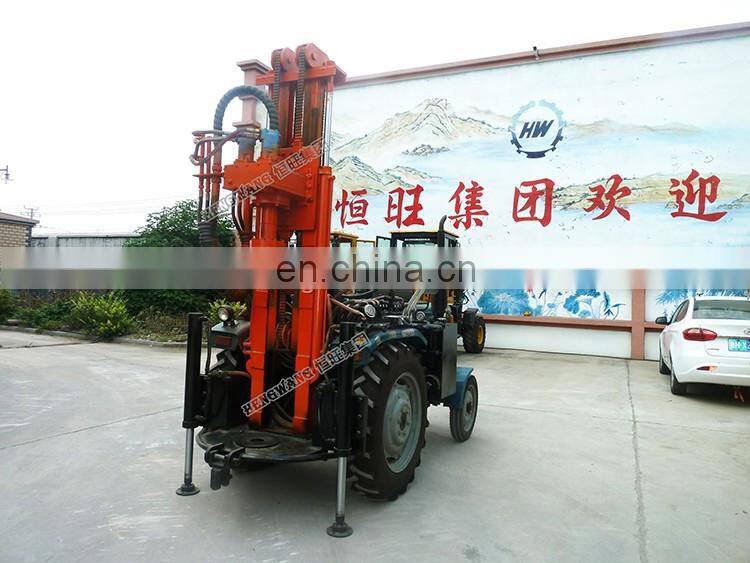

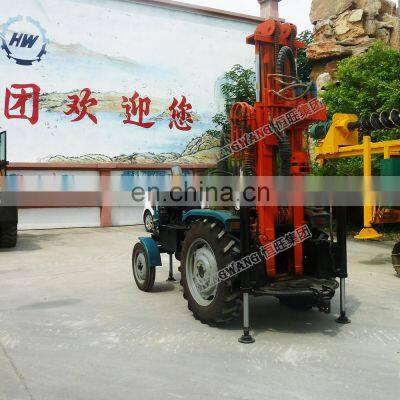

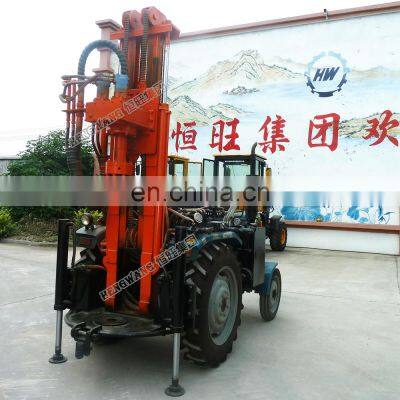

1.Introduction for small deep water well drilling rig :

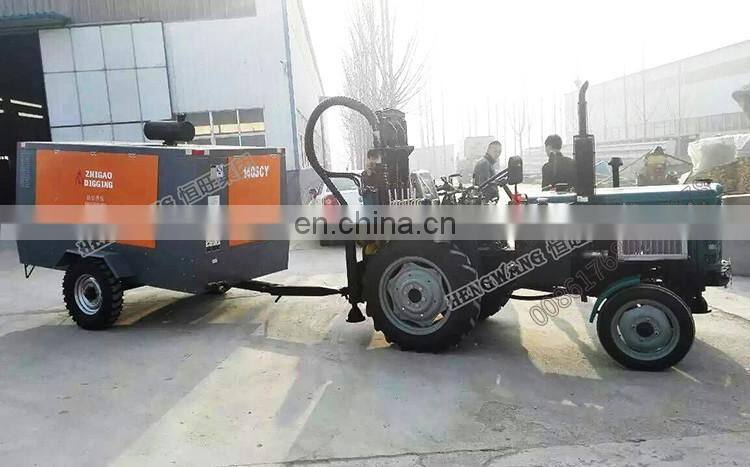

This product is an integrated drilling equipment by combining tractor and pneumatic water well drilling rig,which is easy to walk and combined the air compressor . Make the construction more convenient and efficient.Tractor pneumatic drilling rig with new DTH impact technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi - cylinder engine produced by famous factory provides power for the hydraulic system, two grade air filter and air compressor intake design to prolong the diesel engine service life.
2.Small deep water well drilling rig feature:
Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.
3.Small deep water well drilling rig application:
Tractor pneumatic wells drilling machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.
Technology Parameter Of small deep water well drilling rig | ||||
Model | TQZ150 | TQZ200 | ||
Overall weight | 3.5T | 4.2T | ||
Dimension | 3400*1500*2200 | 3400*1500*2200 | ||
Drilling diameter | 130-219mm | 130-219mm | ||
Drilling depth | 150m | 200m | ||
One-time advance length of the drill | 1500mm | 1500mm | ||
Traveling speed | 30kw/h | 30kw/h | ||
Climbing capacity | 25° | 25° | ||
Minimum ground clearance | 250mm | 250mm | ||
Working Air Pressure | 1.45-2.5mpa | 1.45-2.5mpa | ||
Air consumption | 15-27m3 /min | 15-27m3 /min | ||
Main machine power | 30HP | 40HP | ||
Rotation speed | 38 - 80rpm | 38 - 80rpm | ||
Rotary torque | 3500-4000Nm | 4000-5000Nm |
Small deep water well drilling rig
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport.
3.Can accept oder:Full container cargo load,Less container load .
Small deep water well drilling rig
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to ensure you receive the goods on time.
6.The tracking number will be provided to you once the consignment is shipped.
Shandong Hengwang Group Co.,Ltd
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
Q1. Are you manufacturer or trader?
A: We are manufacturer of drilling rig. Actually, we produce most of the drilling rig in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
