HWXY-160L Tractor mounted water well drilling rig ground hole drilling machines

Name: HWXY-160L Tractor mounted water well drilling rig ground hole drilling machines
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Hydraulic water well drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

Model	HWXY-160	HWXY-230	HWXY-3
Drilling depth	160m	230m	600m
Drilling diameter	75mm-160mm	75-273mm	75mm-325mm
Drill rod diameter	42mm,50mm	42mm,50mm,60mm	50mm,60mm
Drill angle	90-75	90-75	90-75°
Engine power	15kw	18KW	39kw
Machine Dimension	2.40.81.3m	2.70.91.5	2.60.91.75m
Drill mast height	6.5m	6.5M	11m
mud pump flow	95l/min	145l/min	250l/min
Mud pump max. pressure	1.2Mpa	2 mpa	3mpa

Detailed Images

Our company is group company , we manufacture drilling rig , we have many model and type , following you can reference:

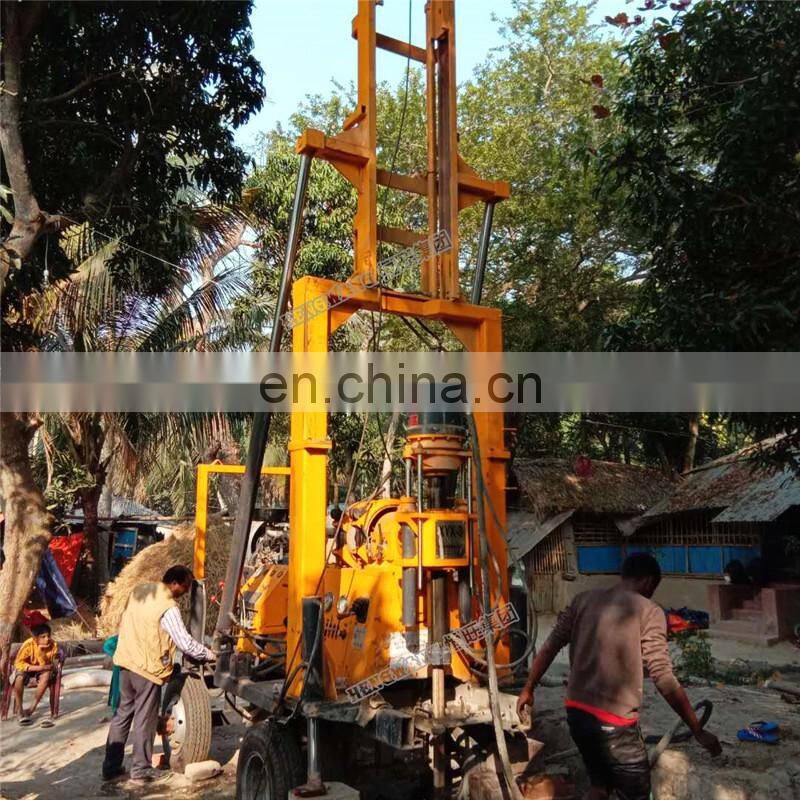

HWXY-160 /230 drilling rig with wheels

160 model and 230 model can add the wheels ,then you can moving easy

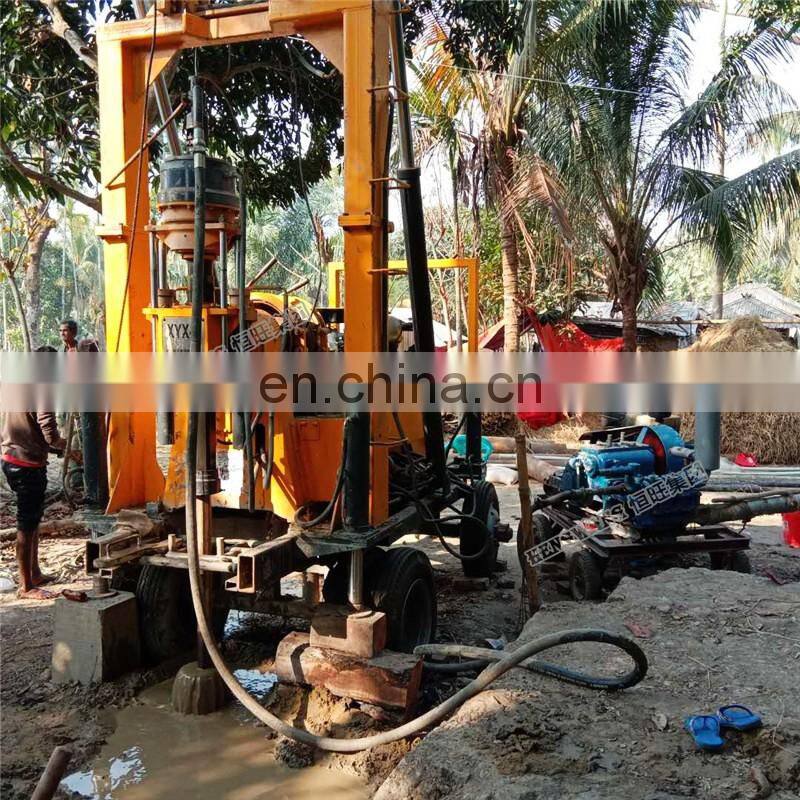

XYX-3 drilling rig with wheels and hydraulic drill mast

This model can drilling 600M ,and moving easy

Truck mounted hydraulic drilling rig

The machine is reasonable in structure , simple in operation, convenient in maintenance and convenient in transportation and no need to lift by crane after it is transported to the site .

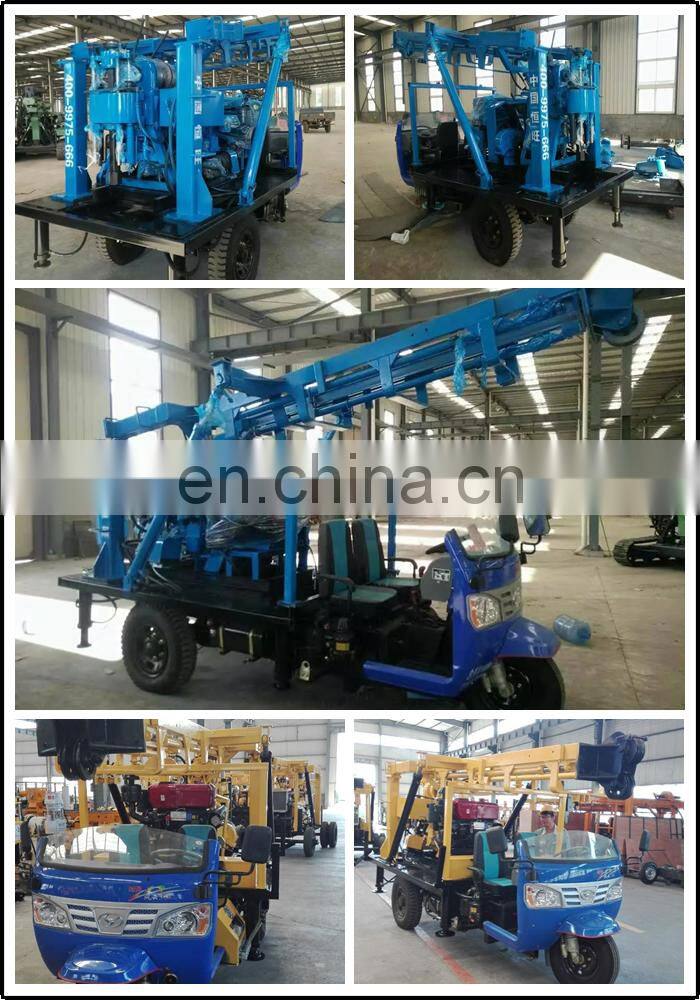

Tricycle water drilling rig

It is suitable for geological survey exploration,basic exploration of roads and high rise buildings ,various structural inspection holes on concrete , river embankments , subgrade grouting hole and direct grouting ,civil water wells and ground temperature central air conditioning.

Crawler hydraulic drilling rig

This drilling rig use the automatic telescopic drilling tower , supported by two high strength cylinder and s set of hydraulic value control the drilling tower up and down .The operation saves of time and labor , safety and reliable ,to create the maximize benefits for users

Spare parts :
