YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer

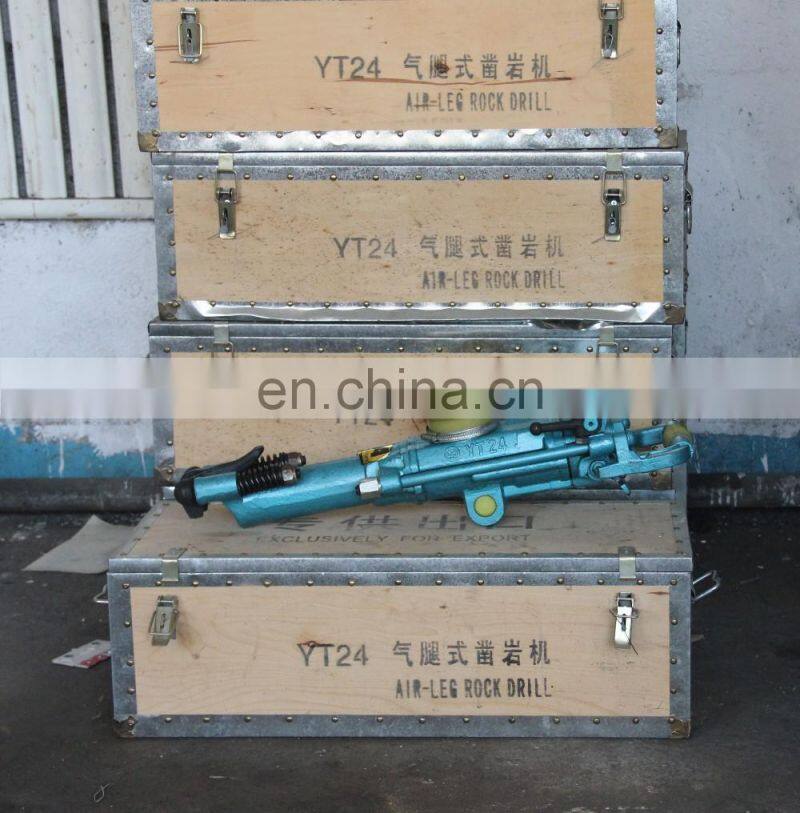

YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer photo-1

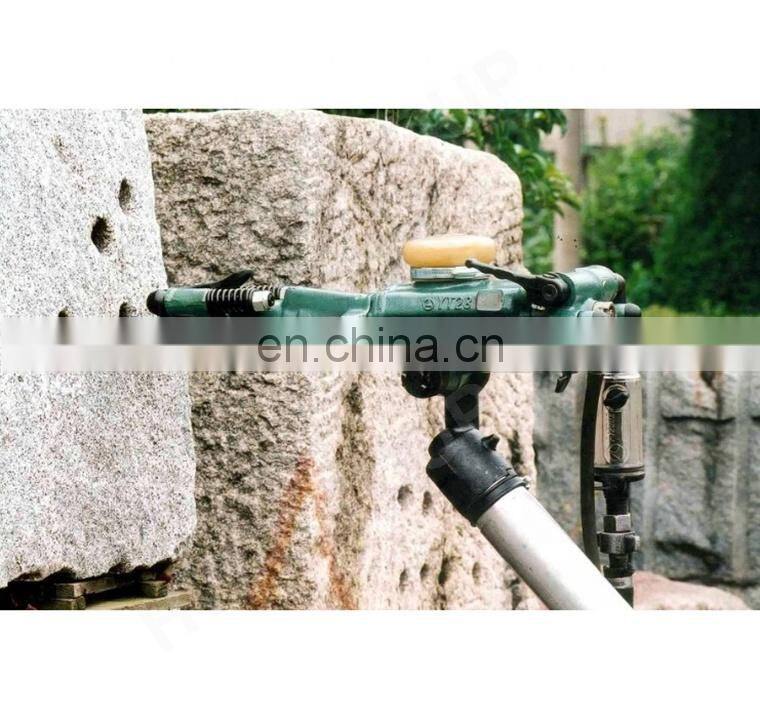

YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer photo-2

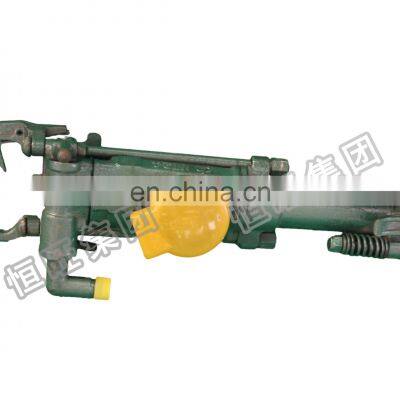

YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer photo-3

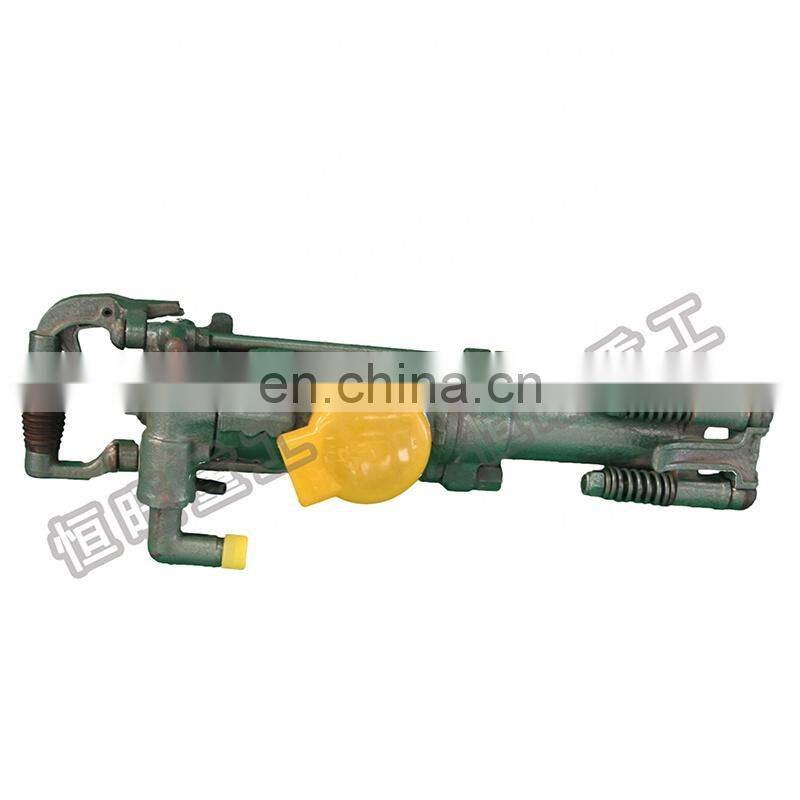

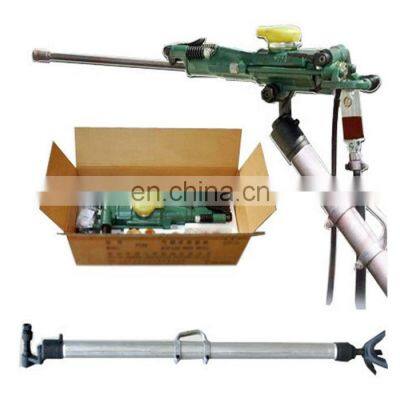

YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer photo-4

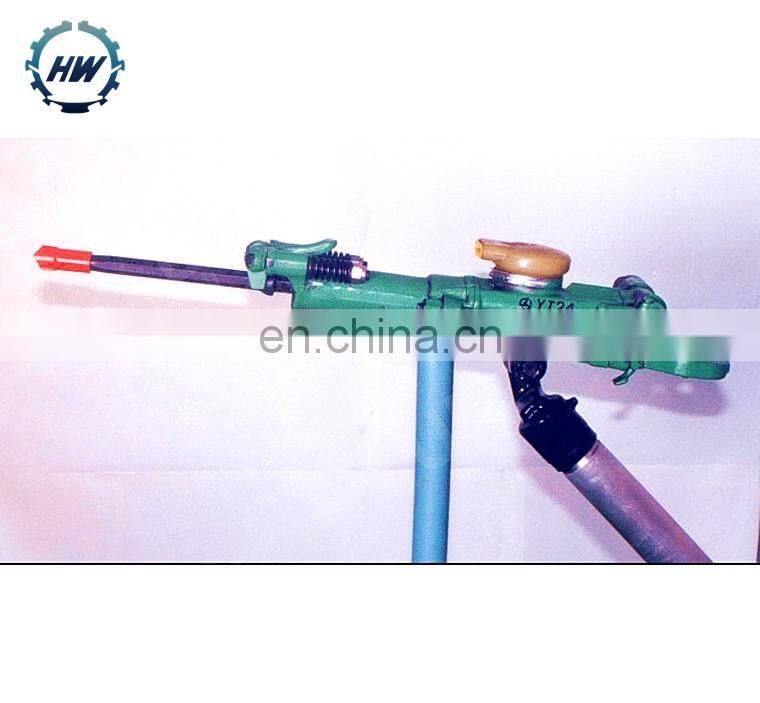

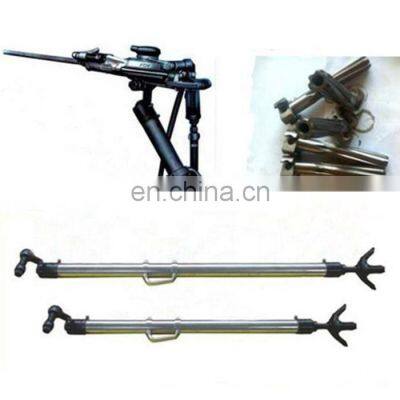

YT24,YT27,YT28 Pneumatic Air Leg Rock Drill/Portable Hydraulic Jack Hammer/air Rock Drill Hammer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

YT28 Rock Drill Machine Application

1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

Safety

a. Ensure that technical safe practices are employed.
b. Pay attention to the position of steel wire ring clamp, if found it fray,change it.
c. Check steel wire ring clamp whether or not abrase, if so, change another at once.
d. Do not allow use low burning point and easy explosion lubricating oil.

SPECIFICATIONS FOR YT Series Pneumatic Rock Drilling Machine with Air Leg
Model
YT24
YT27
YT28
Weight
24kgs
27kgs
26kgs
Length
678mm
668mm
661mm
Air pressure
0.4-0.63Mpa
0.4-0.63Mpa
0.4-0.63Mpa
Impact frequency
≧31HZ
≧39HZ
≧37HZ
Air consumption
≦67L/s
≦86L/s
≦81L/s
Impact energy
≧65J
≧75
≧70
Cylinder*stroke
70mm*70mm
80mm*60mm
80mm*60mm
Air pipe diameter
19mm
19mm
25mm
Shank dimension
22*108mm
22*108mm
22*108mm
Drilling depth
5m
5m
5m
Bit diameter
34-42mm
34-45mm
34-42mm
Detailed Images

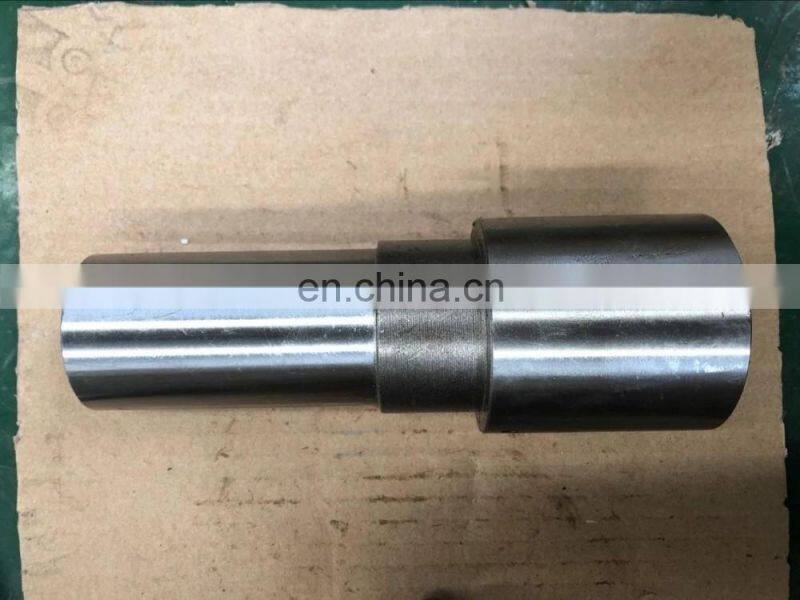

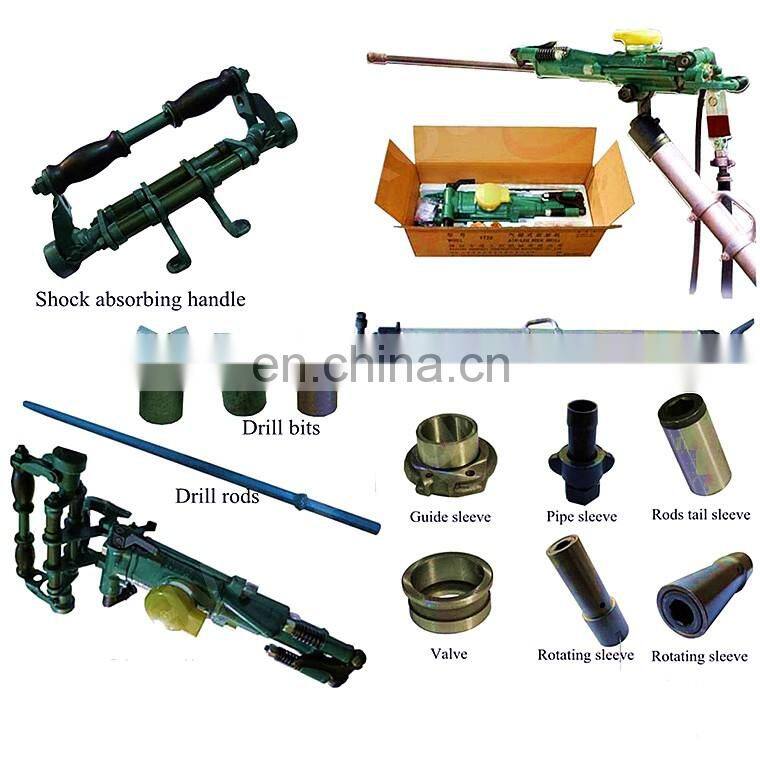

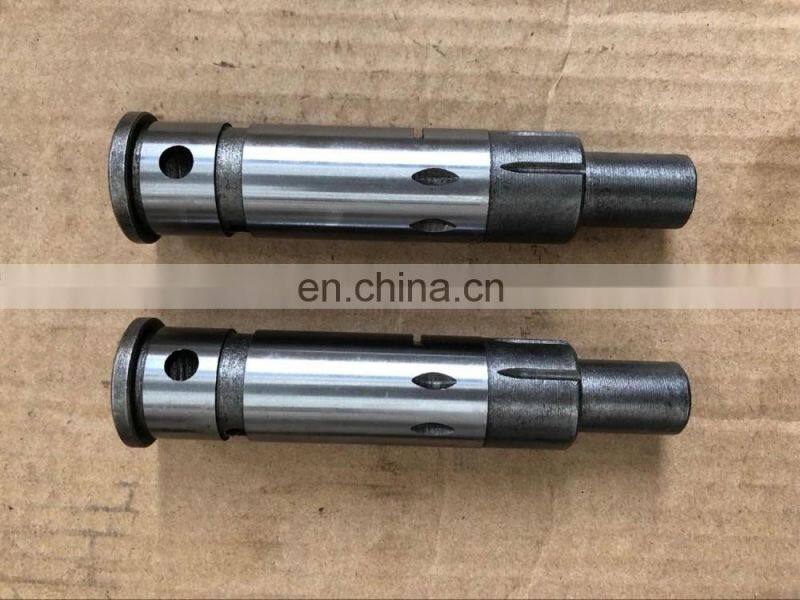

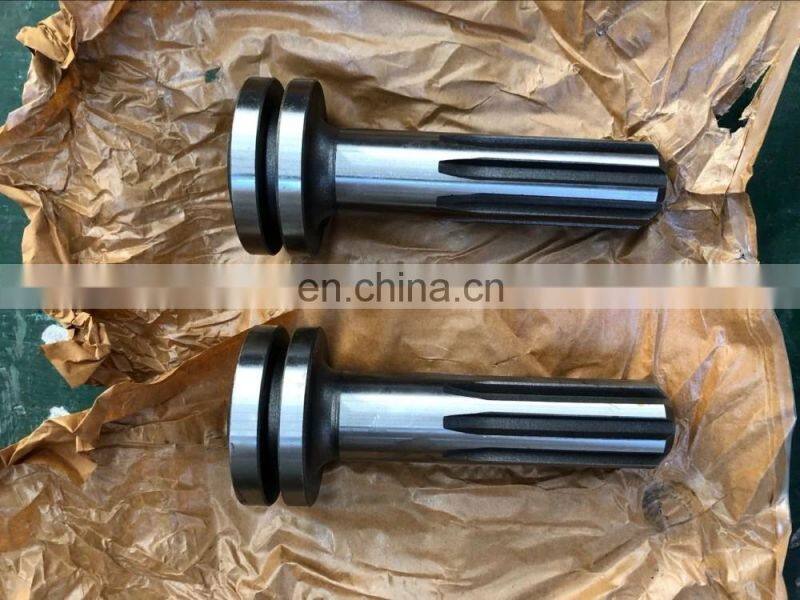

Machine Parts

Name: YT types

Brand: HW

Original: Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

Main Features

Name: YT types
Brand: HW
Original:
Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

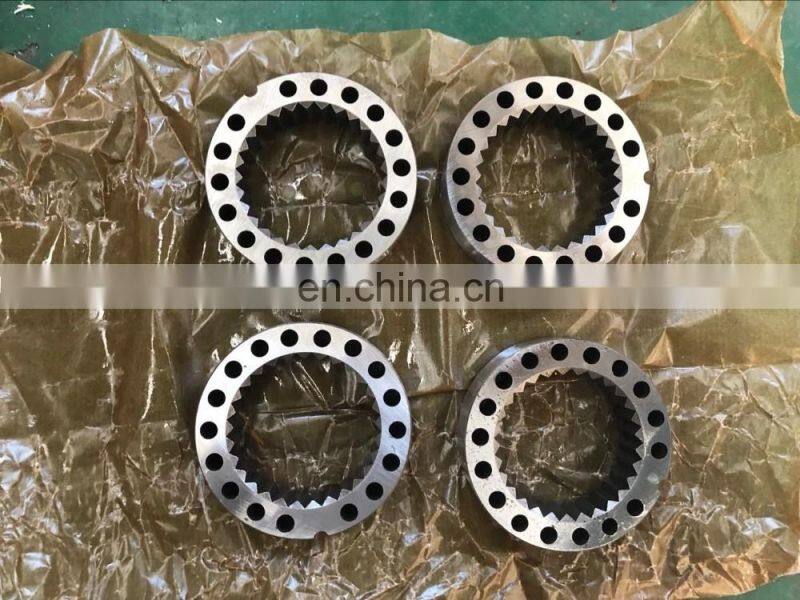

Machine Parts

Name: YT types
Brand: HW
Original:
Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

Main Features

Name: YT types
Brand: HW
Original:
Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

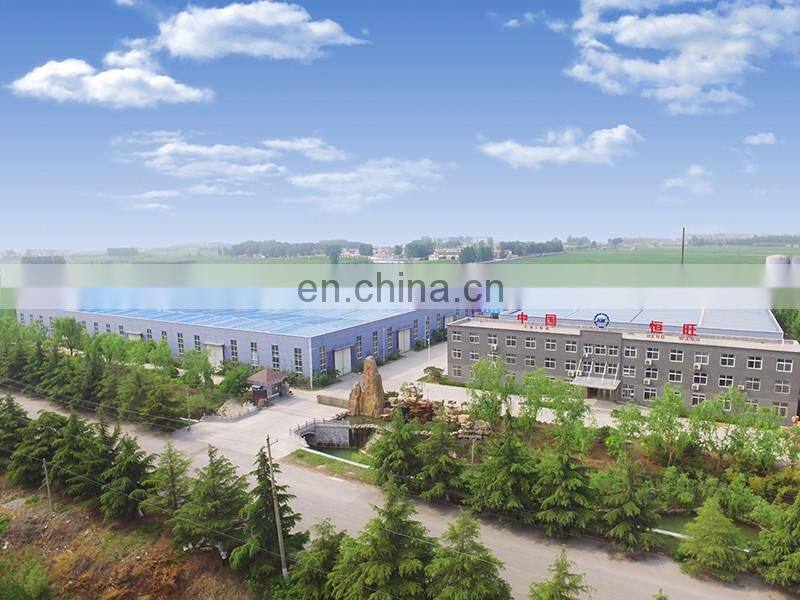

Our Company
