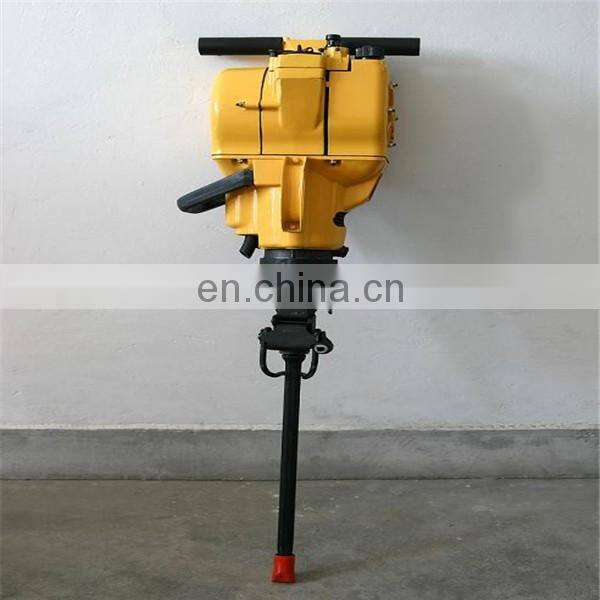

Yn27 Internal Combustion Type Rock Drill photo-1

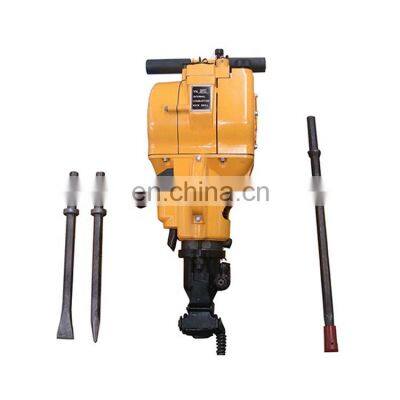

Yn27 Internal Combustion Type Rock Drill photo-2
Yn27 Internal Combustion Type Rock Drill photo-3

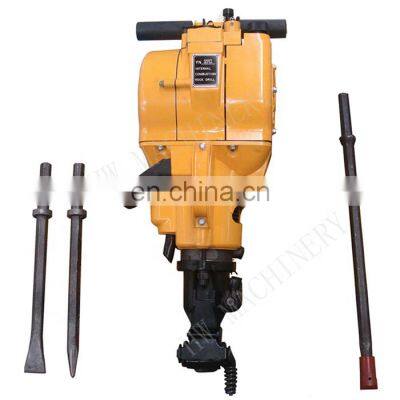

Yn27 Internal Combustion Type Rock Drill photo-4

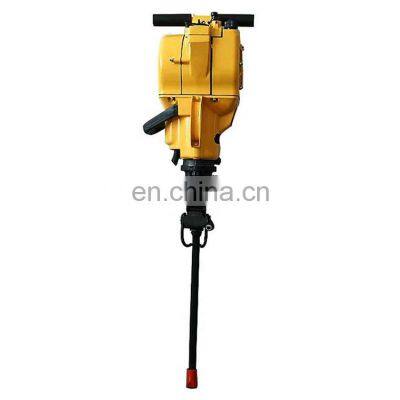

Yn27 Internal Combustion Type Rock Drill photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling

Contact for more models and prices
YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.
Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

SPECIFICATIONS FOR YN27C PETROL ROCK DRILL
Model
YN27C
Weight
27kg
Dimension
746*315*229mm
Function
Drilling
Type of carburetor
Hand needle valve, no floating type
Diameter of engine piston
Φ58mm
Stroke of engine piston
70mm
Rotating speed of engine
≥2450R/min
Rotating speed of drilling rod
≥250R/min
Oil consumption
≤0.12L/min
Max. drilling depth
6m
Tank capacity
≥1.14 L
Shank size
Hex22x108mm
Mixture ratio of gasoline and lubrication oil
0.500694444
Our Company

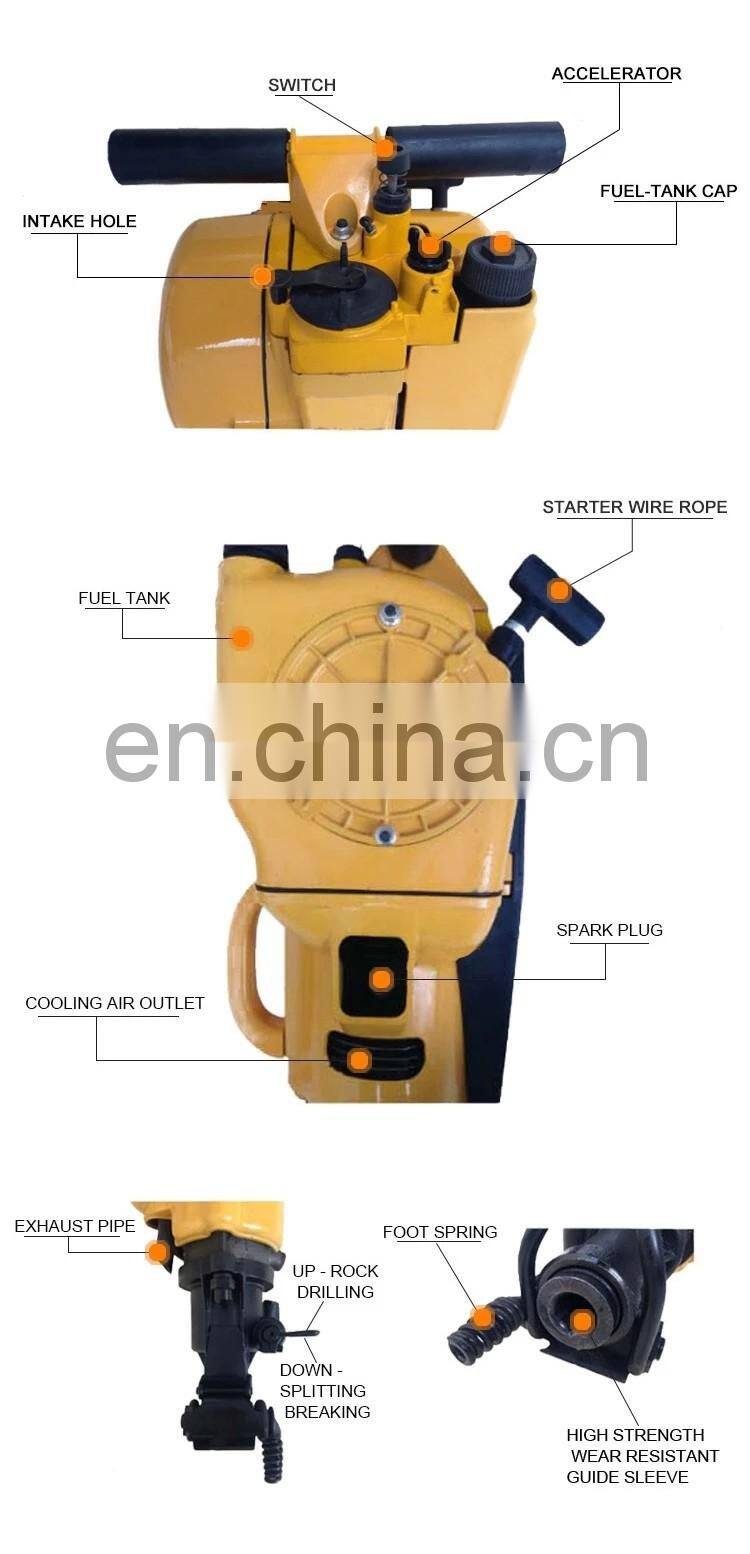

Detailed Images
Our Customer

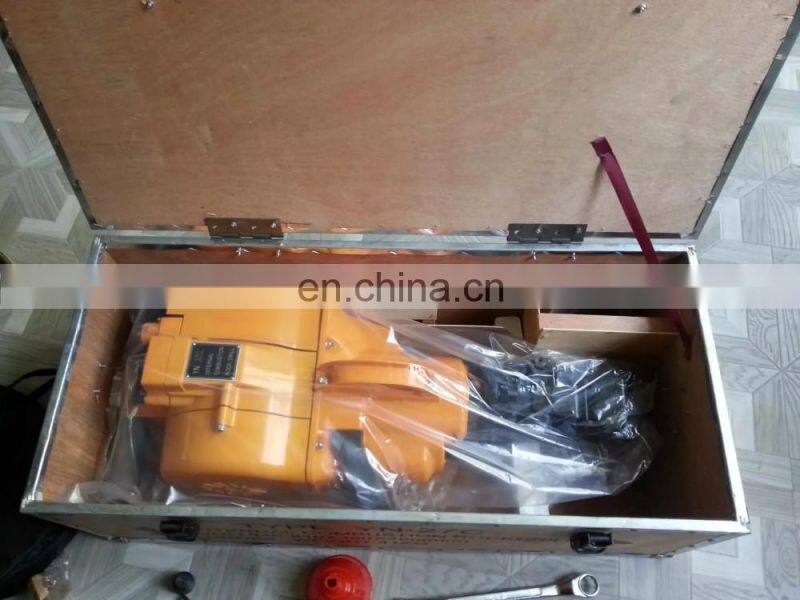

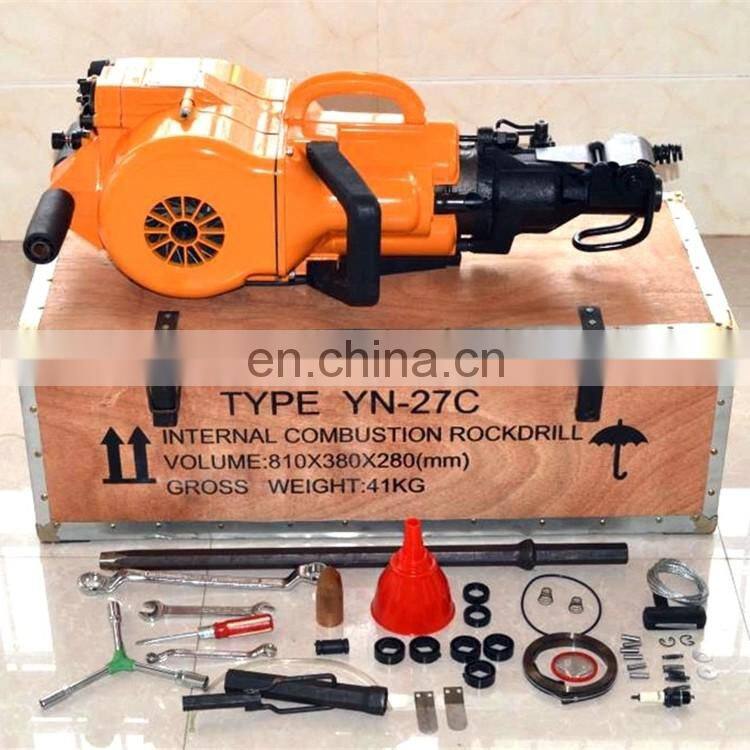

Packing & Delivery
