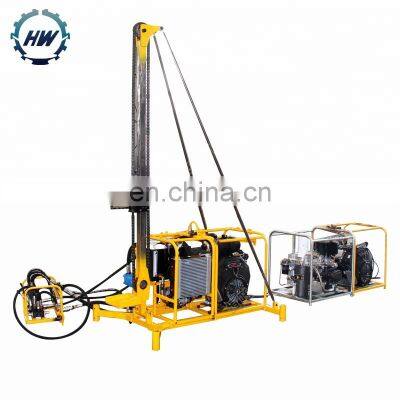

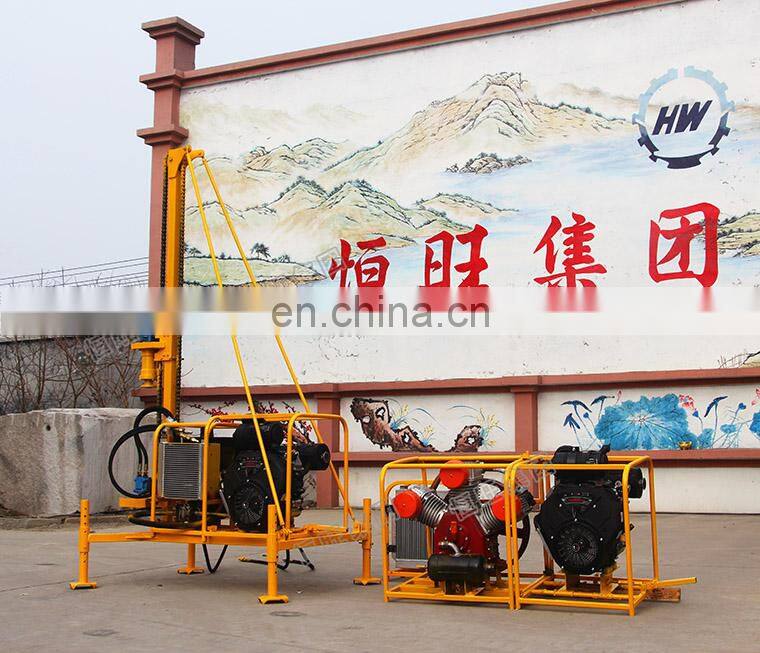

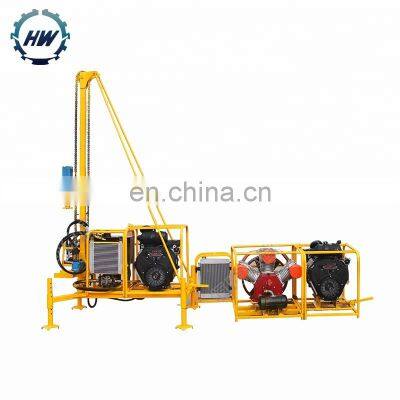

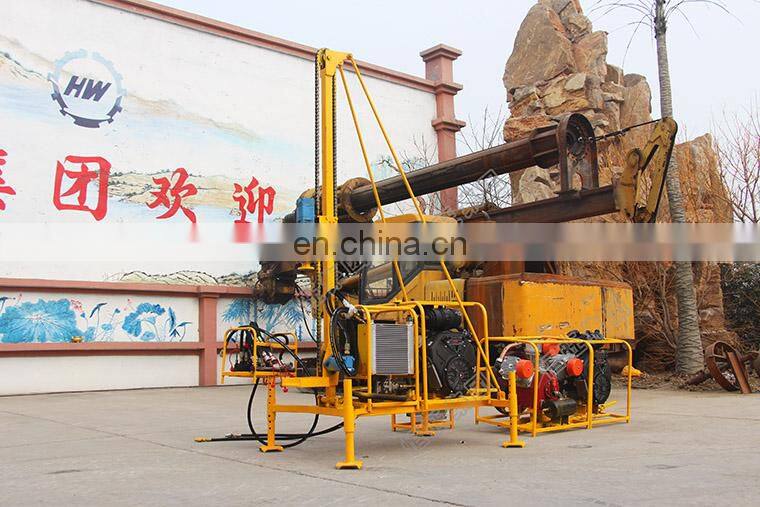

Help CenterSmall Mini Bore Well Portable Drill Machine Price
Related Products
-
Portable Backpack Core Sample Drilling Rig for SaleNegotiableMOQ: 1 -
Drilling Tool for Exploration and Development of Oil and Natural Gas ResourcesNegotiableMOQ: 1
-
Pneumatic Mountainous Area Seismic Shot Hole Man Portable Drilling RigNegotiableMOQ: 1
-
Portable Rock Drilling Rig Machine With Screw-type Air Compressor for SaleNegotiableMOQ: 1
-
Low Price Underground Deep Rock Borehole Drilling Machine /water Well Rotary Drilling Rig for SaleNegotiableMOQ: 1
Using different media, drilling rig can achieve different drilling methods, such as mud drilling, air drilling, air hammer drilling and so on, and adapt to different stratum environment. Drilling mud can reach a depth of 30 meters, while air drilling or air hammer drilling can reach a depth of 20-30 meters.
The main parts include assembling drawworks, winches, gearboxes, revolving, pulleys, powertrain, and different configurations, such as mud drilling, air hammer drilling and air drilling.
Drive gear box, easy to operate and repair, low labor intensity. On the basis of the drilling engine, it is easy to move and drill. The self-help winch can improve the drill rod and drill. The man pulled down.
A 26 HP diesel engine or a 26 HP gasoline engine provides a power rig. The engine adopts the method of stepless speed regulation. So it is unnecessary to stop or start the engine often in drilling. The performance is good, the efficiency is high, the labor intensity is low. The rig meets the safety requirements.
| Model | HW600 | |
| Drilling depth | 30-60m | |
| Drilling method | Air shock drilling | |
| Spiral drilling and mud drilling (alternative) | ||
| Borehole diameter | Air shock drilling(mm) |
Lithostratigraphy70-90 Loose stratum75-95 |
| Mud drilling(mm) | 75-90 | |
| Drill pipe(Diameter× length) | Air shock drilling(mm) | ∅60×1500 |
| Mud drilling(mm) | ||
| Power head | Rated torque(N.m) | 800-900 |
| Drilling speed range(r/min) | 0-135 | |
| Drilling machine pressure and lifting function | Feed pressure(N) | 5500-6000 |
| Lifting force of drilling tools(KN) | 12-16 | |
| Maximum lifting speed of drill tools(m/s) | 0.71-0.81 | |
| Engine power (kw) | 20/3600 | |
| Hydraulic system | Flow(L/min) | 0-60 |
| Working pressure(Mpa) | 20 | |
| Air compressor unit | Model / configuration number | Fuel injection screw type/a set |
| Air volume(m3/min) | 3.8 | |
| Working pressure(Mpa) | 0.8 | |
| Engine power(kw)/Drilling speed(r/min) | 26/3600 | |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
KQD150 Air DTH water well bore hole drilling rig DTH portable borehole water well drilling machine rigs
